Logitech Tap Rally Bar Bundle - Zoom video conferencing system Ethernet LAN Group video conferencing system
- Video Input: Digital video camera - SuperSpeed USB 3.0
- Power: AC 120/230 V
Product Specification
Box Content
Documents
Overview

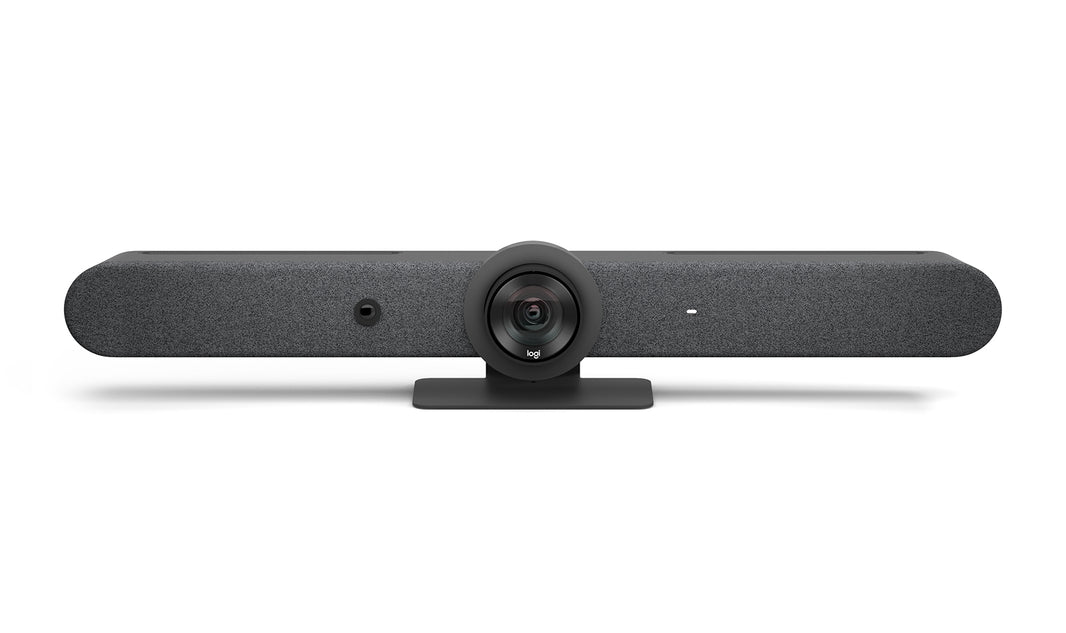

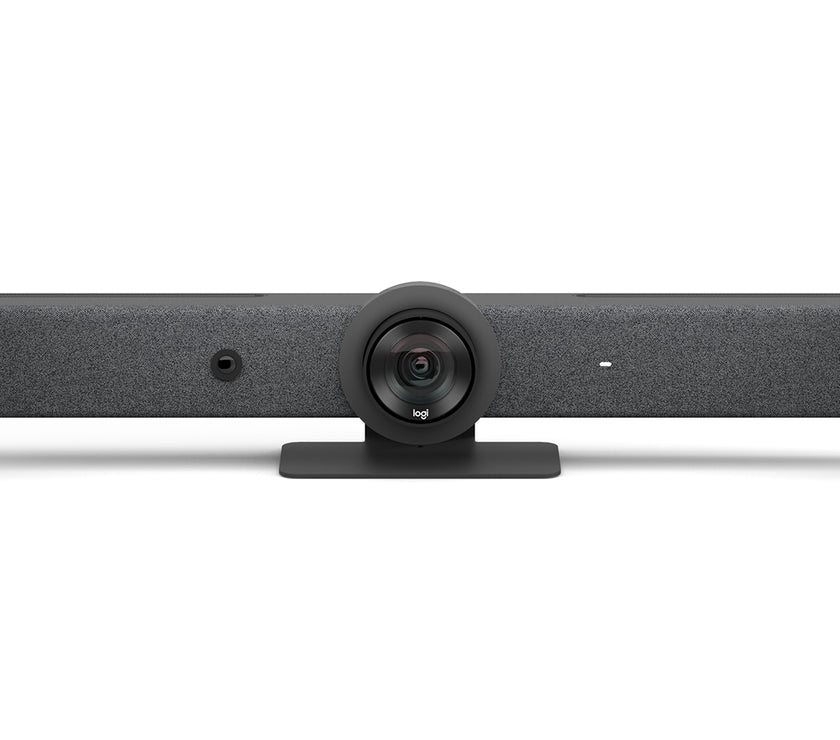

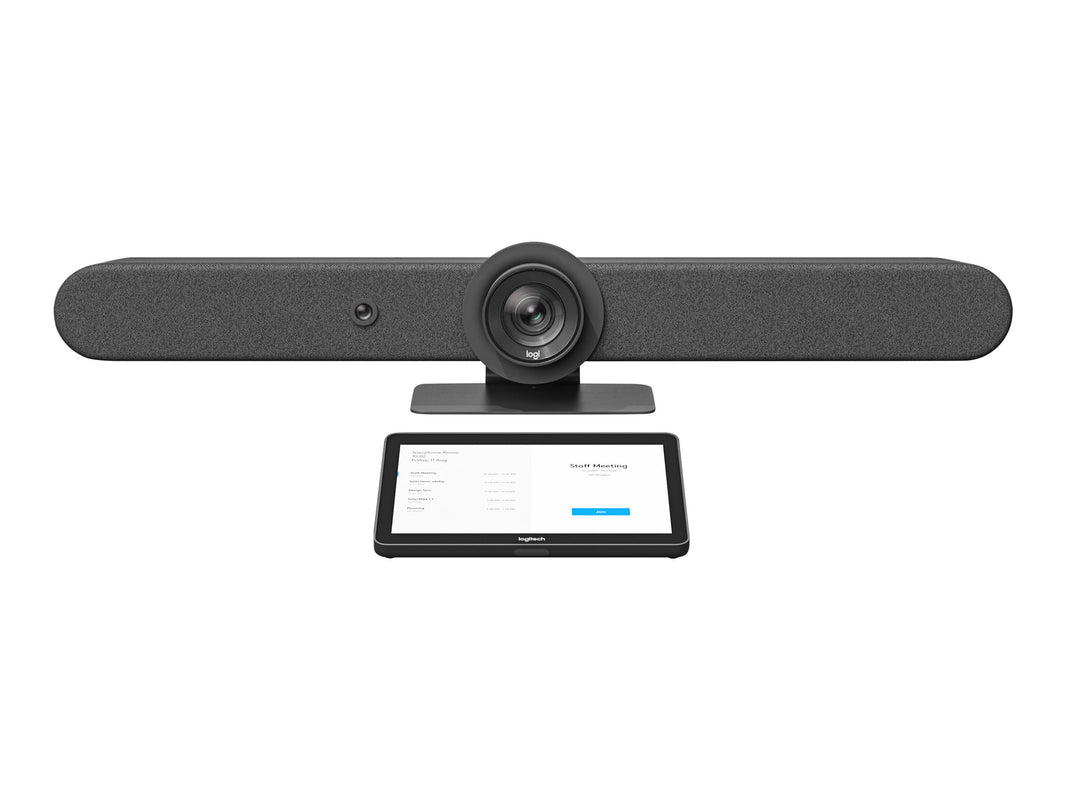

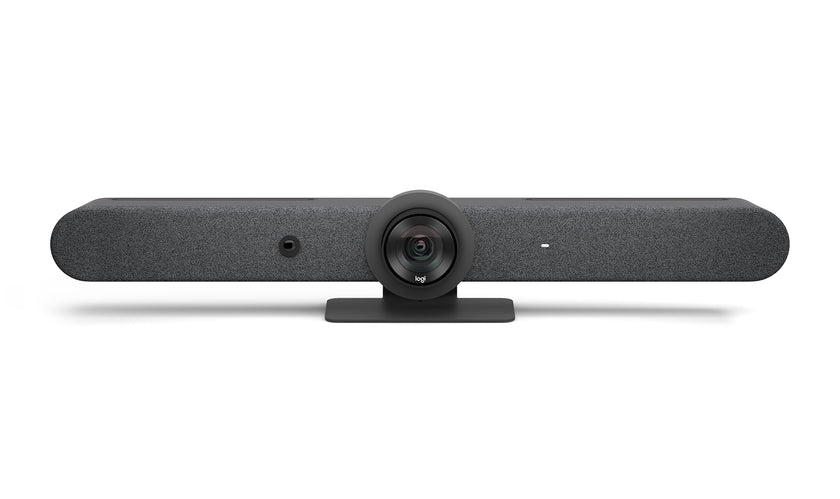

Add video conferencing to any mid-size meeting room with this universal video conferencing appliance kit featuring the all-in-one Logitech Rally Bar and Logitech Tap touch controller. Certified for and/or compatible with Zoom Rooms Appliance, GoToRoom, Pexip Room, and RingCentral Rooms. Rally Bar with motorized PTZ 4K camera with 15x HD zoom. Total Room Coverage: 132.1° Horizontal x 82.2° Vertical. AI viewfinder with RightSight auto-framing and people count. Dual speakers and beamforming mic array with 4.5m / 15 ft range. Integrated cable management with strain relief and retention. Available mounts and expansion mic pods for custom installation. Logitech Tap 10.1" touch controller. Monitor, manage, and get business insights with Logitech Sync.
Technical Features
- Audio
- Microphone pick-up range: 4.5 m
- Output voltage Total Harmonic Distortion (THD): 2%
- Output level: 90/99 dB
- Built-in speaker(s): Yes
- Camera
- Remote control interface: Bluetooth
- Horizontal field of view: 82.1°
- Field of view (FOV) angle: 90°
- Digital zoom: 3x
- Optical zoom: 5x
- Display
- Touchscreen: Yes
- Display resolution: 1280 x 800 pixels
- Display diagonal: 25.6 cm (10.1")
- Built-in display: Yes
- Type
- Video Conferencing Systems
- Interface module
- Ethernet LAN (RJ-45) ports: 1
- HDMI output ports quantity: 2
- HDMI input ports quantity: 1
- HDMI ports quantity: 3
- Logistics data
- Harmonized System (HS) code: 85176990
- Microphone
- Number of microphones: 6
- Sound pressure level (max): 90 dB
- Microphone frequency: 90 - 16000 Hz
- Microphone sensitivity: -36 dB
- Network
- Security algorithms: 128-bit AES
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Wi-Fi: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Ethernet LAN: Yes
- Networking
- Security algorithms: 128-bit AES
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
- Wi-Fi: Yes
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Ethernet LAN: Yes
- Operational conditions
- Heat dissipation: 64 BTU/h
- Operating relative humidity (H-H): 10 - 95%
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Performance
- PTZ control: Yes
- Tilt angle range: -15 - 15°
- Pan range: -25 - 25°
- Product colour: Black, Graphite
- Product type: Group video conferencing system
- Ports & interfaces
- Microphone in: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Power
- DC input voltage: 19 V
- Current: 4.754 A
- AC input voltage: 100 - 240 V
- Video
- Maximum frame rate: 30 fps
- Supported video modes: 720p, 900p, 1440p, 2160p
- HD type: 4K Ultra HD
- Weight & dimensions
- Camera weight: 7.08 kg
- Camera dimensions (W x D x H): 910 x 160 x 164 mm
- Interface module weight: 1.25 kg
- Interface module dimensions (W x D x H): 244 x 179 x 58 mm
