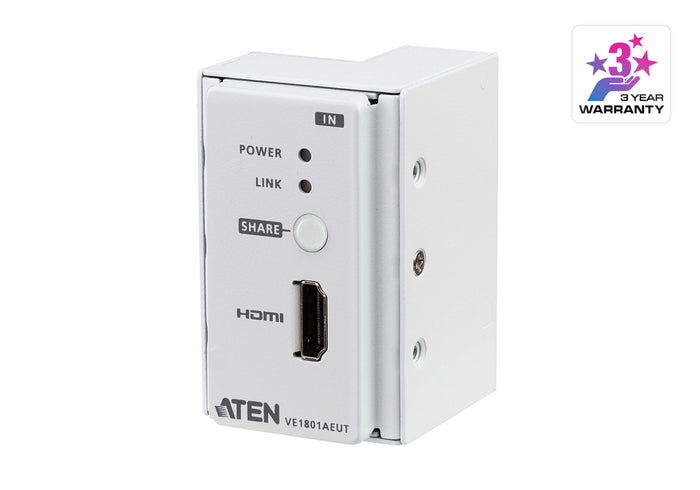

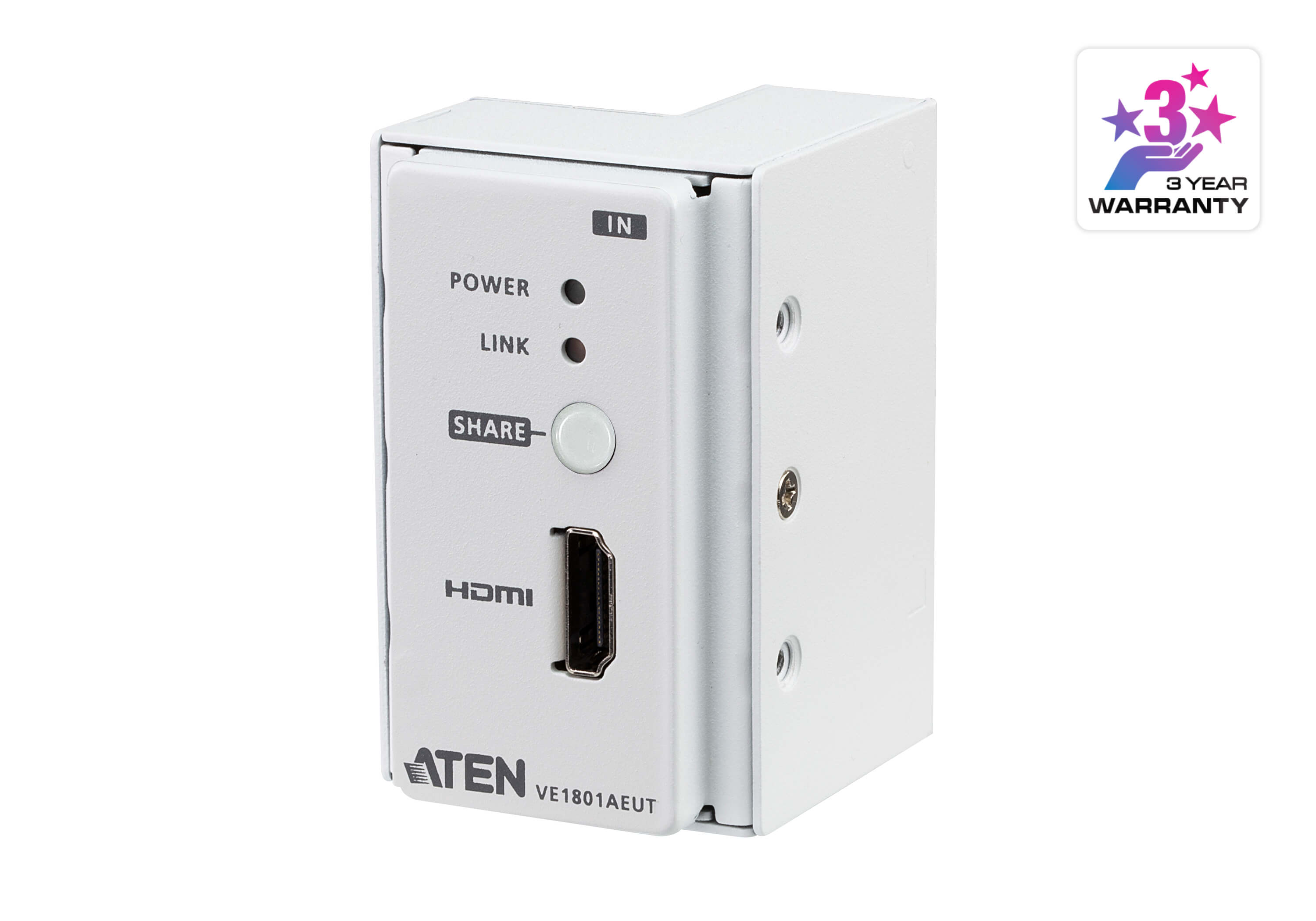

ATEN HDMI HDBT Wallplate with PoH

Name: ATEN HDMI HDBT Wallplate with PoH
Brand: ATEN
SKU: VE1801AEUT
Price: 264.18 GBP
Availability: InStock

£264.18 GBP

£264.18 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

HDMI Over HDBaseT — Neat Wall Install

In stock, 3 units

EAN: 4710469340567

SKU: VE1801AEUT

Vendor: ATEN

Order within xx hours for delivery on

Product Specification

Extends HDMI signals over a single Cat5e/6/6a cable using HDBaseT‑Lite technology
Supports 4K up to 40 m and 1080p up to 70 m transmission
Built‑in PoH (Power over HDBaseT) eliminates extra power cables
HDBaseT Anti‑jamming for stable long‑distance video transmission
Mounts cleanly in a 1‑gang EU wall plate for neat installations
Supports RS‑232 and HDMI CEC for control signal transmission
Share function for remote source switching with compatible receivers
LED status indicators and ESD protection for reliable operation
Plug‑and‑play setup with no complex configuration required

Box Content

1 x ATEN VE1801AEUT HDMI HDBaseT‑Lite Transmitter with EU Wall Plate / PoH
1 x 5‑pin Terminal Block
1 x Rubber Pad Set (4 pcs)
1 x Faceplate
2 x Pan Head Screws
4 x PF Screws
1 x Power Adapter
1 x User Instructions / Quick Guide

Documents

Datasheet

Technical Features

Brand: ATEN
Model: VE1801AEUT
Product Type: HDMI to HDBaseT‑Lite Transmitter
Video Input: 1 x HDMI Type‑A Female
HDBaseT Output: 1 x RJ‑45 Female
Max Resolution / Distance: 4K up to 40 m (Cat 5e/6/6a), 1080p up to 70 m
Supported HDMI Formats: 3D, Deep Color, HDCP 2.2
Max Data Rate: 10.2 Gbps (3.4 Gbps per lane)
Max Pixel Clock: 340 MHz
Control: RS‑232 Terminal Block
CEC Support: Yes
PoH (Power over HDBaseT): Yes, powered by compatible HDBaseT receiver
Anti‑jamming: HDBaseT Anti‑jamming Technology
ESD Protection: 8 KV / 15 KV
Operating Temp: 0 °C – 40 °C
Storage Temp: ‑20 °C – 60 °C
Humidity: 0 % – 80 % RH
Housing: Metal
Form Factor: EU Wall Plate (1‑gang)

ATEN HDMI HDBT Wallplate with PoH

£264.18 GBP

£264.18 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The ATEN VE1801AEUT HDMI HDBaseT‑Lite Transmitter enables long‑distance distribution of HDMI signals using HDBaseT technology, simplifying AV infrastructure by using a single Cat5e/6/6a cable for video, audio, control, and power. It supports 4K up to 40 m and Full HD up to 70 m, with HDMI formats including 3D, deep color, and embedded lossless audio.

Its EU wall plate design integrates cleanly into junction boxes, hiding cables and contributing to streamlined installations. Additional features include RS‑232 control support, HDMI CEC compatibility, signal source sharing with compatible receivers (e.g., ATEN VP1421), ESD protection, LED status indicators, and plug‑and‑play setup.
