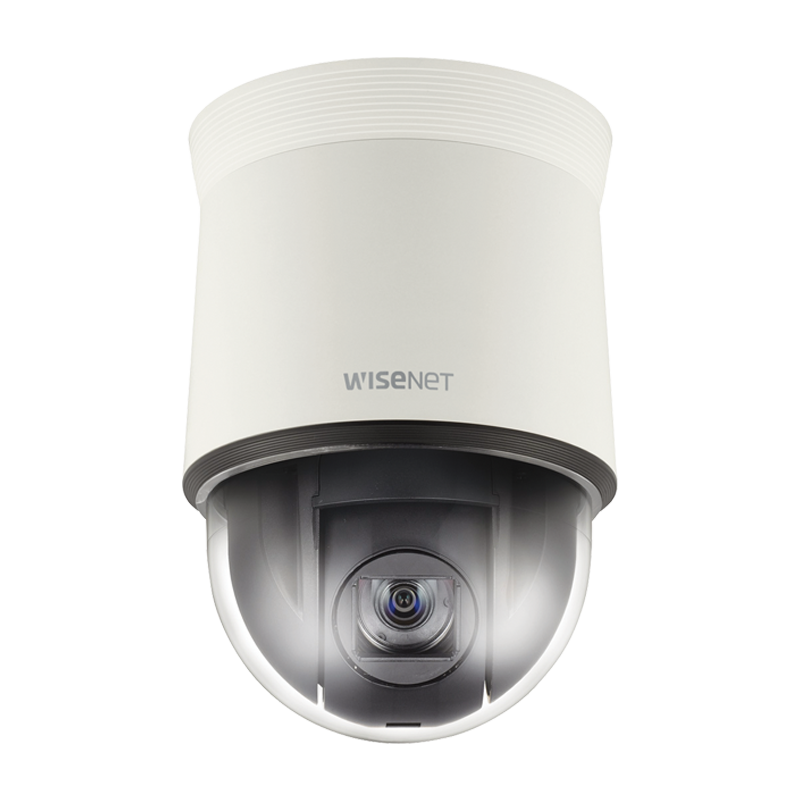

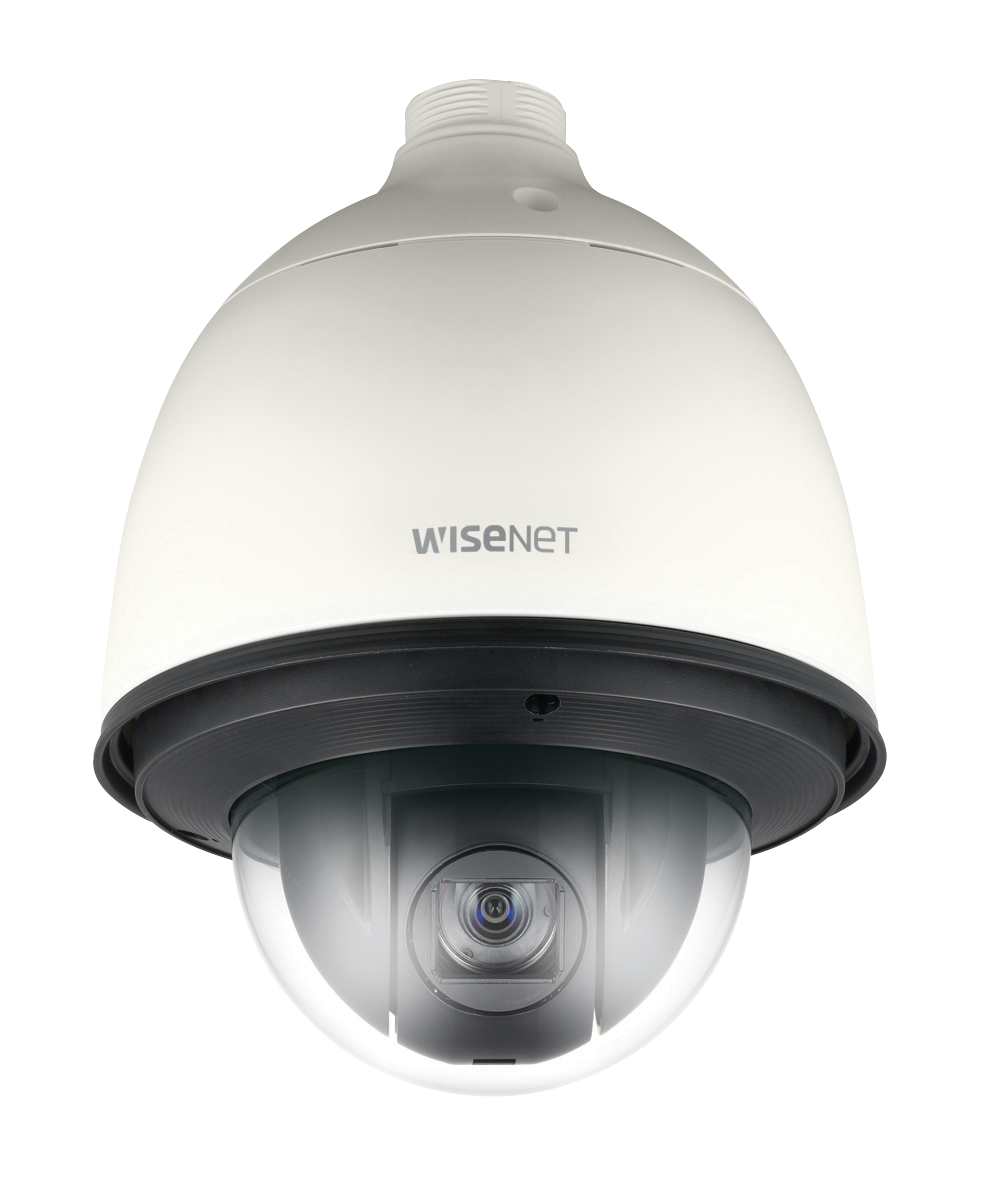

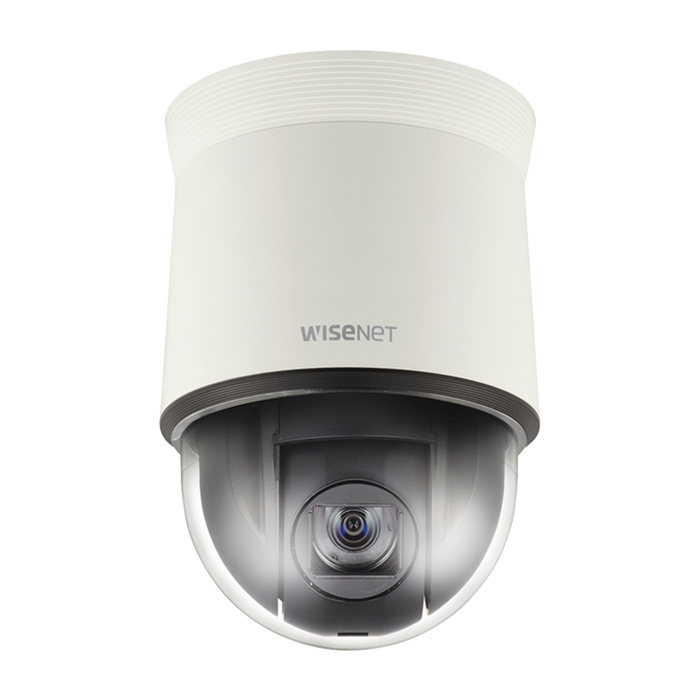

HANWHA VISION HCP-6320A INTERNAL AHD PTZ

HANWHA VISION HCP-6320A INTERNAL AHD PTZ

£760.03 GBP
Sale price: £760.03 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Powerful PTZ clarity always
In stock, 26 units
EAN: 8801089148445
SKU: HCP-6320A
Vendor: HANWHA VISION
Order within xx hours for delivery on
Quantity
  • Image Sensor: 1/2.8" 2.38MP CMOS
  • Resolution: 1920×1080 (Full HD)
  • Frame Rate: Up to 30 fps
  • Minimum Illumination: Color 0.2 Lux, B/W 0.01 Lux
  • Optical Zoom: 32× (4.44 ~ 142.6 mm)
  • Digital Zoom: 16×
  • Lens Type: Motorized varifocal, DC Auto Iris
  • PTZ Range: Pan 360° endless, Tilt ‑15°~195°
  • PTZ Speed: Preset 700°/sec, Manual up to 200°/sec
  • Video Output: AHD & CVBS
  • Control: RS‑485 & Coax (ACP)
  • Imaging Enhancements: ICR Day/Night, WDR 120 dB, Defog, SSNRIII
  • Analytics: Motion detection, privacy masking
  • Power: 24 VAC
  • Compliance: IK10 (impact resistance)
  • Hanwha Vision HCP‑6320A AHD PTZ Camera
  • Data Sheet
  • Mounting screws and hardware
  • Coaxial control cable (if included by dealer)
  • Warranty card

Data Sheet

Overview

The Hanwha Vision HCP‑6320A is a rugged analog PTZ dome camera designed for professional surveillance applications. It offers Full HD (1920 × 1080) resolution at 30 fps with exceptional low‑light sensitivity and a motorized 32× optical zoom lens, enabling detailed monitoring at long distances. Built‑in features like true Day/Night (ICR), Wide Dynamic Range (120 dB), digital noise reduction (SSNRIII), and defog support enhance visibility in challenging lighting conditions. The camera supports coaxial PTZ control (RS‑485/Coax) and includes advanced analytics such as motion detection and privacy masking. Its robust mechanical design makes it suitable for demanding indoor installations.

Technical Features
  • Full HD 1080p AHD video for crisp surveillance
  • High‑performance 32× optical zoom for detailed long‑range viewing
  • True Day/Night (ICR) with low‑light performance
  • Advanced imaging enhancements (WDR, Defog, SSNRIII)
  • PTZ control via RS‑485 or coaxial protocol
  • Preset and manual PTZ movement with fast response
  • Built‑in motion detection and privacy masking analytics
  • Robust construction with IK10 impact resistance
