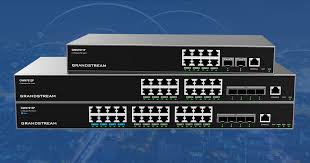

GWN7813P 24PORT L3 PSE SWITCH 24 X POE, 4 X SFP

GWN7813P 24PORT L3 PSE SWITCH 24 X POE, 4 X SFP

£372.24 GBP
Sale price: £372.24 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Ports: 24× Gigabit Ethernet ports
  • Security Features: DoS Protection
In stock, 6 units
EAN: 6947273704096.00
SKU: GWN7813P
Vendor: Grandstream
Order within xx hours for delivery on
Quantity
  • Network Protocols: IPv4, IPv6, IEEE 802.3/3i/3u/3ab/3z/3ae/3x/3af/at/bt/3az/3ad, IEEE 802.1p/Q/w/d/s/x, IEEE 802.3AB
  • Gigabit Ethernet Ports: 8
  • SFP+ 10Gigabit Ports: 2
  • PoE Ports (PoE Models): 8
  • Total PoE Output: 120W (30W per port)
  • Non-Blocking Throughput: 28Gbps
  • Switching Capacity: 56Gbps
  • Forwarding Rate: 41.644Mpps
  • MAC Address Table: 16K static, dynamic, filtering
  • VLAN Support: 4K VLANs, 802.1Q, port-based VLAN, voice VLAN, VLAN virtual interface, GVRP (pending)
  • Routing & Multicast: Static & dynamic routing (RIP, RIPng, OSPF, OSPFv3), policy routing (pending), IGMP/MLD Snooping, MVR (pending)
  • Spanning Tree Protocol: STP/RSTP/MSTP - 32 instances
  • Security Features: 802.1X, AAA (RADIUS, TACACS+), HTTPS, SSH, Telnet, port isolation, storm control, sticky MAC, filtering MAC, DHCP Snooping, DoS prevention, ARP inspection
  • Loop Protection: BPDU, root, and loopback protection (pending)
  • Other: Kensington Lock support
  • 1x Switch
  • 1x 1.2m(10A) AC Cable
  • 1x 25cm Ground Cable
  • 4x Rubber Footpads
  • 1x Power Cord Anti-Trip
  • 8x Screws (KM 3*6)
  • 1x Quick Installation Guide
  • 1x Console Cable(Optional)
  • 2x Rack-Mounting Kits
  • 1x RPS
  • External Redundant Power Supply (Optional)

Datasheet



Overview

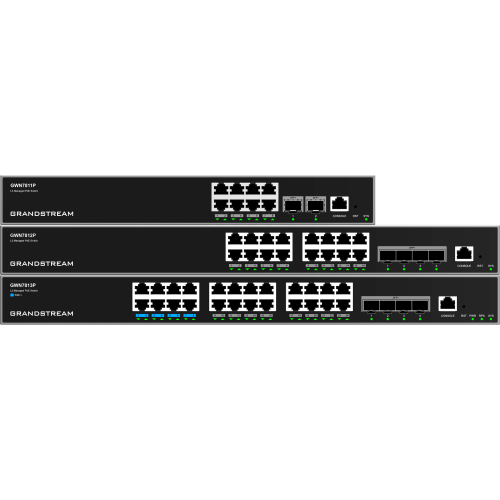

The Grandstream GWN7810 series are Layer 3 managed network switches that allow medium-to-large enterprises to build scalable, secure, high performance and smart business networks that are fully manageable.

Technical Features
  • 8/16/24 Gigabit Ethernet ports and 2/4 10Gigabit SFP+ ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models, Ports 1-8 on the GWN7813P support PoE++
  • Supports deployment in IPv6 and IPv4 networks
  • ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Embedded controller to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platform
  • Built-in QoS allows for prioritization of network traffic
