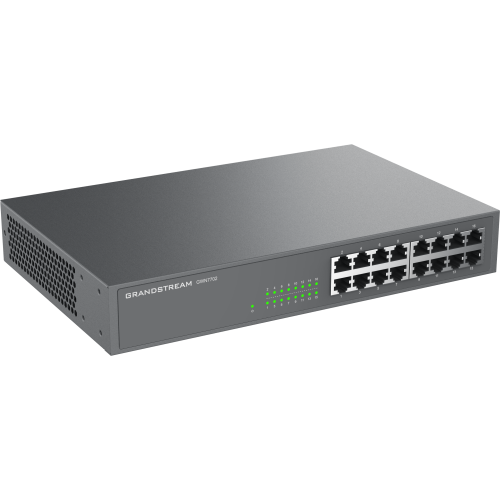

Grandstream GWN7702 UNMANAGED 16-PORT GE SWITCH

Grandstream GWN7702 UNMANAGED 16-PORT GE SWITCH

£69.70 GBP
Sale price: £69.70 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 16 × Gigabit Ethernet ports
  • Auto MDI/MDIX Features
In stock, 18 units
EAN: 6947273704645.00
SKU: GWN7702
Vendor: Grandstream
Order within xx hours for delivery on
Quantity
  • Manufacturer: Grandstream
  • Product Type: Switch
  • Switching Capacity: 32Gbps
  • POE: No
  • Downlink Ports: 16
  • Uplink Ports: 1
  • Network Speed: Gigabit
  • Management: Unmanaged
  • Fanless: Yes
  • Mounting: Rack Mount
  • GWN7702 Switch
  • Power Adapter
  • Quick Installation Guide
  • Mounting Kit

Datasheet


Overview

The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance.

Technical Features
  • Ports: 16× 10/100/1000Mbps RJ45, AUTO Negotiation, AUTO MDI/MDIX
  • Network Media: 1000Base-T/100Base-TX/10Base-T, Half/Full Duplex
  • MAC Address Table: 8K
  • Switching Capacity: 32Gbps
  • Jumbo Frame: 10KB
  • Functions: MAC Auto-Learning & Auto-Aging
  • Flow Control: IEEE 802.3x, Half Duplex Backpressure
  • LED Indicators: Link/Activity (per port), Power (per device)
  • Power: Internal 100-240V AC, 50/60Hz, 18W; Max 8W Consumption
  • Compliance: FCC, CE, RCM, IC, UKCA
  • Operating Temp: 0°C to 40°C | Storage: -20°C to 60°C
  • Humidity: 10%–90% Non-condensing
  • Mounting: Desktop / Rack-mounted
  • Dimensions: Unit 280×180×44mm | Package 366×211×53mm
