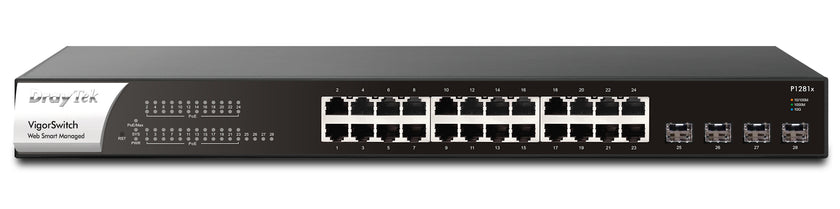

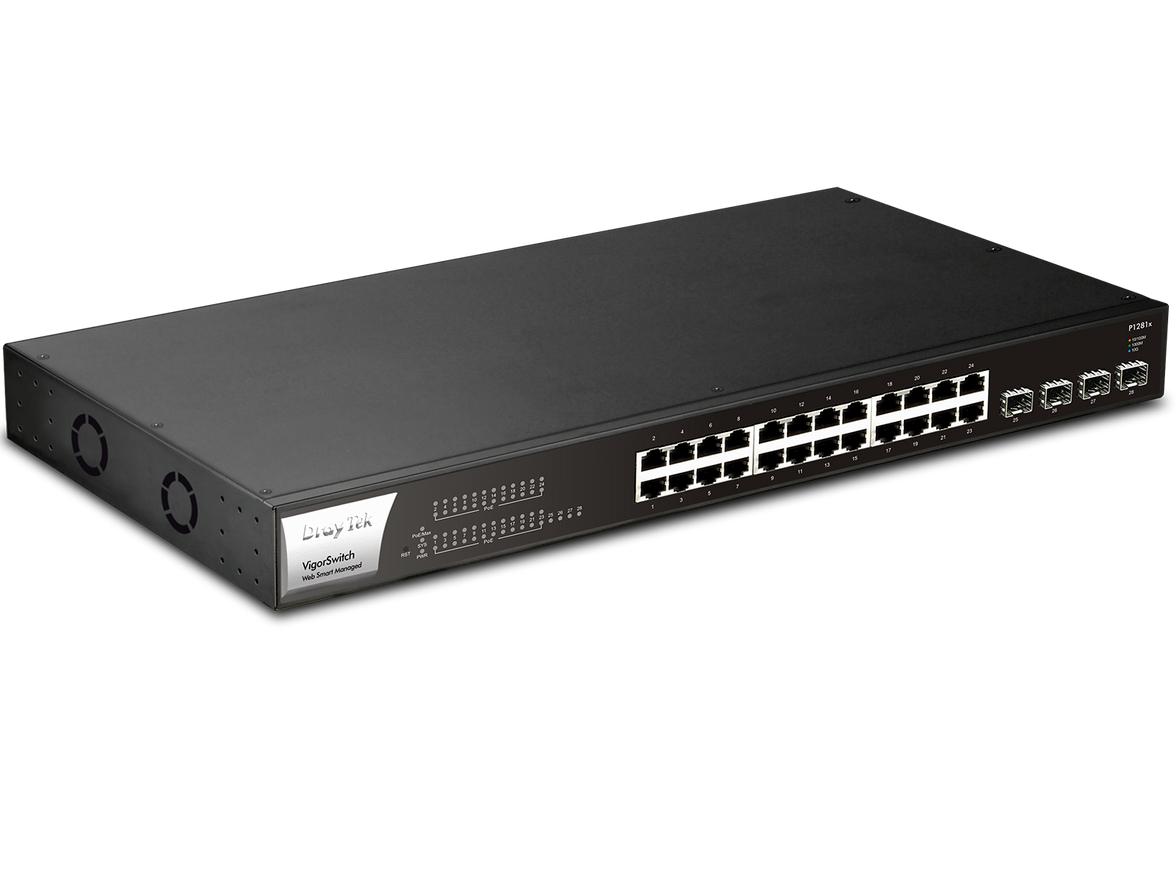

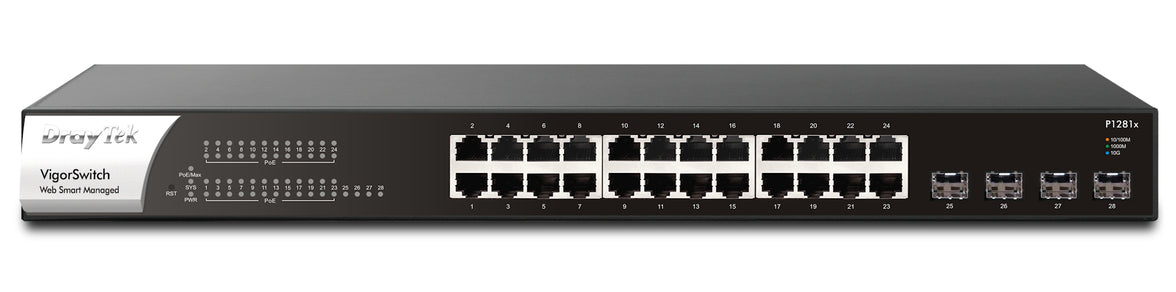

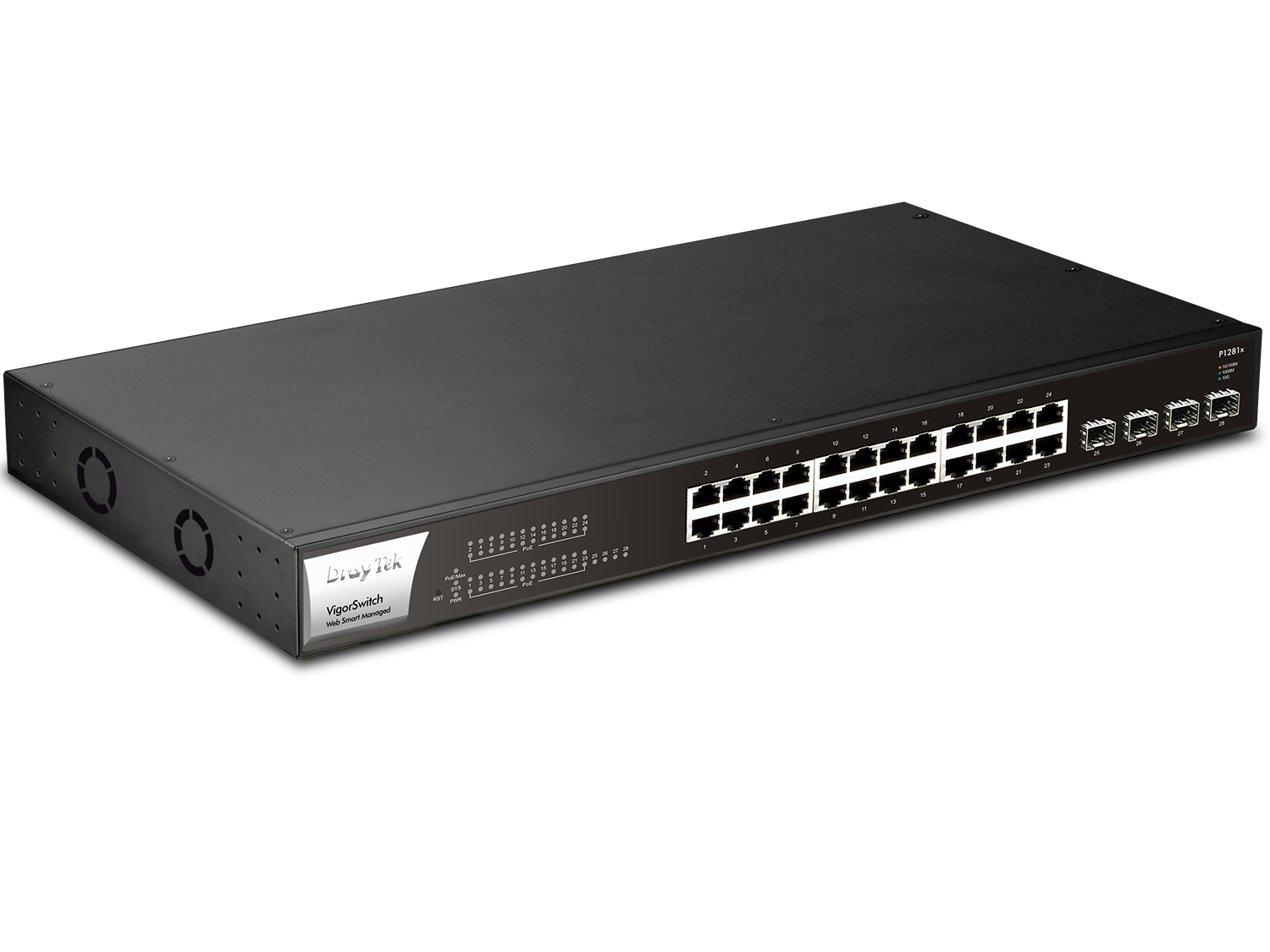

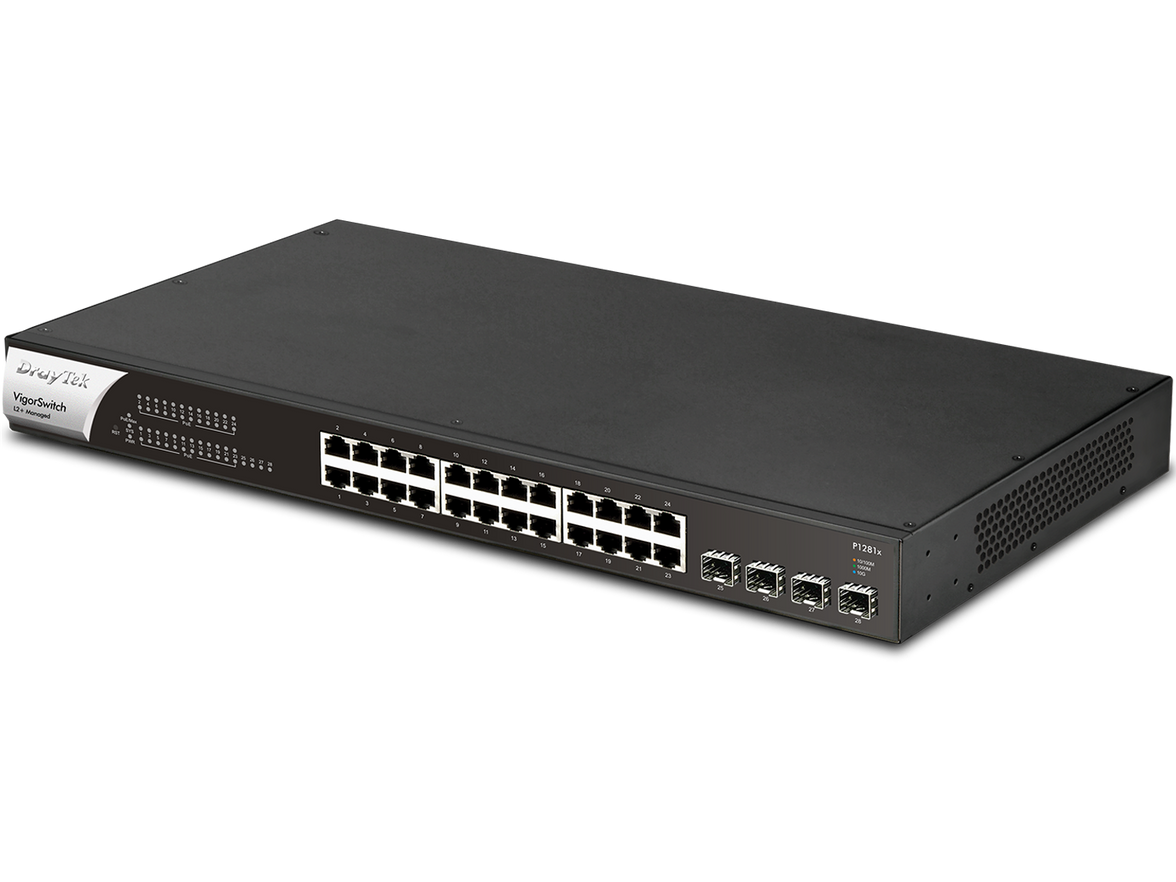

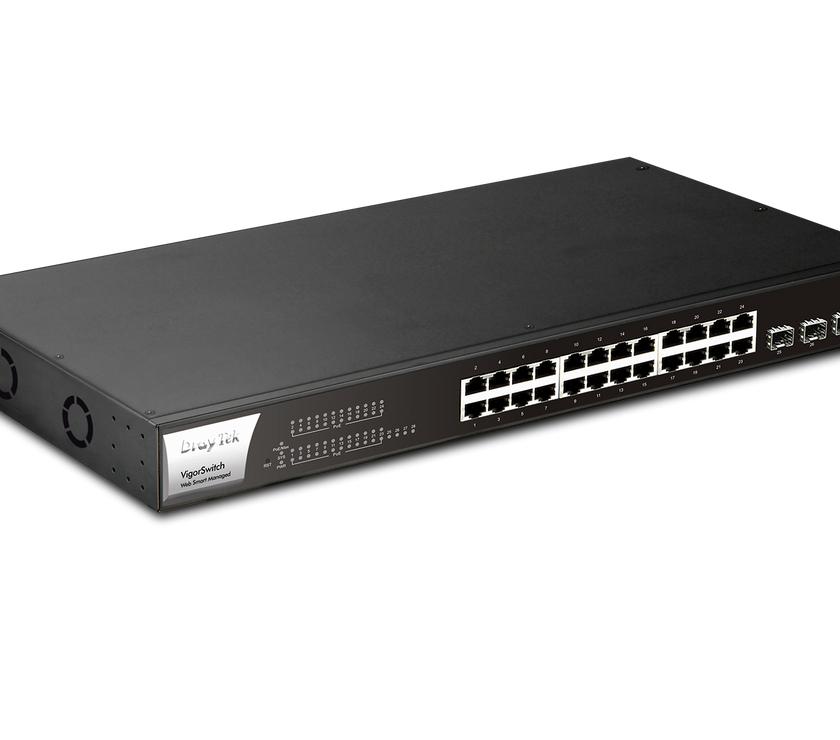

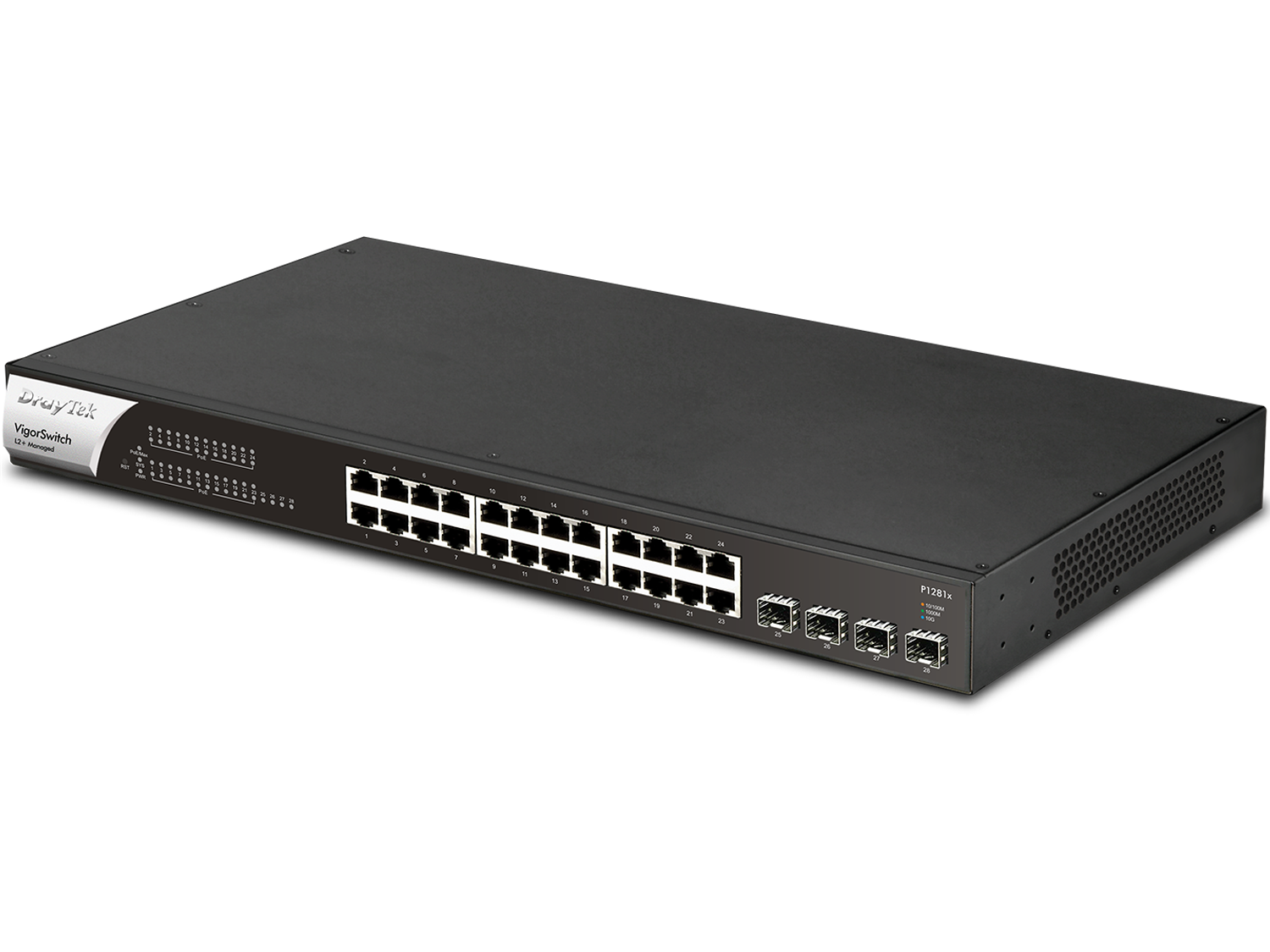

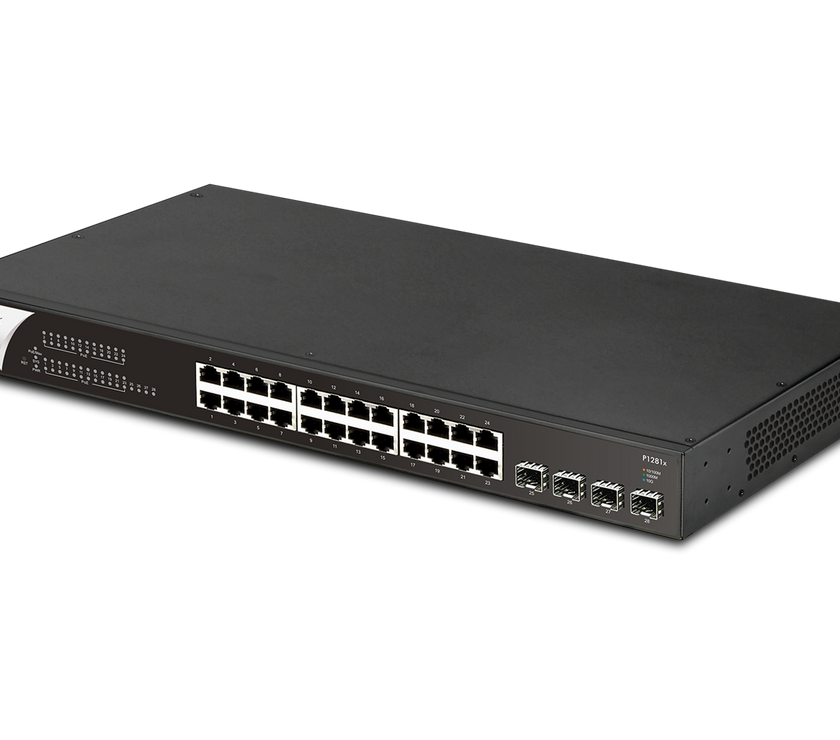

DrayTek VSP1281X-K network switch Managed L2

DrayTek VSP1281X-K network switch Managed L2

£302.15 GBP
Sale price: £302.15 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Provides 10G-capable fiber SFP+ ports
  • 140 watts of PoE Power Budget
In stock, 192 units
EAN: 4710484746801
SKU: VSP1281X-K
Vendor: Dray Tek
Order within xx hours for delivery on
Quantity
  • Rack Mountable: 1U
  • Power Input: AC 100-240V @ 2.5A
  • Max. Power Consumption (watts): 200
  • Dimension (mm): 440 x 216 x 44
  • Weight (kg): 3.25
  • Operating Temperature: 0 to 50°C
  • Storage Temperature: -20 to 70°C
  • Operating Humidity (non-condensing): 10 to 90%
  • Storage Humidity (non-condensing): 5 to 90%
  • VigorSwitch P1281x
  • Rack Mount Kit
  • Power Cord
  • Quick Start Guide

Datasheet

Overview
VigorSwitch P1281x is a smart switch with 24 x GbE PoE+ ports (total of 140W output) and 4 additional independent SFP+ 10Gbps interfaces. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port. Designed for centralised management, the VigorSwitch P1281x can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.

Technical Features
  • 10G SFP+: Provides 10G-capable fiber SFP+ ports for aggregation or uplinking to the core switches.
  • IP Conflict Prevention: Improve network stability by avoiding IP conflicts caused by a misconfigured or malicious host. Learn more.
  • PoE (Power over Ethernet): Deliver power and data over one ethernet cable, and turn on/off PoE devices periodically with PoE Schedule.
  • Web-Based GUI: Easily manage and monitor the network through a web-based console with graphical views of ports and hardware status. See demo.
  • Ping Device Check: Enable ping checks to selected devices to monitor their status. If ping times out, power cycle (if PoE enabled) the port and/or send out a mail alert.
  • Multiple Admin Accounts: Multiple administrator accounts with two levels of privilege for enhanced security and management.
  • Auto Surveillance & Voice VLAN: Recognize traffic from IP cameras and IP phones automatically and add CoS tags for QoS prioritization.
  • Central Switch Management: Set up VLANs easily from the router and get a centralized hierarchical view of all managed switches. Learn more.
  • QoS (Quality of Service): Improve the performance of critical traffic by prioritizing packets using CoS, DSCP, and IP Precedence tags.
  • Energy-Efficient Ethernet: Compliant with IEEE 802.3az to reduce power consumption and improve efficiency.
