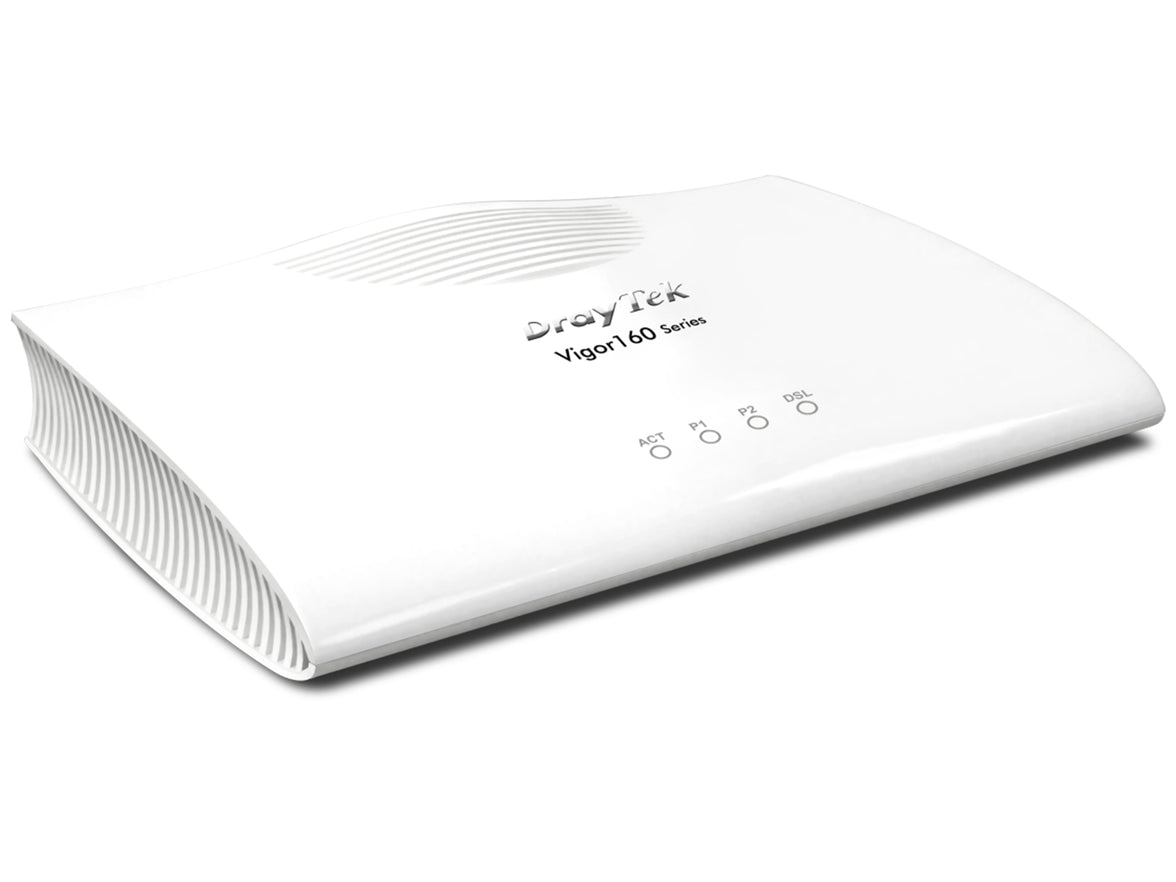

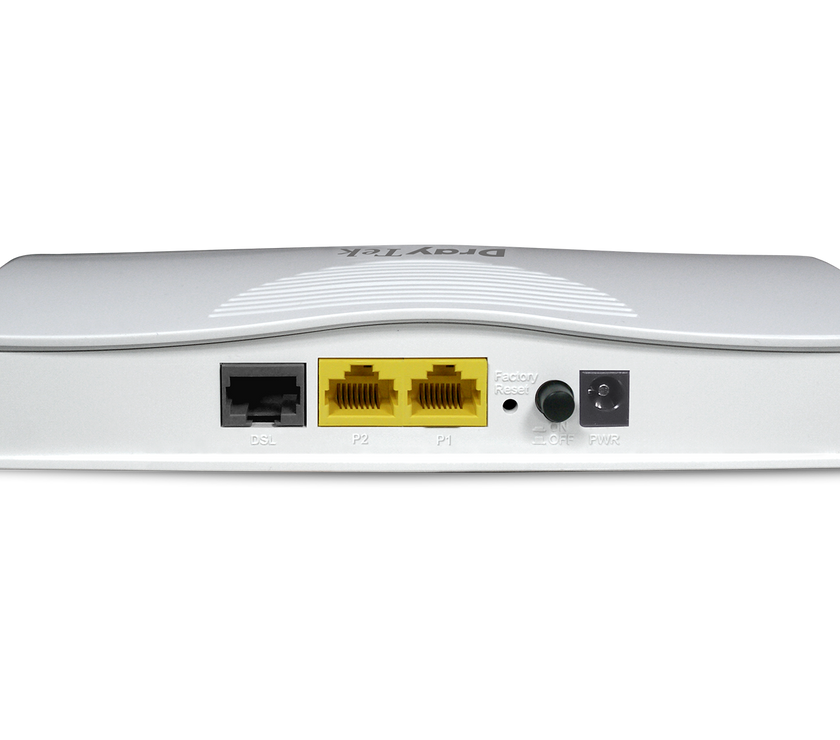

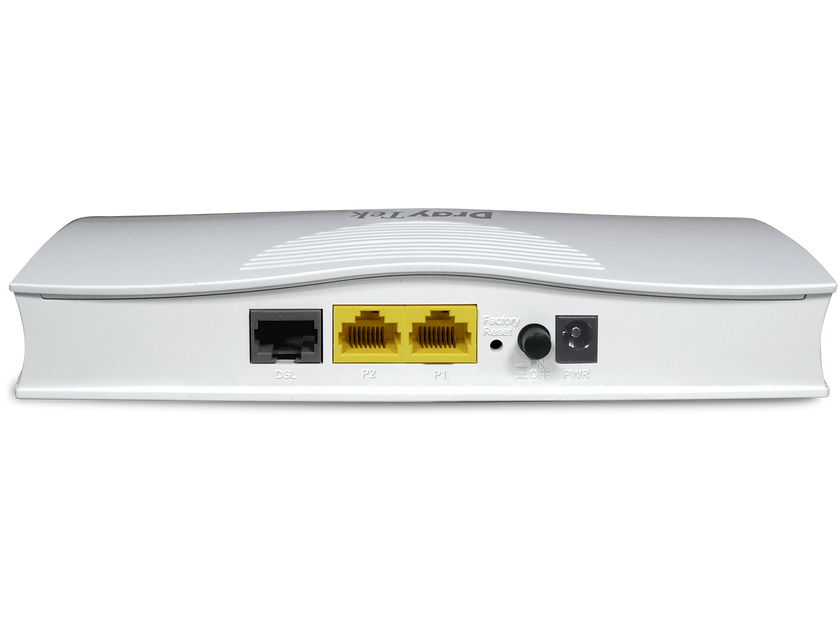

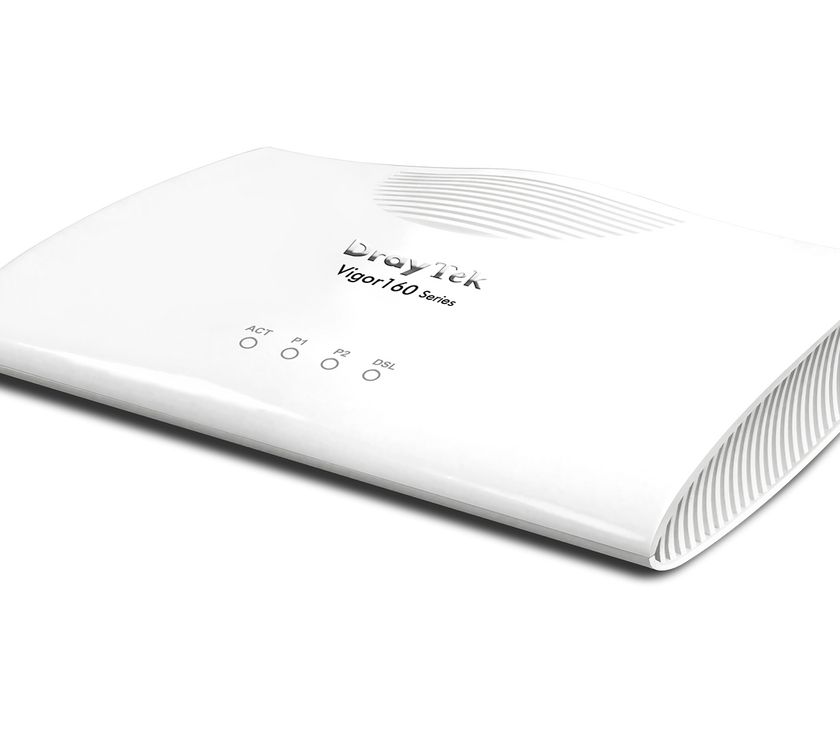

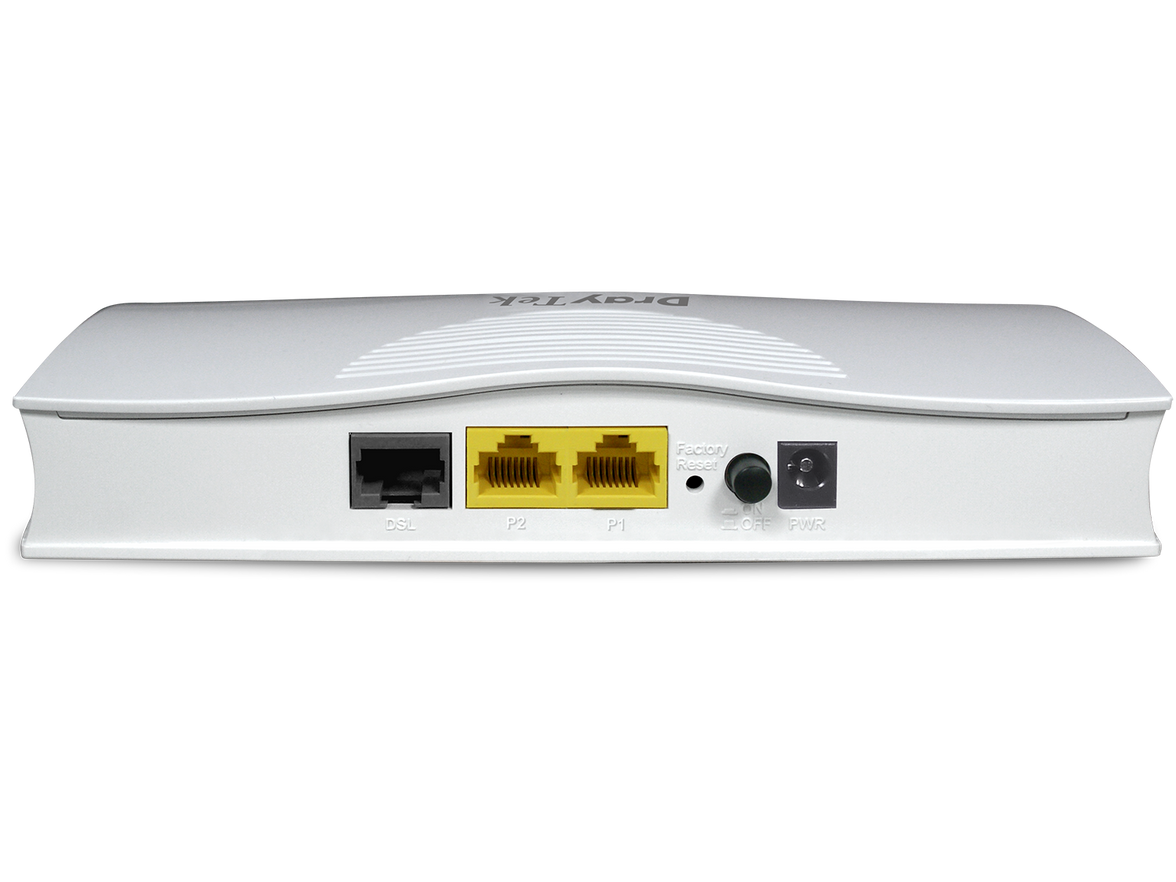

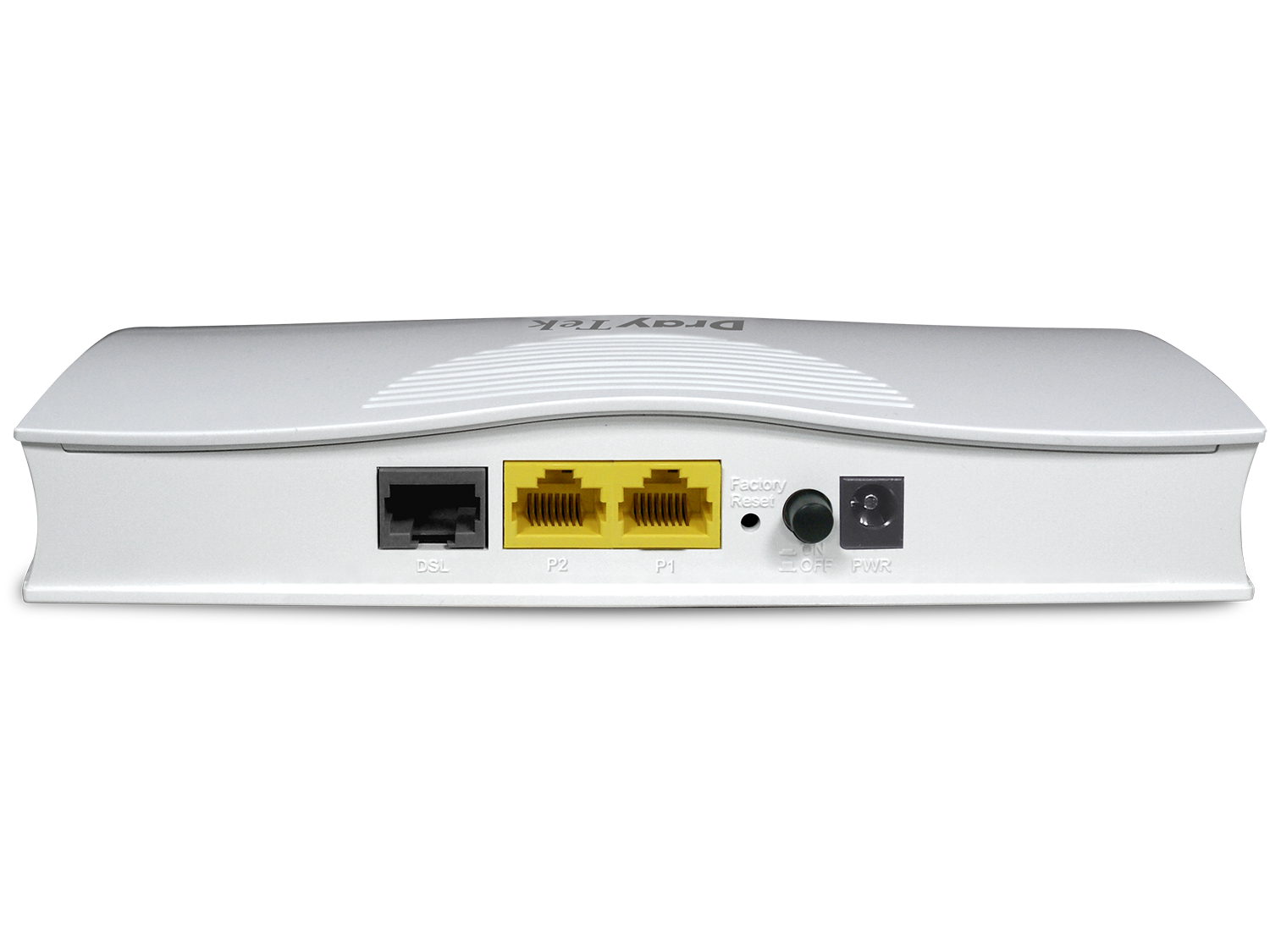

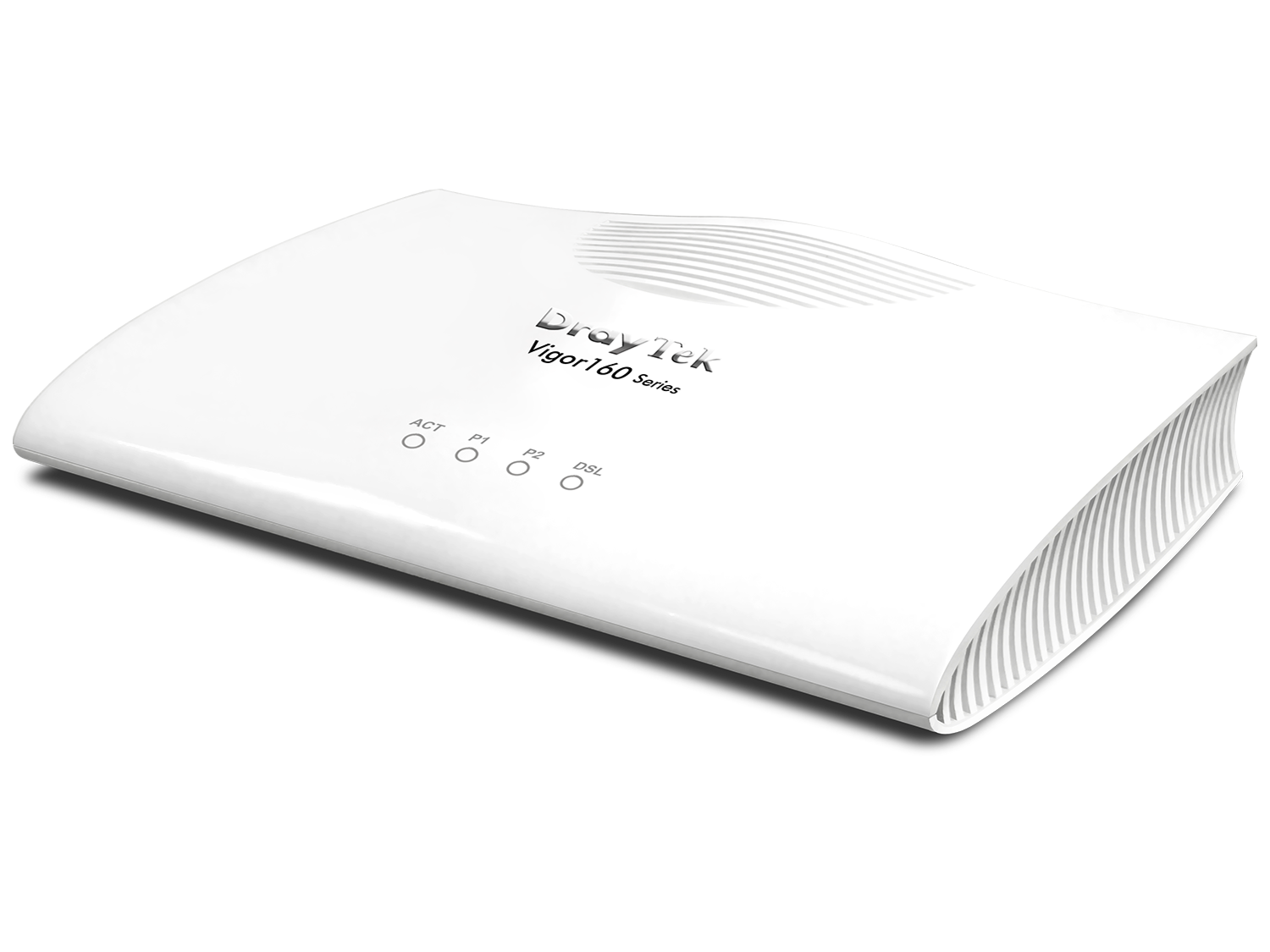

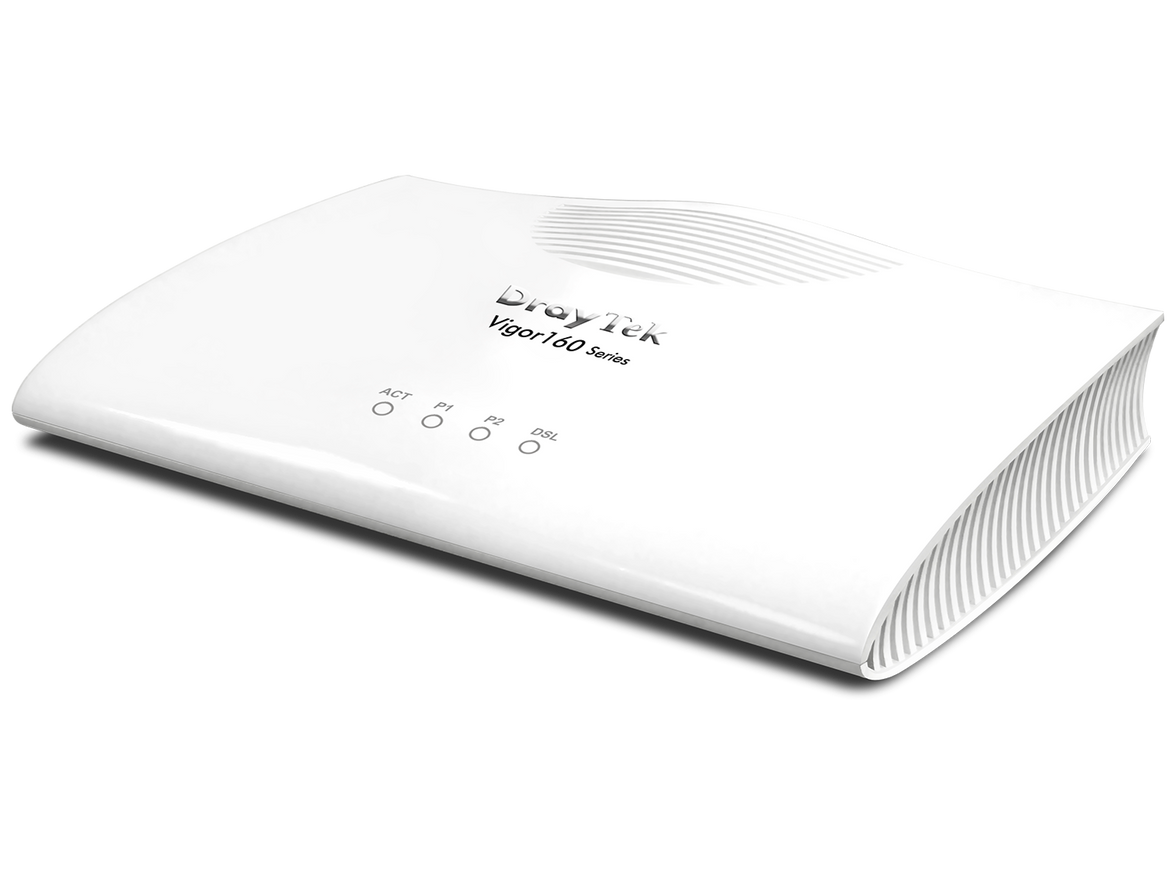

DrayTek Vigor 166 VDSL/G.Fast Modem

DrayTek Vigor 166 VDSL/G.Fast Modem

£121.64 GBP
Sale price: £121.64 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Support up to 330Mbps download
  • IPv6 and IPv4 Compatible
In stock, 58 units
EAN: 4712909128230
SKU: 253362
Vendor: Dray Tek
Order within xx hours for delivery on
Quantity
  • Wall Mountable: Yes
  • Operating Temperature: 0 °C ~ 45 °C
  • Storage Temperature: -25 °C ~ 70 °C
  • Humidity: 10% ~ 90% (non-condensing)
  • Power Consumption: 6.6 Watt Max.
  • Length: 181mm
  • Width: 125mm
  • Height: 40mm
  • Weight: 280g
  • Operating Power: DC 12V 1A (via external PSU, supplied)
  • Power Requirements: 220-240VAC


• Vigor 166 Modem
• Quick Start Guide
• RJ-11 DSL Cable
• Cat-5e RJ-45 Cable
• Screws & wall plugs for wall mounting
• DC 12V PSU

Datasheet

Overview

Vigor166 is a G.fast modem/router, delivering fiber-like DSL speed up to 1 Gbps. The built-in DSL modem is backward compatible with VDSL2 profile 35b supervectoring and ADSL2+. With 1 RJ-11 port and 2 GbE LAN ports, Vigor166 is also configurable to be a small yet powerful router, offering SPI firewall and content filtering by URL keywords and web features.

Technical Features
  • G.fast & VDSL2 35b Capable: Up to 330Mbps download and 50Mbps upload with G.fast technology. Compatible with all the latest DSL standards, including Vectoring and 35b SuperVectoring.
  • Two Gigabit LAN Ports: Connect two devices to the Vigor 166 with 2 Gigabit (10/100/1000Mbps) LAN ports. No need to disconnect Ethernet WAN to check connectivity.
  • No Setup Needed: Works as a modem with most ISPs, straight out of the box. Pre-configured to work with most UK ISPs—just set the username and password on your router.
  • Full-Bridge Modem and More: Two operation modes allow the Vigor 166 to operate as a fully bridged DSL to Ethernet modem or as a mini router with NAT DMZ host.
  • Add DSL Connectivity to Any Router: Ideal partner device for DrayTek dual-WAN products or any other vendor's Ethernet WAN firewall. Reports DSL line status on DrayTek Vigor routers.
  • Wall or Shelf Mountable: Can be securely installed on a wall or shelf with screw fixings to hold it in place. Mounting kit included.
