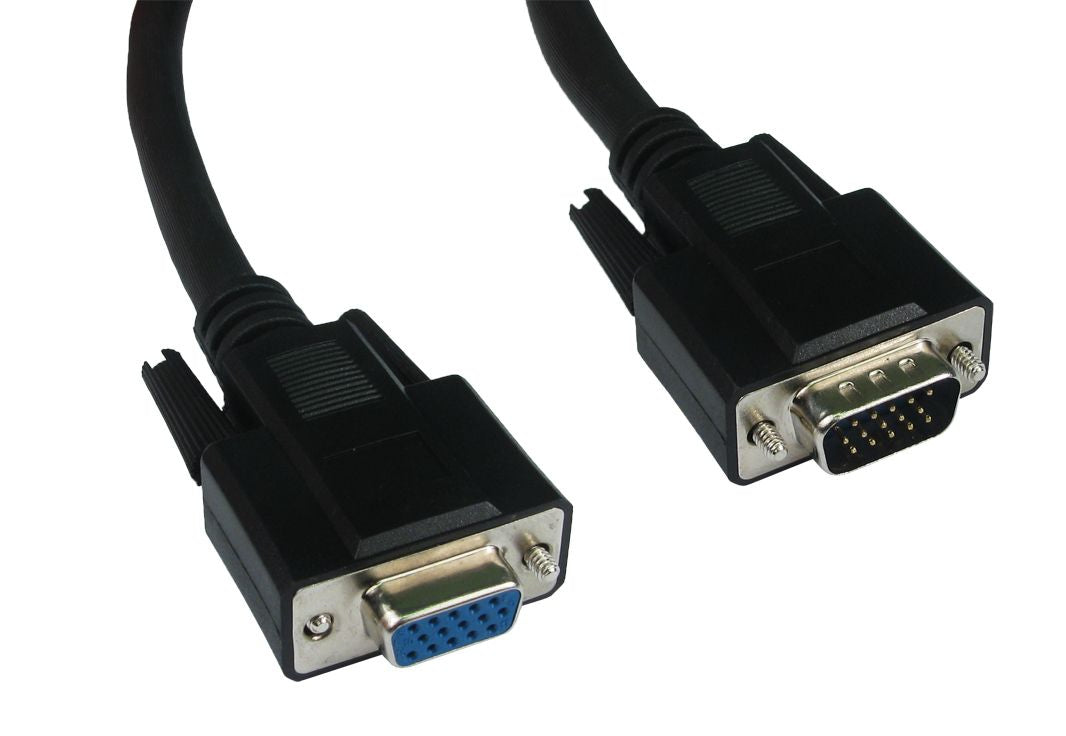

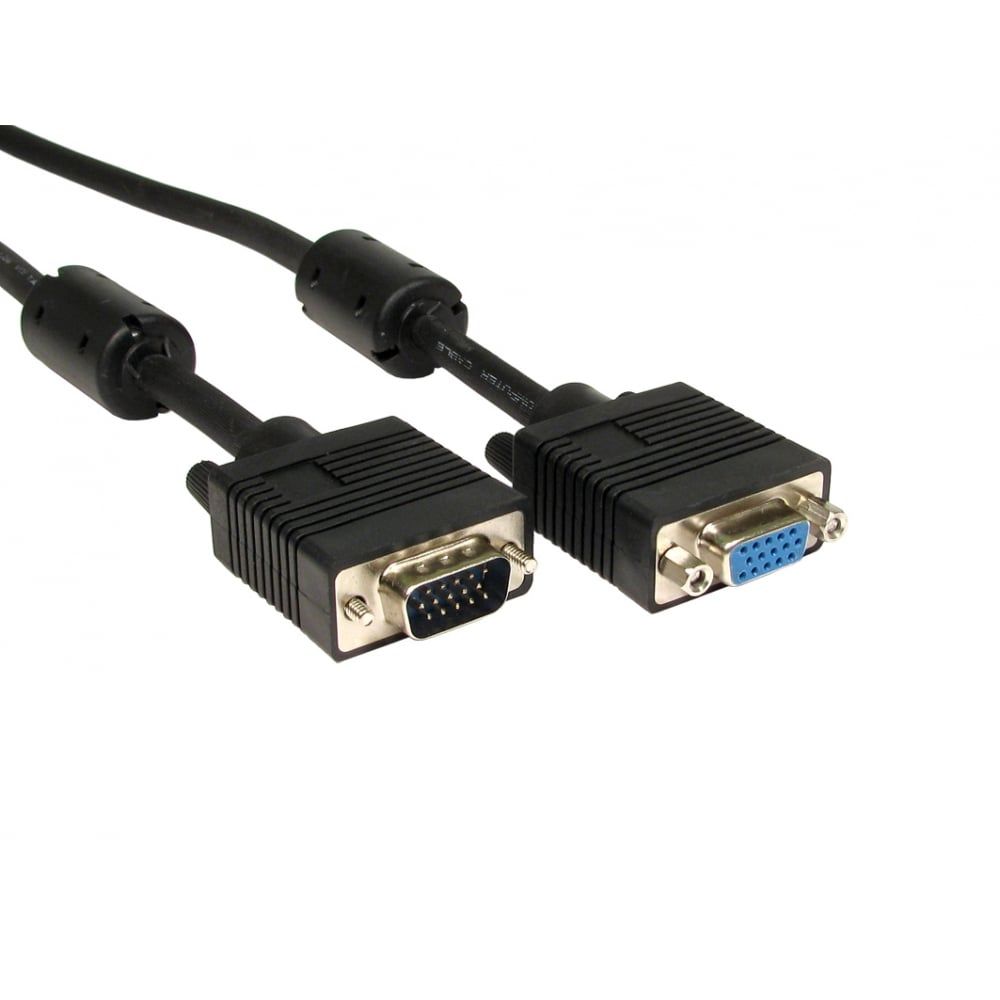

CDL 5m SVGA Extension Cable

Name: CDL 5m SVGA Extension Cable
Brand: Cablenet
SKU: 330572
Price: 4.68 GBP
Availability: InStock

£4.68 GBP

£4.68 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

SVGA Monitor Cable
HD15 Male - Female

In stock, 35 units

EAN: 5055781209284

SKU: 330572

Vendor: Cablenet

Order within xx hours for delivery on

Product Specification

MPN: CMSC00006
Vendor: CMS Cables
Weight: 0.010000
Connector 1: VGA (D-Sub)
Connector 1 Form Factor: Straight
Connector 1 Gender: Male
Connector 2: VGA (D-Sub)
Connector 2 Form Factor: Straight
Connector 2 Gender: Female
Conductor Material: Copper

Box Content

Cablenet 5m SVGA Extension Cable

Documents

Technical Features

Connector Configuration: HD15 (15-pin D-Sub) Male to HD15 Female for use as a VGA extension
Full Pin Connection: Fully wired with all 15 pins connected to support DDC2 communication for automatic resolution and refresh detection
Shielding: Triple shielding (foil, braid, and drain wire) to minimize crosstalk and protect against EMI/RFI interference
Ferrite Cores: Dual ferrite beads to suppress electronic noise and prevent display ghosting
Internal Wiring: 28 AWG triple mini coaxial cables for consistent RGB signal transmission over longer distances
Resolution Support: Supports high-definition resolutions up to 1080p (Full HD) at 60Hz and WUXGA (1920 × 1200)
Build Quality: Fully moulded connectors with durable black PVC jacket
Secure Connection: Integrated thumb screws on both ends for a tight, reliable fit

CDL 5m SVGA Extension Cable

£4.68 GBP

£4.68 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

Our range of Super VGA cables are constructed using UL2919 approved 28 AWG triple mini coaxial and 4x 28 AWG conductor cables, this allows them to be used for extended distances.Triple shielded with copper braid, foil and drain wire. This range of cables have all pins connected and should work with widescreen monitors that require DDC cables.The DDC link is carried on three pins 12, 15 and 10 (data, clock and ground) in a 15-pin VGA connector.
