CDL 50m HDMI 2.1 Armoured AOC

Name: CDL 50m HDMI 2.1 Armoured AOC
Brand: Cablenet
SKU: 330876
Price: 142.22 GBP
Availability: InStock

£142.22 GBP

£142.22 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Armoured jacket
24K gold-plated connectors

In stock, 10 units

EAN: 5055781249518

SKU: 330876

Vendor: Cablenet

Order within xx hours for delivery on

Product Specification

HDMI Version: HDMI 2.1 (backwards compatible with 2.0/1.4)
Bandwidth: 48Gbps (12Gbps per channel x 4)
Length: 50 meters
Cable Diameter: Approx. 5.5mm to 6.0mm
Bend Radius: Minimum 20mm (dynamic/static)
Tensile Strength: Long-term 100N / Short-term 200N

Box Content

Cablenet 50m HDMI 2.1 Armoured AOC

Documents

Technical Features

Bandwidth: Supports data transfer rates up to 48Gbps, meeting full HDMI 2.1 specification
Resolution & Refresh Rates: Supports 8K at 60Hz and 4K at 120Hz
Signal Transmission: Active Optical Cable (AOC) technology enables lossless transmission over 50m without external power
Video Support: Supports Dynamic HDR, BT.2020 colour space, and 4:4:4 chroma subsampling
Build Quality: Multi-layer armoured design with stainless steel and Kevlar reinforcement
Interference Protection: Immune to EMI/RFI for stable performance in high-interference environments
Connectors: 24K gold-plated connectors with metal housings
Design: Slim outer diameter (~5.6mm) for flexible installation
Installation: Plug and play with no external power required

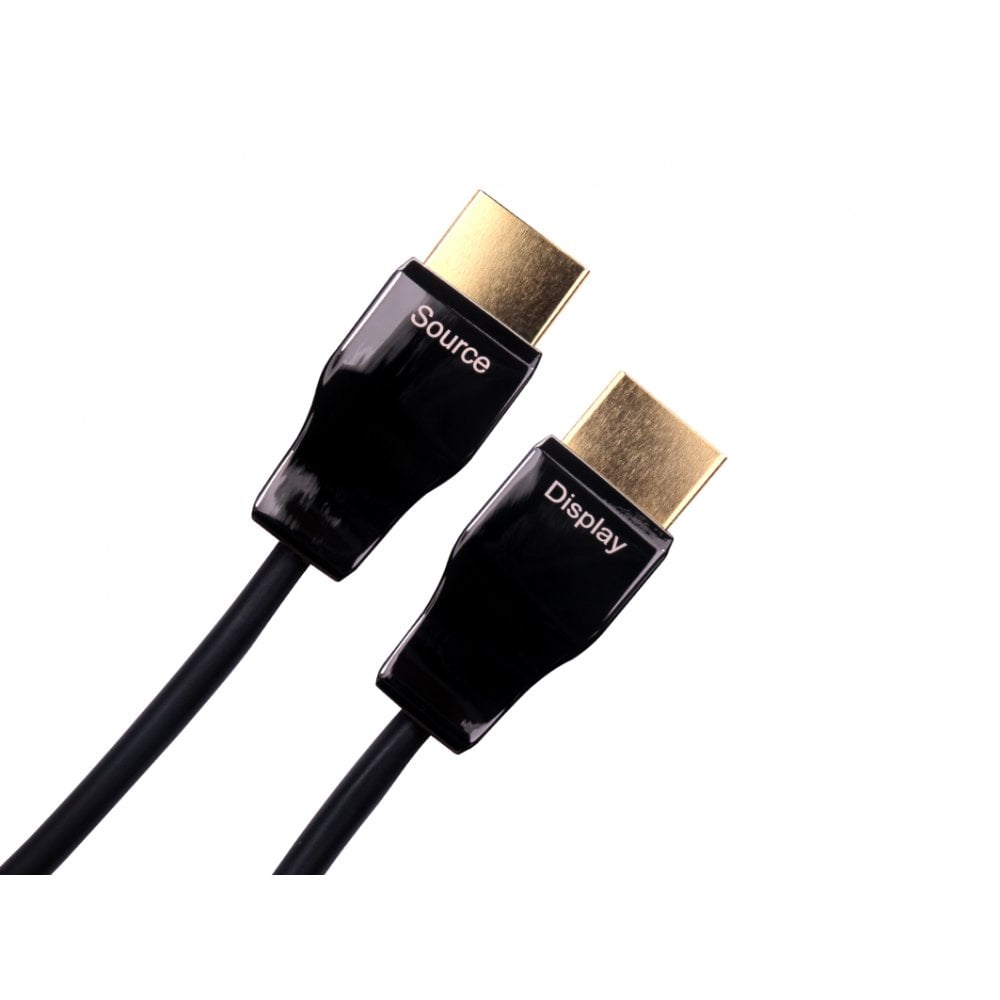

Directionality: Uni-directional with labeled "Source" and "Display" ends
Audio Support: Supports eARC, Dolby Atmos, and DTS:X
Compatibility: HDCP 2.2/2.3 compliant with EDID self-detection

CDL 50m HDMI 2.1 Armoured AOC

£142.22 GBP

£142.22 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The CDL 50m HDMI 2.1 Armoured AOC (Part Number: 330876) is a professional-grade Active Optical Cable designed for high-bandwidth, long-distance signal transmission in demanding environments. This cable features a specialized armoured jacket to protect the internal fiber optics from physical damage such as crushing or rodent interference, making it ideal for permanent installations in commercial or industrial settings.
