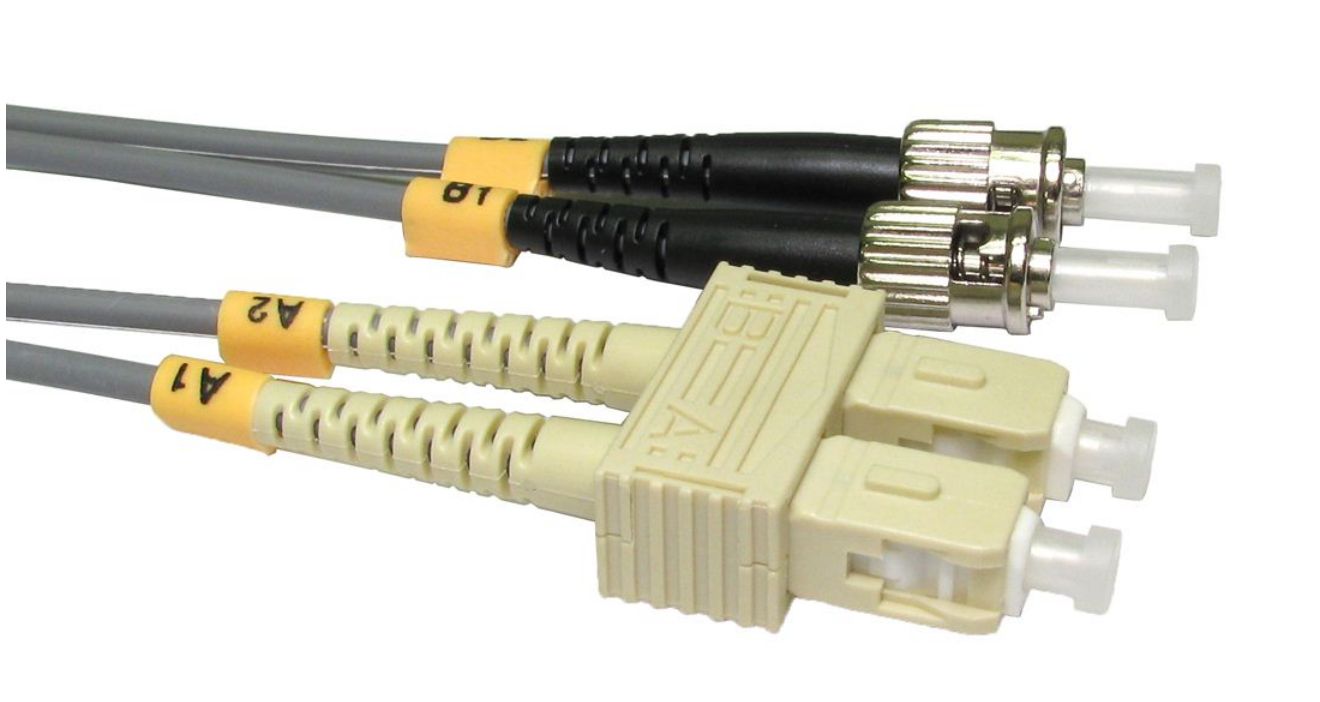

CDL 1m OM1 Optic Cable ST - SC

Name: CDL 1m OM1 Optic Cable ST - SC
Brand: Cablenet
SKU: 332056
Price: 2.56 GBP
Availability: InStock

£2.56 GBP

£2.56 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Shipping calculated at checkout.

Duplex
Multi-mode

In stock, 26 units

EAN: 5055781213250

SKU: 332056

Vendor: Cablenet

Order within xx hours for delivery on

Product Specification

Vendor: Cables Direct
MPN: FB1M-STSC-010D
EAN: 5055781213250
Weight: 0.036000
Fibre Optic Type: OM1 (62.5/125)
Connector 1: ST Duplex
Connector 2: SC Duplex
Cable Length: 1m
Cable Colour: Grey
Product Colour: Grey
Core Diameter: 62.5 micron
Cladding Diameter: 125 micron

Box Content

Cablenet 1m OM1 Fibre Optic Cable ST - SC (Multi Mode)

Documents

Technical Features

Dual Connector Compatibility: Features one ST (Straight Tip) twist-and-lock connector and one SC (Subscriber Connector) push-pull connector, enabling seamless connection between different hardware interfaces.
OM1 Standard Fiber: Utilizes a 62.5/125µm multimode core, optimized for short-range high-speed communication in local area networks (LANs).
High-Speed Data Support: Capable of supporting 10 Gigabit Ethernet up to 33 meters and is a standard choice for 100 Megabit and 1 Gigabit Ethernet applications.
Safety-First Jacket (LSZH): Housed in a Low Smoke Zero Halogen (LSZH) orange jacket, which minimizes toxic fumes and smoke in the event of a fire, making it ideal for schools, offices, and industrial settings.
Quality Assured: Each cable assembly is fully tested during manufacturing and typically supplied with a test report to guarantee signal integrity and performance.
Enhanced Durability: Equipped with moulded strain relief boots to protect the internal glass fibers from damage caused by bending or pulling during installation.
Signal Integrity: Features high-precision ceramic ferrules and UPC (Ultra Physical Contact) polishing to ensure low insertion loss (typically 0.3dB) and high return loss for stable connections.

CDL 1m OM1 Optic Cable ST - SC

£2.56 GBP

£2.56 GBP ~~Regular price: £0.00 GBP~~

(VAT Incl.)

Overview

The Cablenet 1m OM1 ST-SC is a multimode duplex fiber patch lead designed to bridge legacy ST twist-lock connections with modern SC push-pull interfaces. Featuring a 62.5/125µm core, it is optimized for 100Mb and 1Gb Ethernet applications over short distances, typically within a single server rack. This 1-meter cable usually comes with an orange, LSZH (Low Smoke Zero Halogen) jacket for safety and easy identification. It is the standard choice for maintaining or upgrading older fiber optic infrastructure without replacing entire hardware sets.
