ATEN VE803

ATEN VE803

£137.60 GBP
Sale price: £137.60 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Extend HDMI & USB Easily
In stock, 7 units
EAN: 4710423779716
SKU: VE803
Vendor: ATEN
Order within xx hours for delivery on
Quantity
  • Extends HDMI video and audio up to 40 m (1080p) or 60 m (1080i) over Cat5e/6
  • Supports USB extension for touch panels and peripherals
  • High‑quality HDTV and widescreen resolutions
  • 8‑segment EQ switch for display optimization
  • Supports HDMI (3D, Deep Color) and HDCP content
  • Dolby True HD and DTS HD Master Audio support
  • Transparent USB 2.0 full‑speed support (up to 12 Mbps)
  • Built‑in ESD protection for stable performance
  • Local unit can be USB powered for convenience
  • Metal housing for durability
  • 1 × ATEN VE803T HDMI USB Transmitter
  • 1 × ATEN VE803R HDMI USB Receiver
  • 1 × Power Adapter
  • 1 × USB 2.0 Cable (approx. 1.8 m)
  • 1 × Mounting Kit
  • 1 × Quick Installation Guide / Manual

Datasheet

Overview

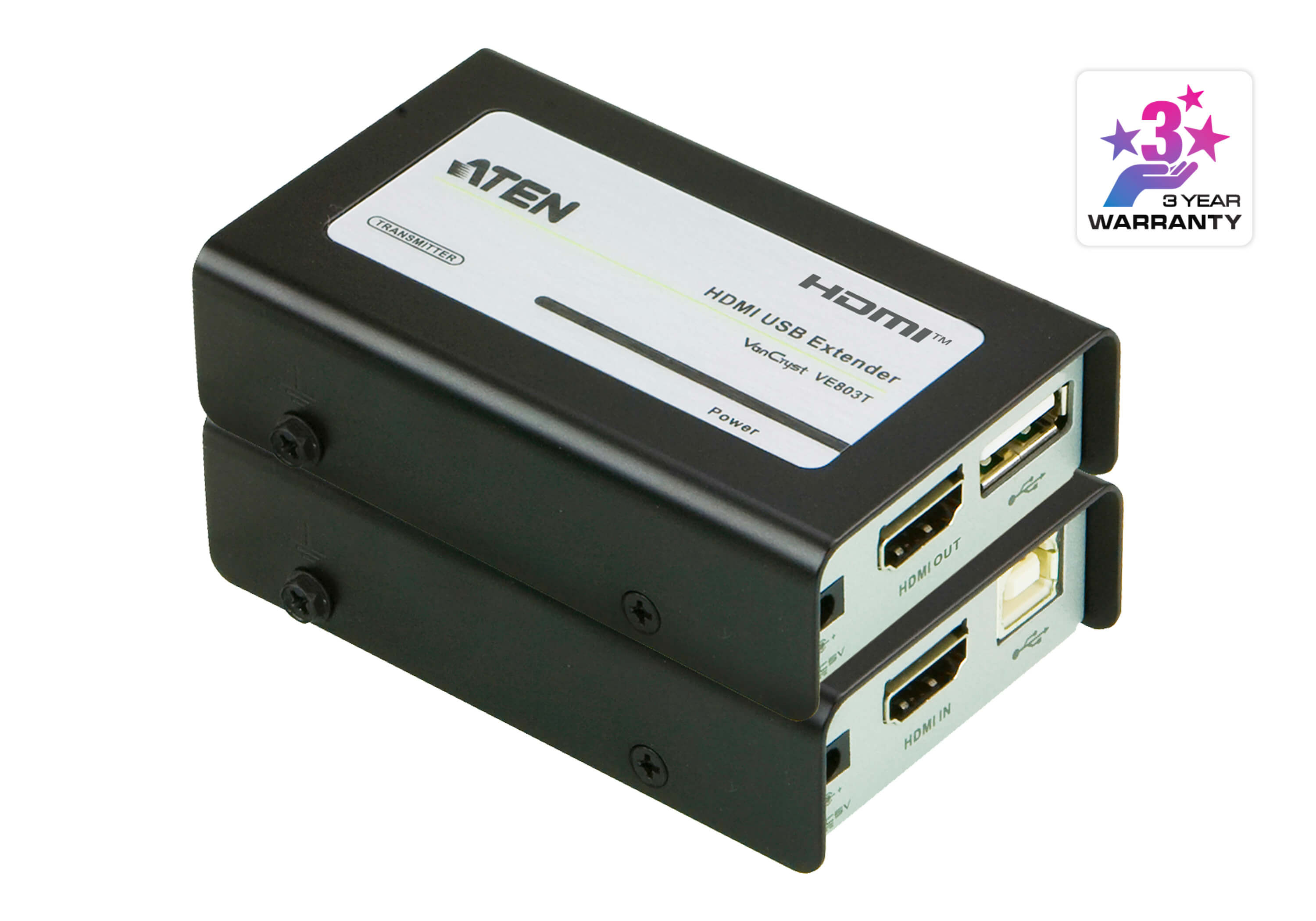

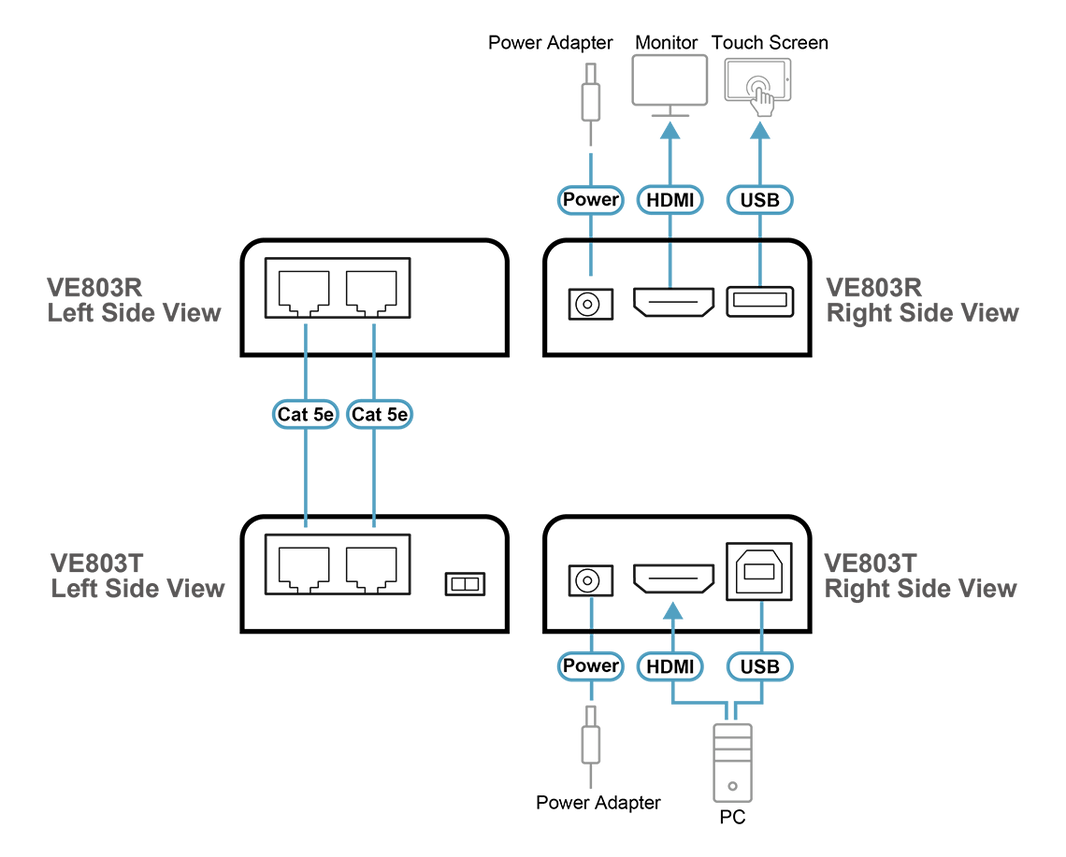

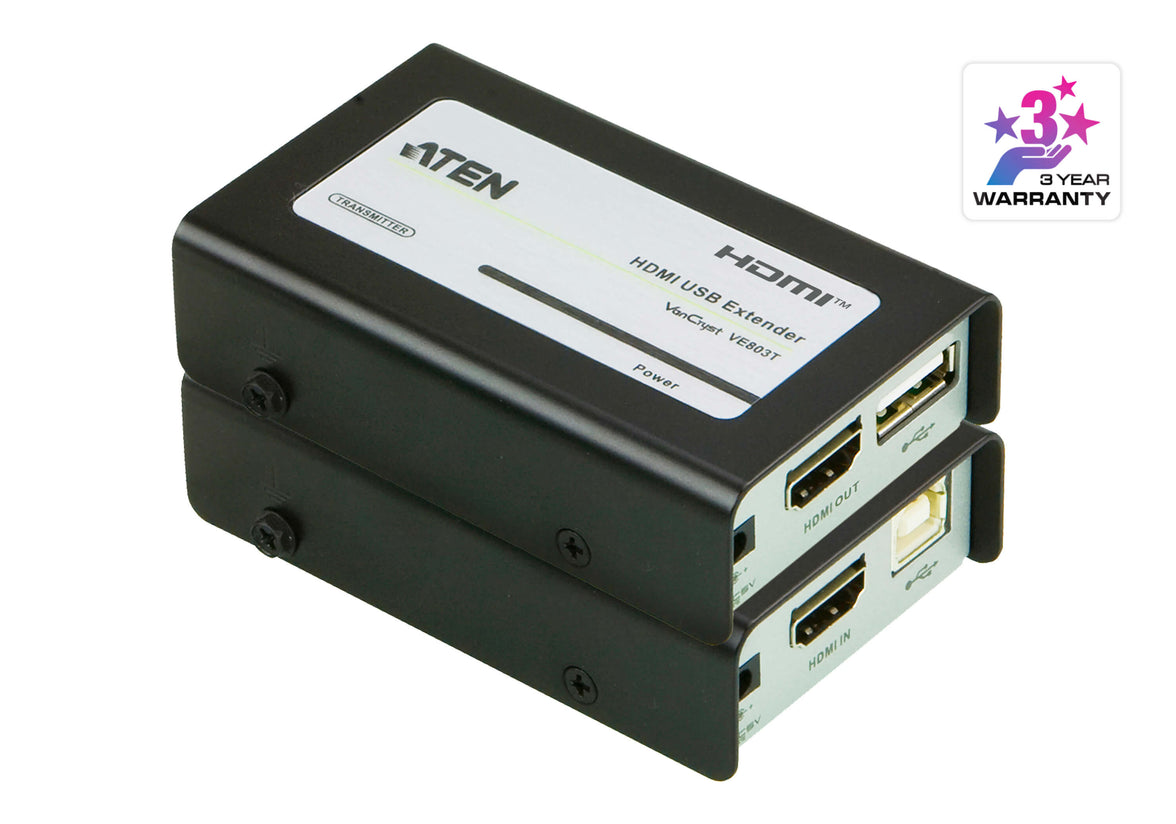

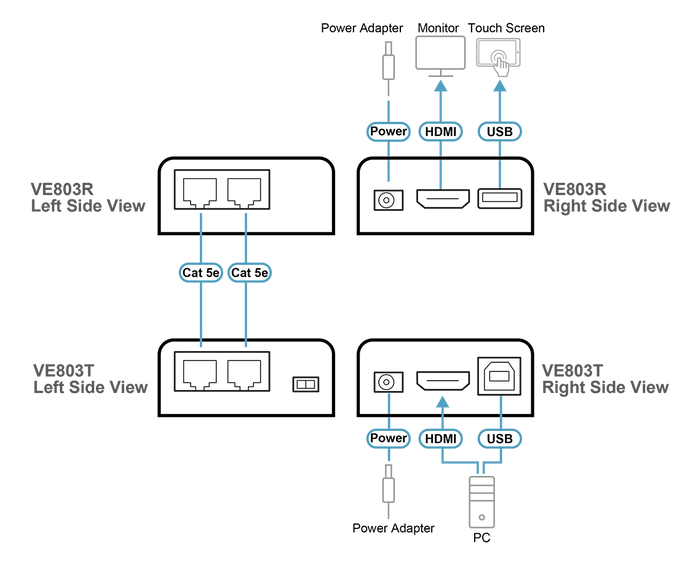

The ATEN VE803 HDMI USB Extender enables you to extend an HDMI source and USB device signals over long distances using two Cat5e/Cat6 cables. The system is made up of a local transmitter (VE803T) and a remote receiver (VE803R), each with metal housing and reliable shielding. It supports HDTV resolutions up to 1080p at 40 m or 1080i at 60 m, with high‑quality video formats including VGA, SVGA, XGA, UXGA, and widescreen formats. Transparent USB extension lets you connect USB 2.0 full‑speed devices (up to 12 Mbps) such as touch panels or control peripherals at the remote end. An 8‑segment EQ switch provides display optimization, and built‑in ESD protection keeps the system safe in demanding environments. The extender is HDCP compliant and also supports Dolby True HD and DTS Master Audio formats, making it suitable for public displays, kiosks, medical facilities, transportation hubs, and interactive signage.

Technical Features
  • Brand: ATEN
  • Model: VE803
  • Extender Type: HDMI + USB over Cat5e/6
  • Includes: VE803T Transmitter & VE803R Receiver

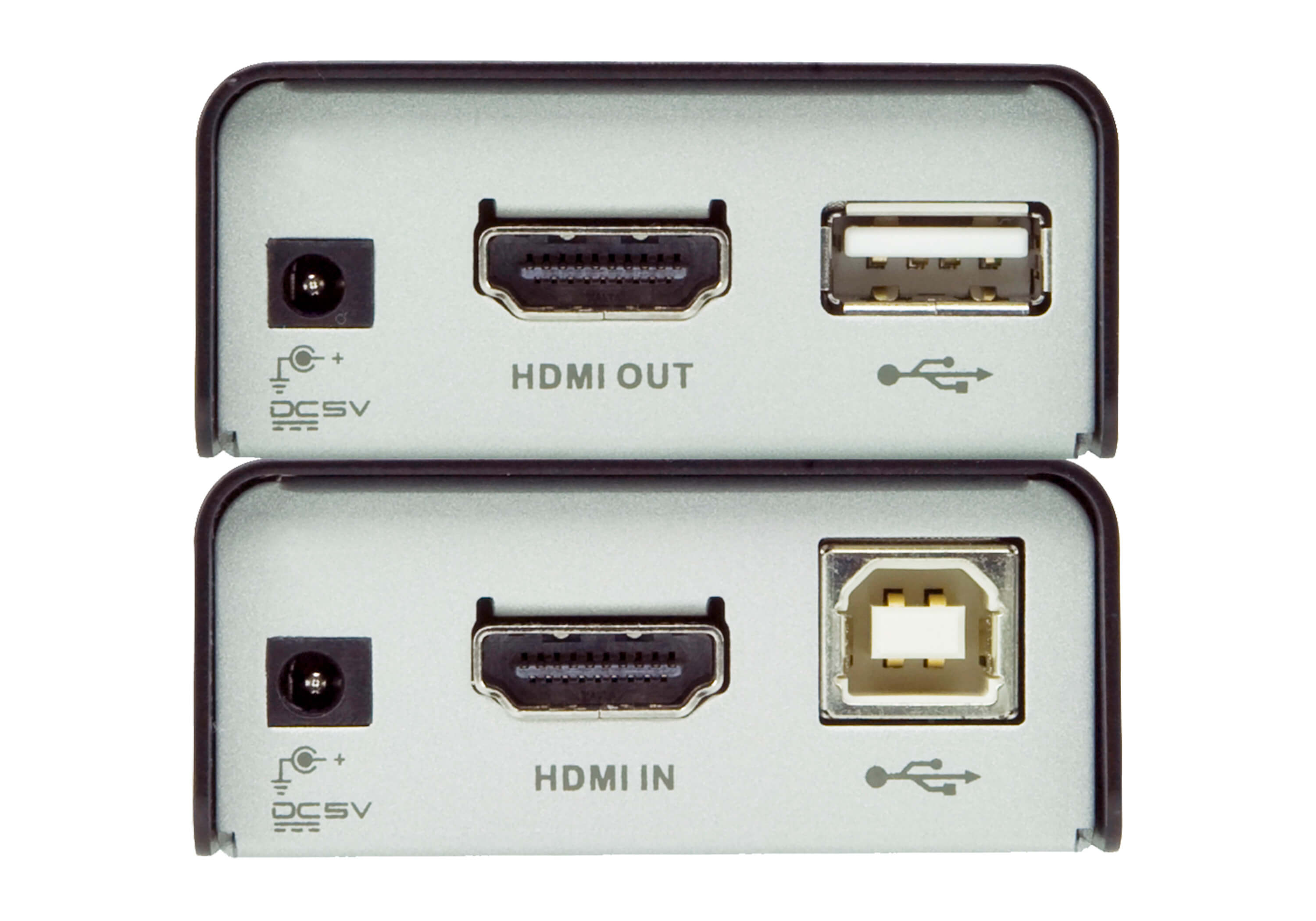

  • Video Input: 1 × HDMI Type A Female (Transmitter)
  • Video Output: 1 × HDMI Type A Female (Receiver)
  • Maximum Resolution/Distance: 1080p @ 40 m; 1080i @ 60 m
  • Supported Resolutions: 480p, 720p, 1080i, 1080p, VGA, XGA, UXGA
  • USB Ports: 1 × USB Type B (Transmitter), 1 × USB Type A (Receiver)
  • Video Compliance: HDMI (3D, Deep Color); HDCP compatible
  • Audio: Pass‑through HDMI audio (supports Dolby True HD and DTS HD Master Audio)
  • ESD Protection: Built‑in 8 kV / 15 kV

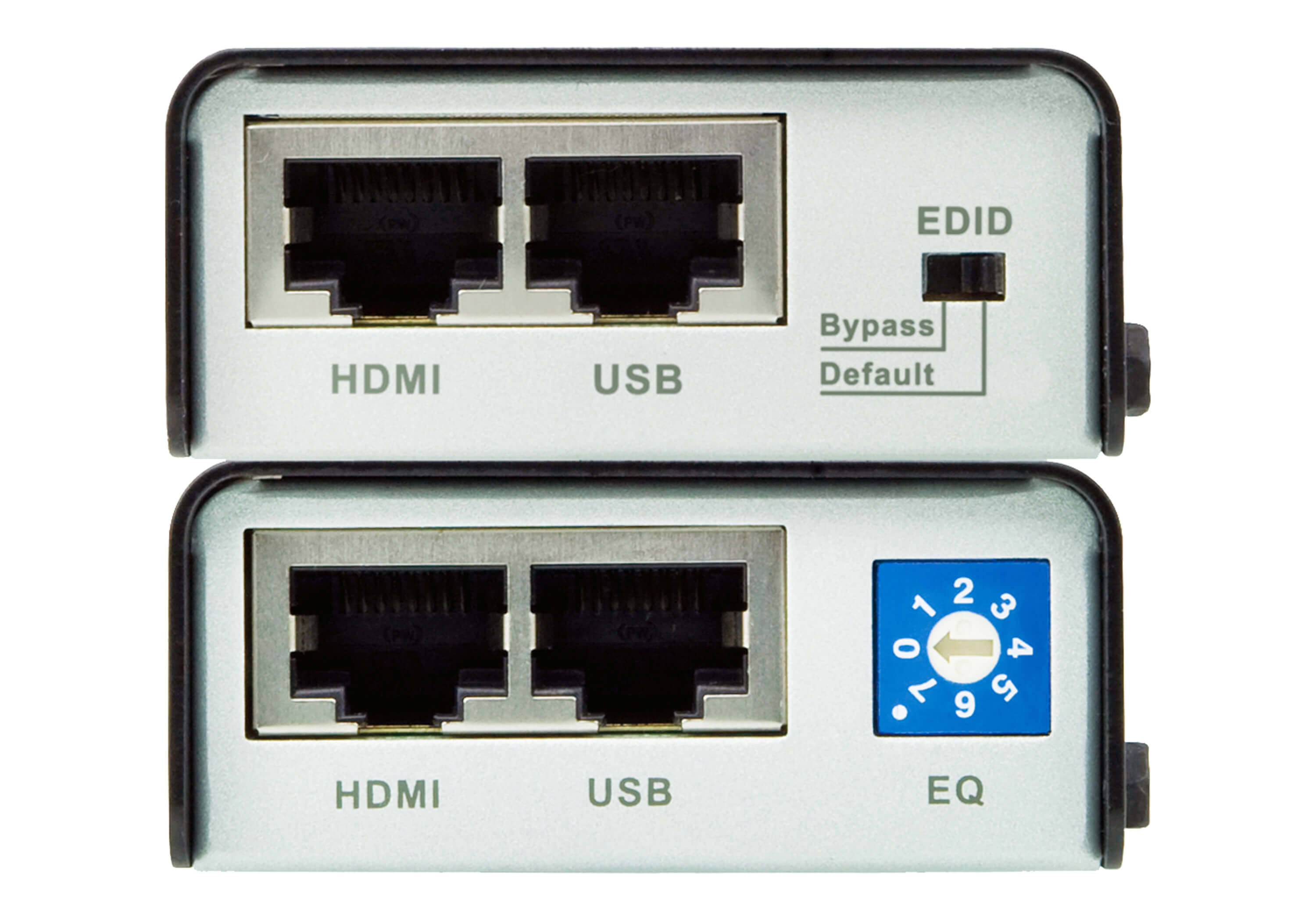

  • EQ Adjustment: 8‑segment equalization switch
  • Power: DC 5 V Adapter
  • Housing: Metal
  • Operating Temp: 0–50 °C
