Overview

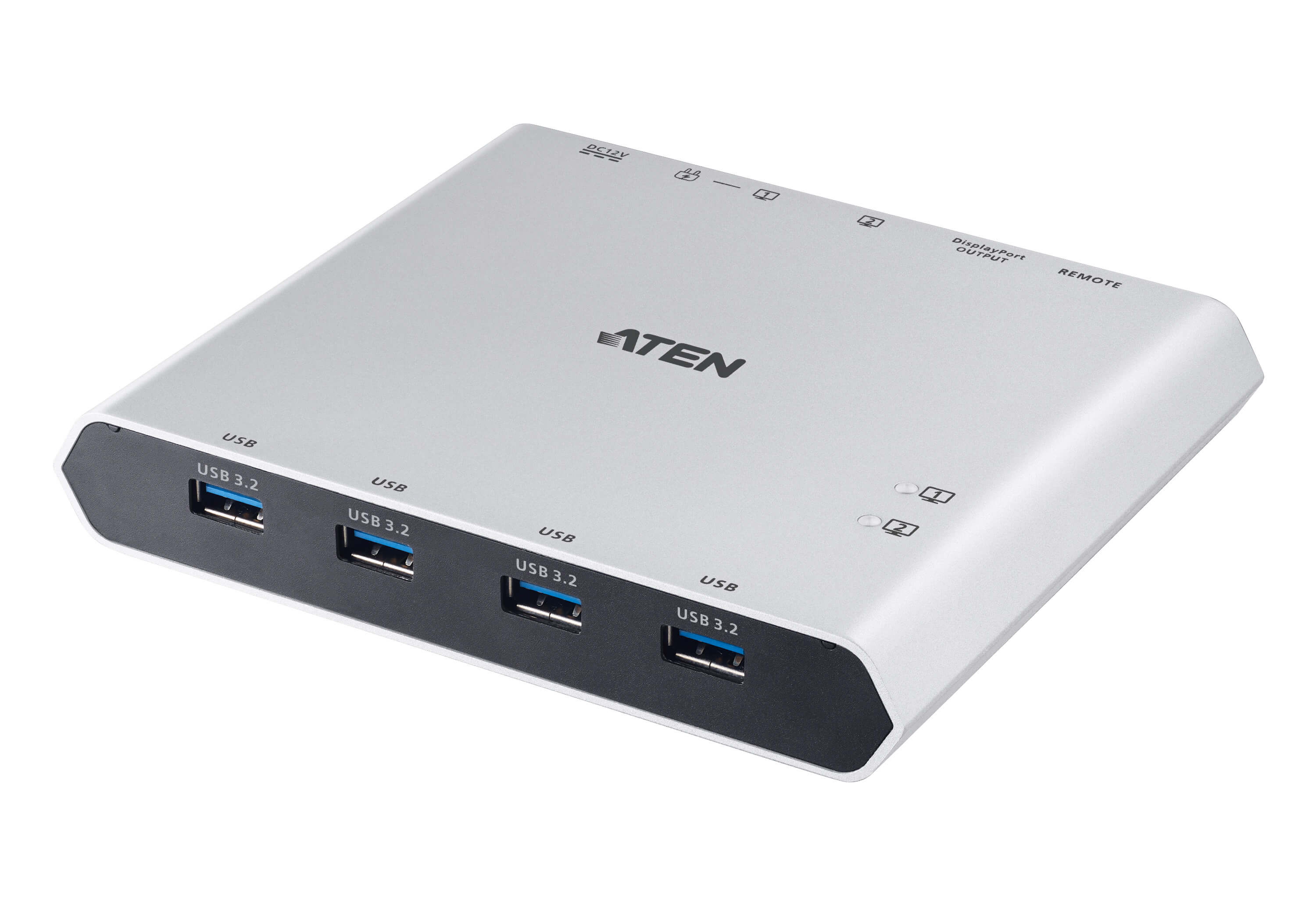

The ATEN US3311 combines a USB‑C KVM switch and multiport dock into one compact device, enabling seamless switching between two USB‑C host computers using a single console setup. It supports DisplayPort video output up to 4K 3840 × 2160 @ 60 Hz, and with DisplayPort 1.4 Alt Mode it can also handle higher video modes when supported by the host. The built‑in four USB 3.2 Gen 1 Type‑A ports deliver high‑speed data transfer up to 5 Gbps, perfect for keyboards, mice, storage, webcams, and other peripherals. USB Power Delivery (PD 3.0) lets you charge connected devices with up to 100 W of laptop power via USB‑C, making it ideal for modern hybrid and mobile workstations. ATEN’s Video DynaSync™ technology ensures proper display resolution settings when switching sources, and the unit supports plug‑and‑play operation with a dedicated physical switch button.
Technical Features
- Brand: ATEN
- Model: US3311
- Device Type: 2‑Port USB‑C DisplayPort KVM Dock Switch

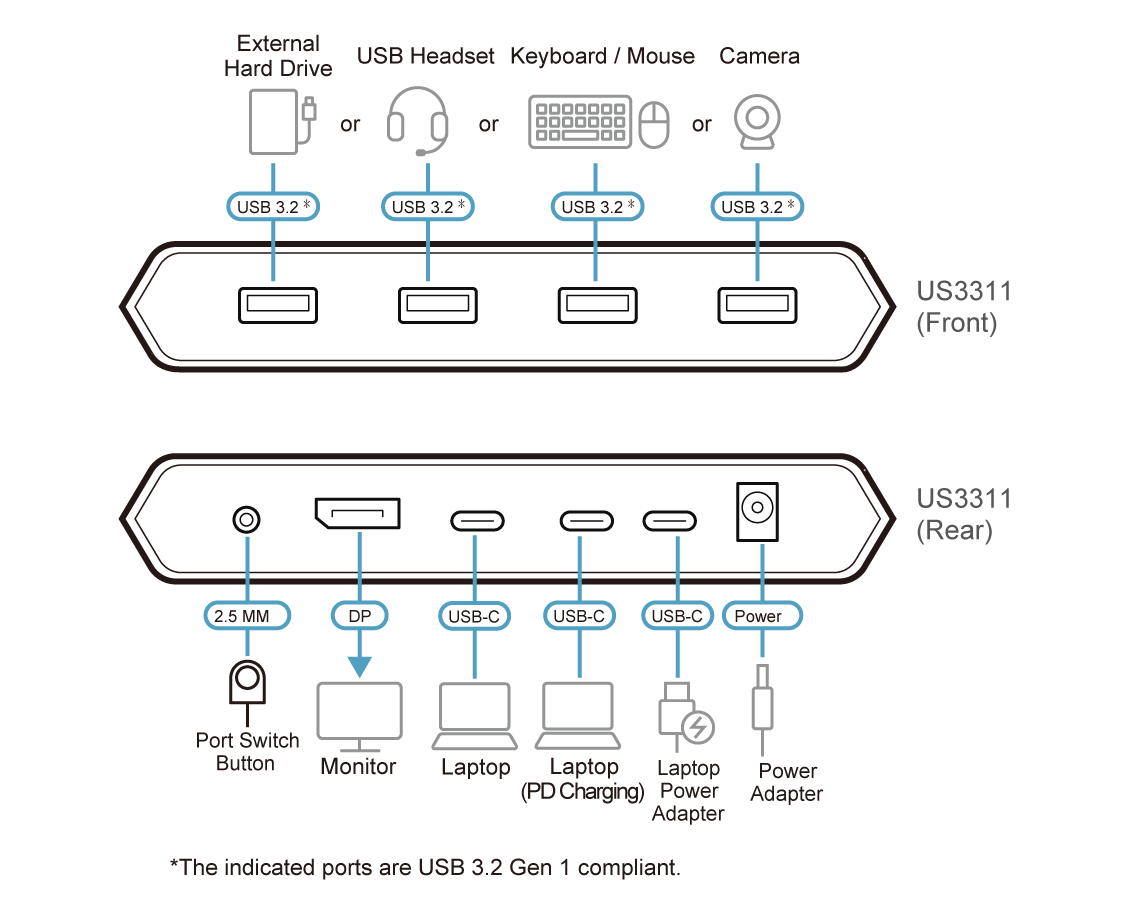

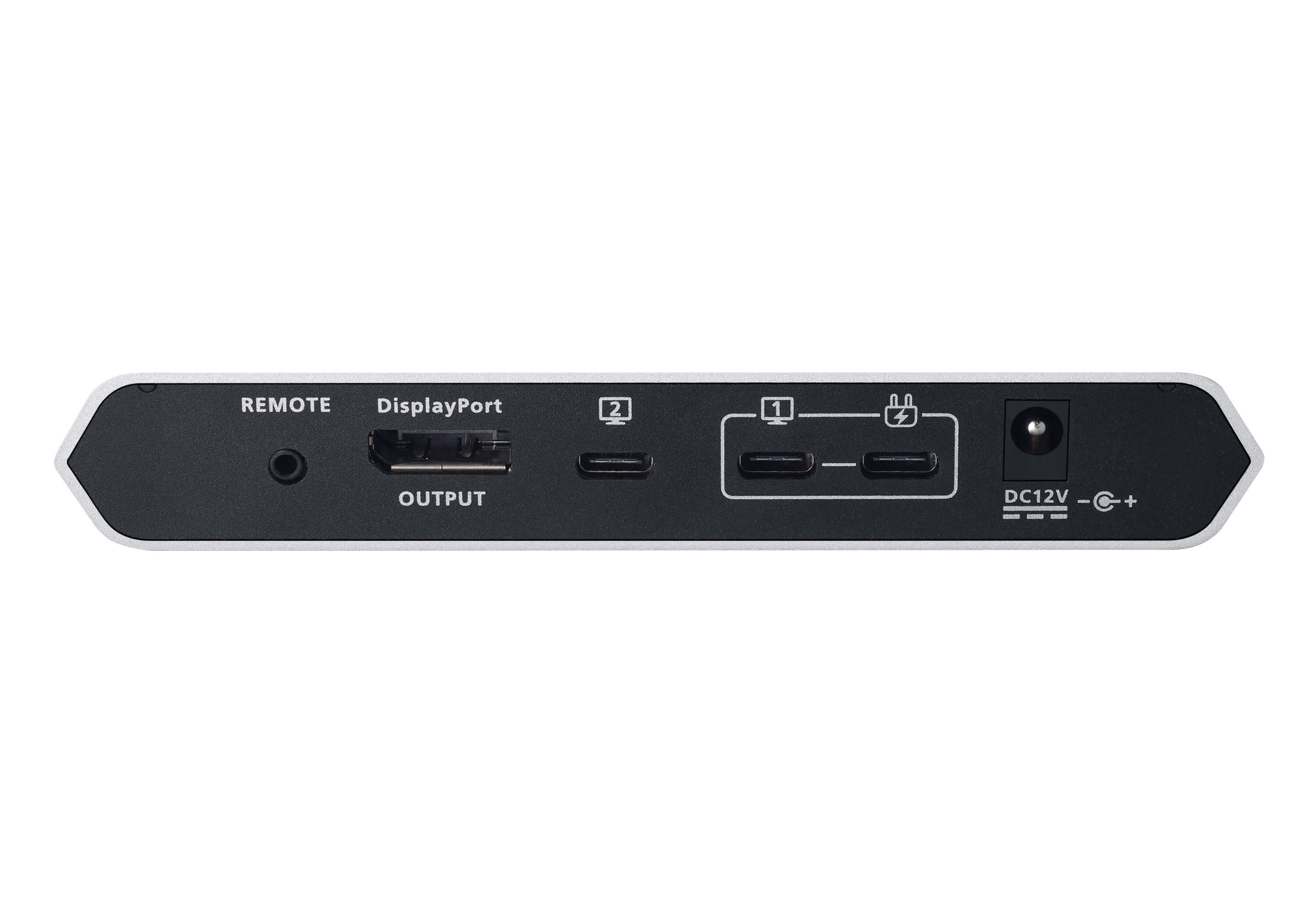

- Computer Connections: 2 × USB‑C (DP Alt Mode)
- Video Output: 1 × DisplayPort Female
- Supported Resolution: Up to 3840 × 2160 @ 60 Hz (True 4K)

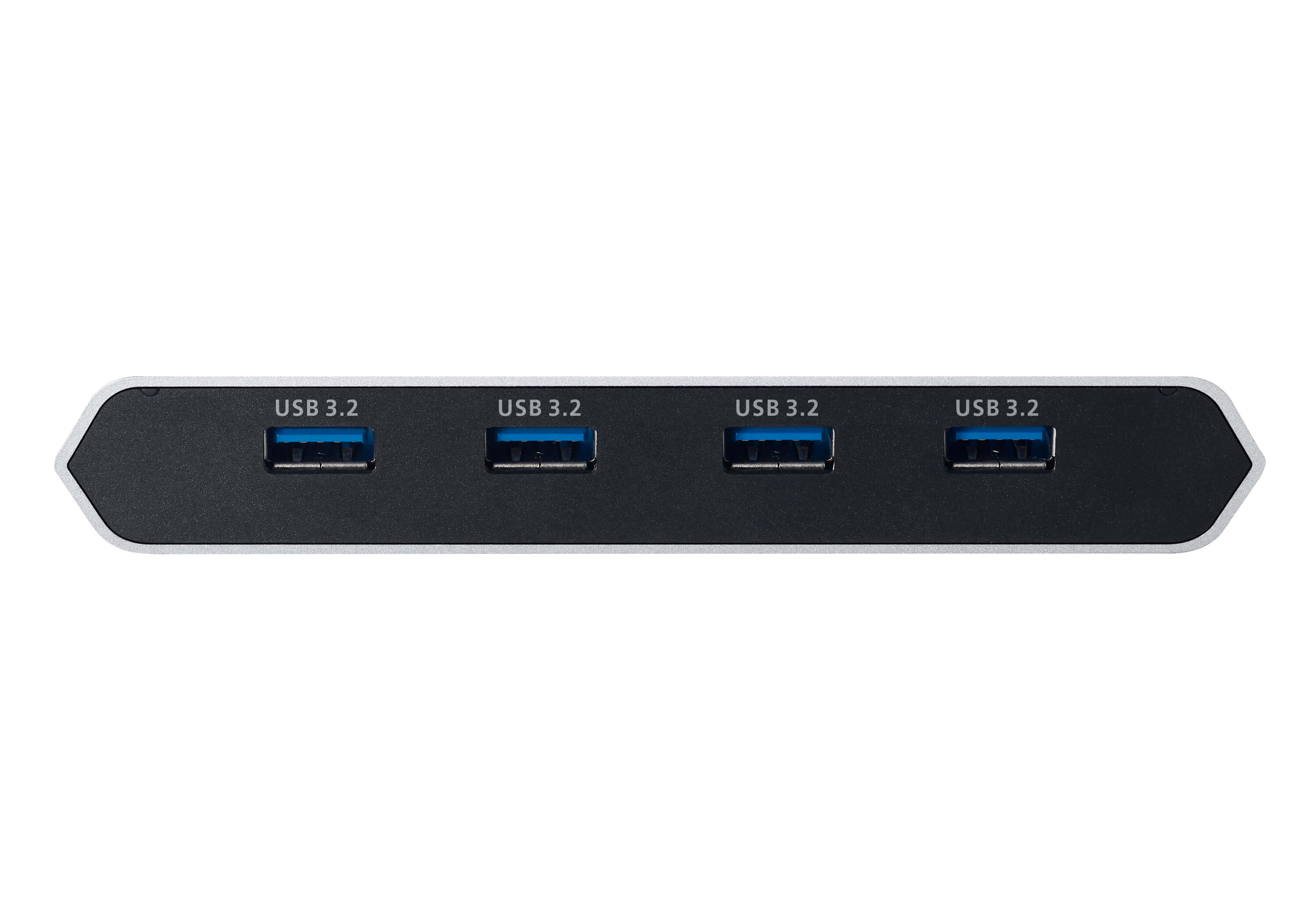

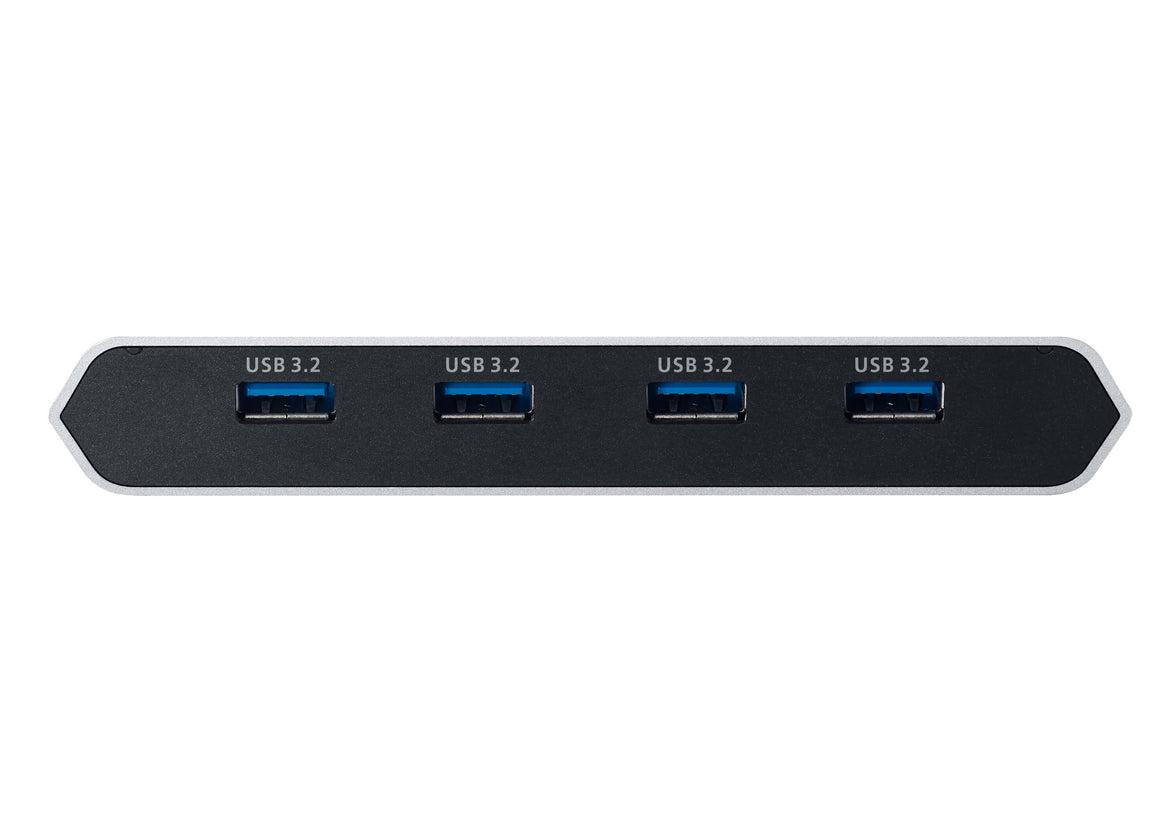

- USB Ports: 4 × USB 3.2 Gen 1 Type‑A
- Data Transfer Rate: Up to 5 Gbps
- Power Delivery: USB‑C PD up to 100 W
- Connectors: DC jack for 12 V 3.3 A power
- Switching Method: Dedicated port switch button
- Video Technology: ATEN Video DynaSync™
- Plug‑and‑Play: Yes (no drivers needed)
- Operating Temperature: 0 °C – 40 °C
- Storage Temperature: ‑20 °C – 60 °C
- Humidity: 0‑80 % non‑condensing
- Housing: Aluminum
- Dimensions: 14.30 × 11.90 × 2.38 cm
- Weight: approx. 0.35 kg
