Algo-8190

Algo-8190

£943.42 GBP
Sale price: £943.42 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • High visibility clock.
Out of stock
EAN: 8190
SKU: Algo-8190
Vendor: Algo
Order within xx hours for delivery on
Quantity
  • High visibility clock.
  • Public address (PA) IP speaker.
  • Configuration via user friendly web interface or auto-provisioning.

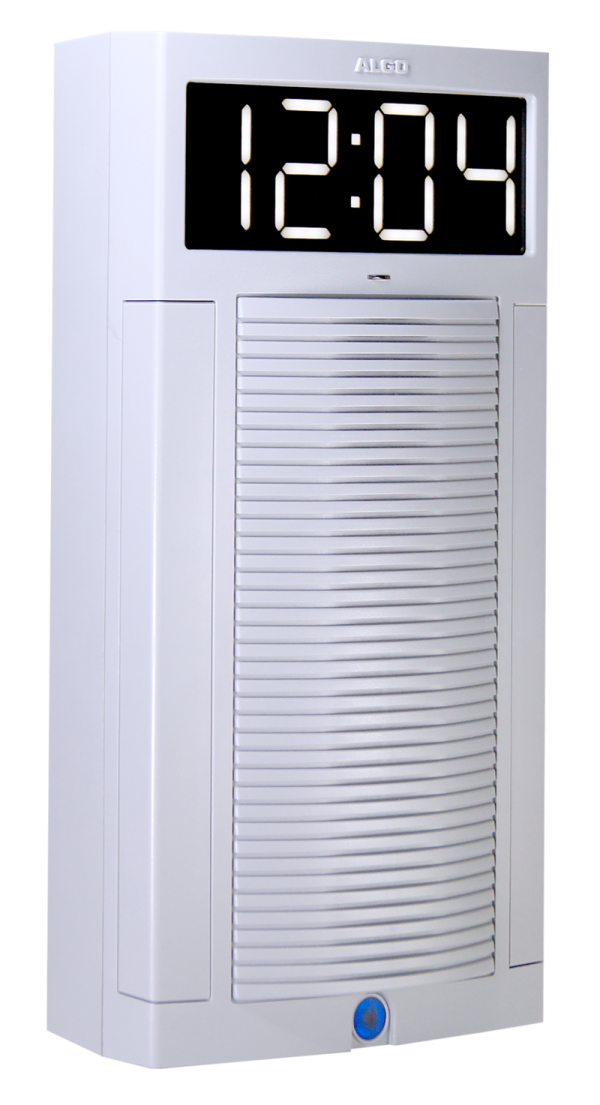

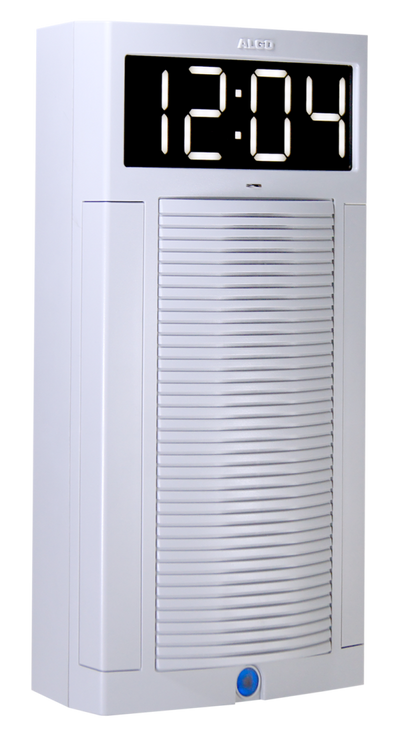

  • The Algo 8190 Speaker (main unit with integrated clock)
  • A wall mount metal bracket
  • An Algo screwdriver

datasheet

Overview

The Algo 8190 SIP Speaker serves as an IP paging speaker designed for various applications, including classrooms and commercial public address (PA) systems. This speaker functions as a fully compliant 3rd party SIP endpoint, making it compatible with a wide range of hosted/cloud and premise-based VoIP telephone systems.

Technical Features
  • Power Input
    • PoE IEEE 802.3af or 802.3at (PoE+ recommended)
    • (Max 30W) - Idle nominal 2.0W without clock active
  • SIP
    • Paging extension (with or without hands-free talkback)
    • 10 Audible/Visual alerting extensions
    • UDP, TCP, TLS, RTP, SRTP
    • Multicast: Receive 50 zones
    • IGMP, RTP, Polycom Group Page, InformaCast
  • Audio Codecs
    • G.711 A-law, G.711 u-law, G.722 Wideband
  • Configuration
    • Web interface or provisioning server
    • Web Interface: HTTP, HTTPS
    • Provisioning: TFTP, FTP, HTTP, HTTPS
    • DHCP Options 66, 150, 160
    • Reboot via SIP check-sync
  • Networking
    • IPv4, DHCP, VLAN, MDNS
    • Link Layer: LLDP, CDP
    • QoS: DSCP
    • Supervision: SNMP
    • NAT: STUN, TURN, CRLF Keep Alive
    • SIP Outbound
    • Address Resolution: DNS, SRV Record
    • Redundancy: Secondary and tertiary SIP server
    • Time: NTP Server (up to four)
  • Enclosure
    • High impact UV stabilized flame retardant plastic - light grey with concealed metal mounting bracket
  • Button Functions
    • Call SIP Extension
  • Speaker
    • 4 Element wideband array Neodymium
  • Audio
    • SPL: 98 dB SPL @ 1m
    • Freq Response: 100 - 15,000 Hz +/- 3dB
    • Dispersion Angle: 140 deg H x 25 deg V (-6dB 2 kHz)
    • Microphone: Omnidirectional
    • Talkback & ambient noise monitoring
    • Audio Memory: 1 GByte audio storage
  • Relay Output
    • Normally open or normally closed dry contact 50mA 30V
    • Max. Activation event configurable
  • Relay Input
    • Max 6.5 kOhm
