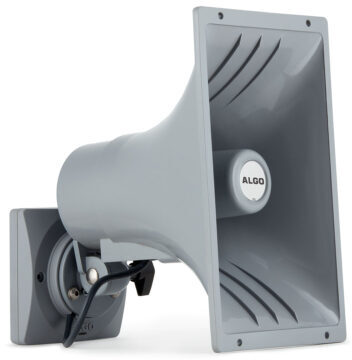

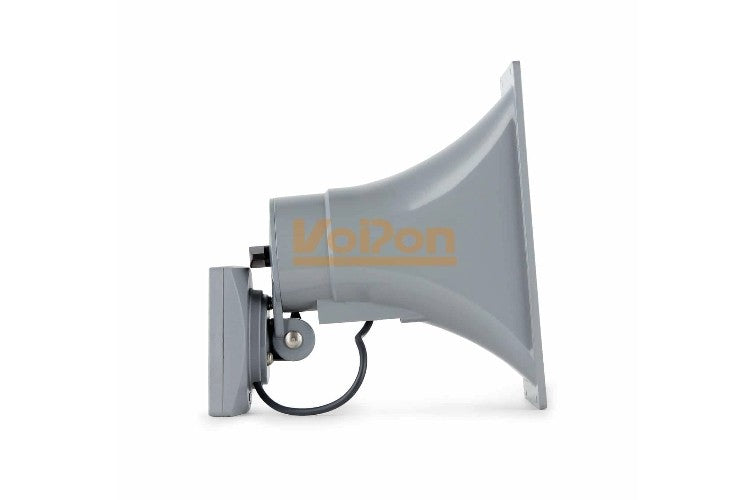

Algo 1196 Satellite Horn Speaker

Algo 1196 Satellite Horn Speaker

£262.39 GBP
Sale price: £262.39 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Satellite speaker technology: capable to power and supervise satellite speakers.
In stock, 40 units
EAN: 1196
SKU: Algo-1196
Vendor: Algo
Order within xx hours for delivery on
Quantity
  • Satellite speaker technology: capable to power and supervise satellite speakers.
  • PoE: PoE and PoE+ (Power over Ethernet).
  • Protocols supported: SIP, Multicast, Polycom Group Page, InformaCast, Revolution.
  • Ambient response: Ambient noise responsive.
  • Algo 8196 IP PoE+ Horn Speaker: The main speaker unit, which is SIP-compliant and IP66 rated for indoor or outdoor use.
  • Mounting Bracket: Hardware for mounting the speaker to a wall, ceiling, or double-gang electrical box.
  • Gaskets: Supplied to create a weather-tight seal for outdoor or wet location installations.

datasheet

Overview

For expanded coverage, up to three satellite speakers may be connected to the 8196 speaker sharing the 16W of available audio power. The 8196 IP PoE+ Horn Speaker can provide significant savings when combined with one or more 1196 satellite speakers. Satellite speakers are connected to the 8196 in a daisy chain fashion using CAT5/CAT6 standard patch cables. Each 1196 Satellite Speaker attached is detected by the 8196 IP Speaker automatically and can be monitored for connectivity. The number of attached satellite speakers is displayed in the 8196 web GUI and also visible in the 8300 Supervision Controller, if deployed. Identical in appearance and acoustical output to the 8196 IP speaker, the satellite speakers can provide ambient noise response based on the 8196 microphone noise detection and by default automatically adopt the zone and volume settings of the 8196 speaker.

Technical Features
  • Power
    • PoE / PoE+ 48 V PoE IEEE 802.3af/at
    • Max 25.5 W - Idle nominal 2.5 W
  • SIP
    • Extensions: 50 Page & 10 Alerting/Ring extensions with multicast scalability
    • Transport Protocols: UDP, RTP, TCP
    • Security: TLS, MTLS, SRTP
  • Multicast Compatibility
    • Multicast: RTP Multicast (Send & Receive 50 zones)
    • Third Party Multicast: PolycomTM Group Page, SinglewireTM InformaCast, Syn-AppsTM Revolution
  • API
    • API: RESTful API
  • Digital IO
    • Relay Input: Normally open or normally closed dry contact supervision
    • Compatible with Algo 1202 and 1203 Accessories
  • Satellite Speakers
    • Quantity: Up to 3 x 1196 Satellite Ceiling Speaker
    • Speaker Connections: Patch cable 4 Pair UTP 24 AWG RJ45 plug terminated T568A or T568B "Straight-Through". Maximum recommended patch cable length 50 feet (13m) between each speaker.
    • Supervision: Auto-detection and monitoring of up to three satellite speakers
    • Configuration: Via host 8196 IP Speaker web interface
  • Audio
    • Audio Codecs: G.711 A-law, G.711 u-law, G.722, Opus 48 kHz
    • Driver Response: 350 – 8,300 Hz (-10 dB)
    • Driver Sensitivity: 108 dBA 1m/1W (1kHz)
    • Max Audio Power: 16 Watts (shared equally between 8196 and up to 3 x 1196)
    • Dispersion Angle: 80 degH x 50 degV (2 kHz -6 dB)
    • Audio Memory: 1 GB
    • Microphone: Omni-directional, talkback and ambient noise monitoring
    • Audio Controls: Volume, AGC, Latency, LF Cut
    • Anti-Feedback Delay: Cache to memory and release
  • Network
    • Network: IPv4, IPv6, DHCP, VLAN, MDNS
    • Secure SIP: TLS, MTLS, SRTP
    • Link Layer: LLDP, CDP
    • QoS: DSCP (SIP, RTP, RTCP)
    • Web Interface: HTTP, HTTPS
    • Provisioning: TFTP, FTP, HTTP, HTTPS
    • DHCP Options 66, 150, 160
    • Reboot via SIP Check-sync
    • NAT: STUN, TURN, CRLF Keep Alive, SIP Outbound
    • Address Resolution: DNS, SRV Record
    • Supervision: SNMP V1.3, RTCP, Algo 8300
    • Redundancy: Secondary & Tertiary SIP Servers
  • Environmental & Mechanical

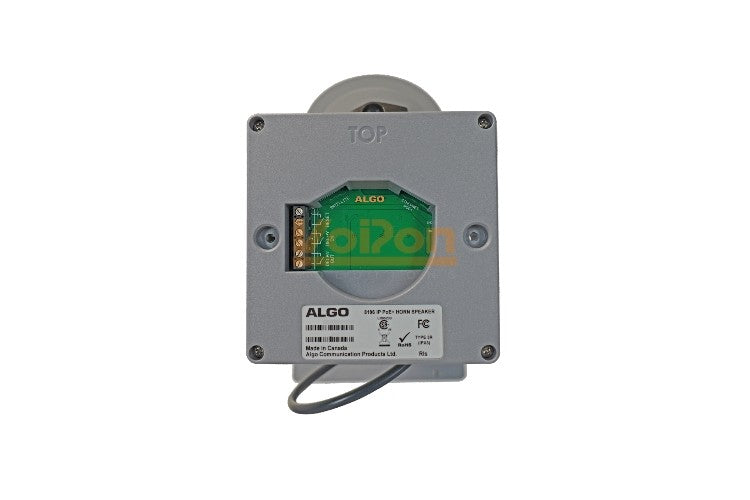

    • Satellite Speaker Connector: 1 x RJ45 output connector
    • Environmental: -40 to 122 deg F (-40 to +50 degC). Designed to meet IP66 requirements. Suitable for outdoor and wet environments when properly installed.
    • Horn & Enclosure: UV stabilized outdoor rated plastic with stainless steel mounting hardware
    • Horn Mouth Dimensions: 11” x 6.6” (28cm x 16.8cm)
    • Mounting: Wall, ceiling, or double gang electrical box. Pole mount bracket available.
    • Aim Adjustment: Three-axis
    • Weight: 6 lb (2.7 Kg)
