9160501

9160501

£862.80 GBP
Sale price: £862.80 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 8 I/Os with supervised inputs and configurable levels
  • 8 form C relays
Out of stock
EAN: 7331021049895
SKU: 9160501
Vendor: 2N
Order within xx hours for delivery on
Quantity
  • Interfaces:

    Digital I/O: 8x I/O, 40V, open drain, max 100mA
    Relays: 8x form C relays, NO/NC contacts, max 1A, 48V
    Connectors: 1x RJ45 10BASE-T/100BASE-TX, 1x DC IN, 2x DC out, 8x inputs/outputs, 8x relays, 1x tamper switch
  • Network:

    Security: Password protection, IP address filtering, HTTPS encryption, IEEE 802.1X, digest authentication
  • Power Supply:

    Power In: 28V, 26W
    PoE: 802.3af (Class 0–12.95 W)
    Power Out: 12V

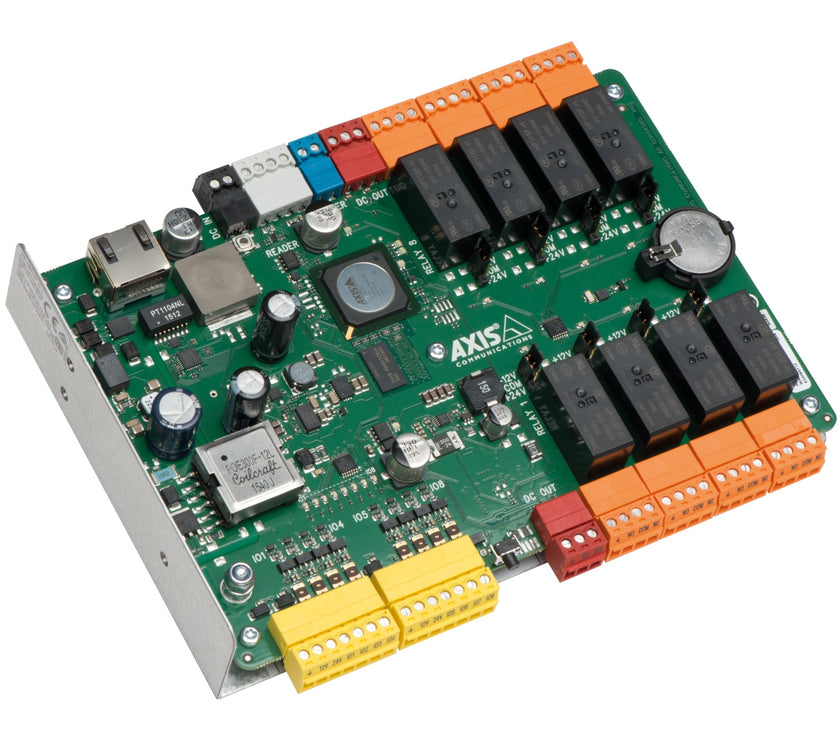

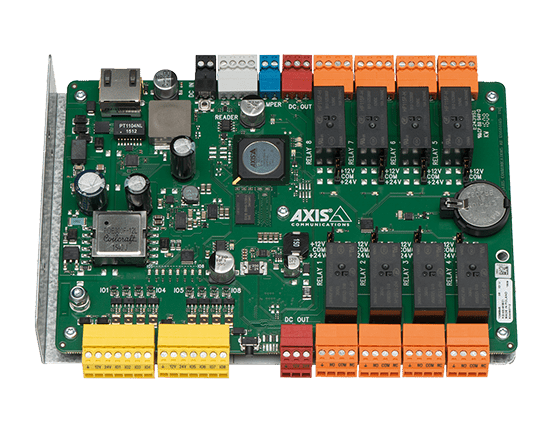

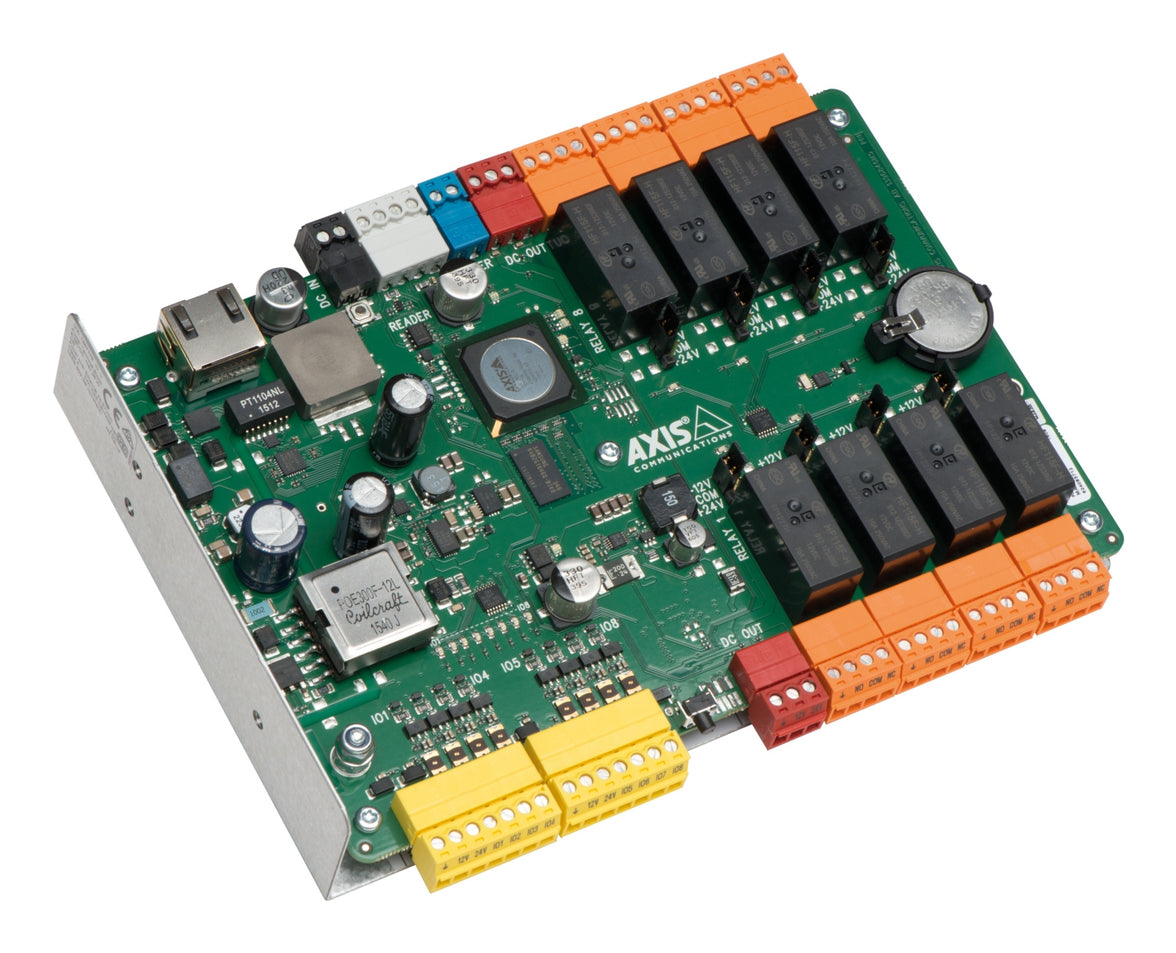

  • AXIS A9188 Network I/O Relay Module for lifts
  • Quick reference guide
  • Owner authentication key
  • Torx key
  • 8 x jumpers
  • 1 x blue 2-pin connector
  • 1 x black 2-pin connector
  • 2 x red 3-pin connectors
  • 1 x white 4-pin connector
  • 8 x orange 4-pin connectors
  • 2 x yellow 7-pin connectors

Datasheet

Overview

The relay is part of the lift access control solution and is dedicated exclusively to this purpose. One relay can control up to 8 floors and you can connect up to 8 AXIS A9188 relays for lifts to one 2N IP intercom or access unit. It means the solution is suitable for up to 64 floors. See our FAQ section for information on how to connect the AXIS A9188 Network I/O Relay Module for lifts.


Technical Features
  • 8 I/Os with supervised inputs and configurable levels
  • 8 form C relays
  • 12 and 24 V DC output
  • PoE+ or 12 and 24 V DC input
  • Open API for software integration, including VAPIX
