Overview

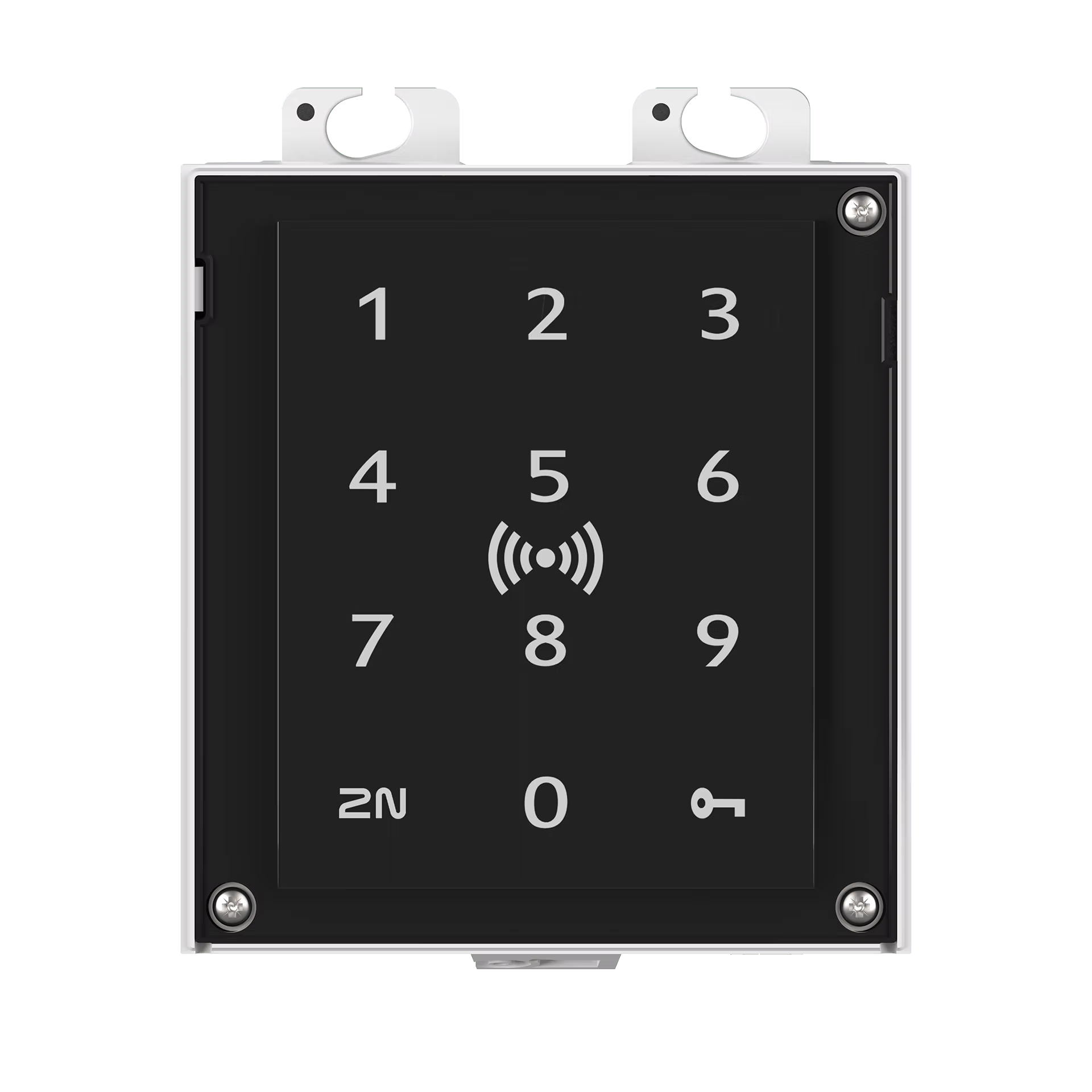

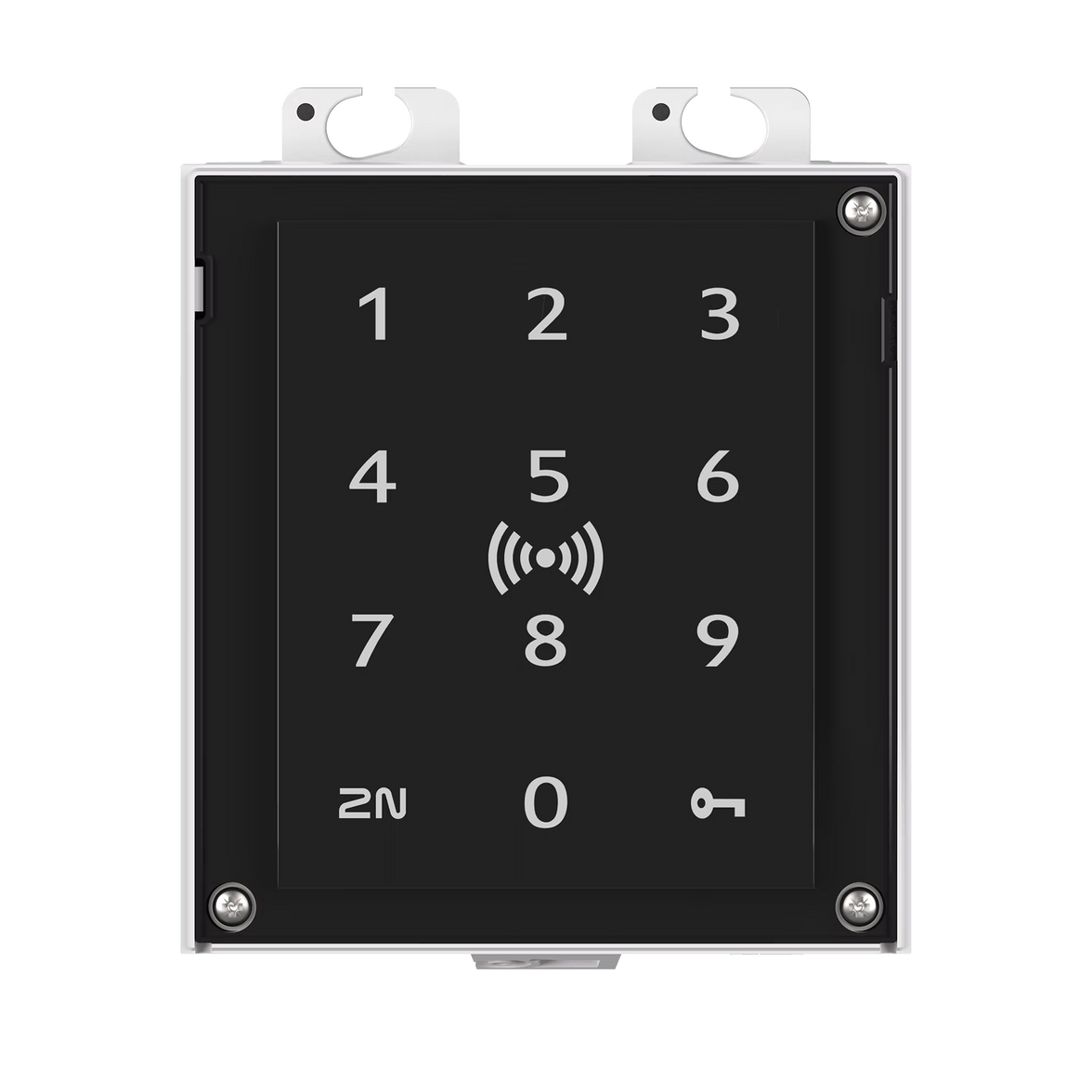

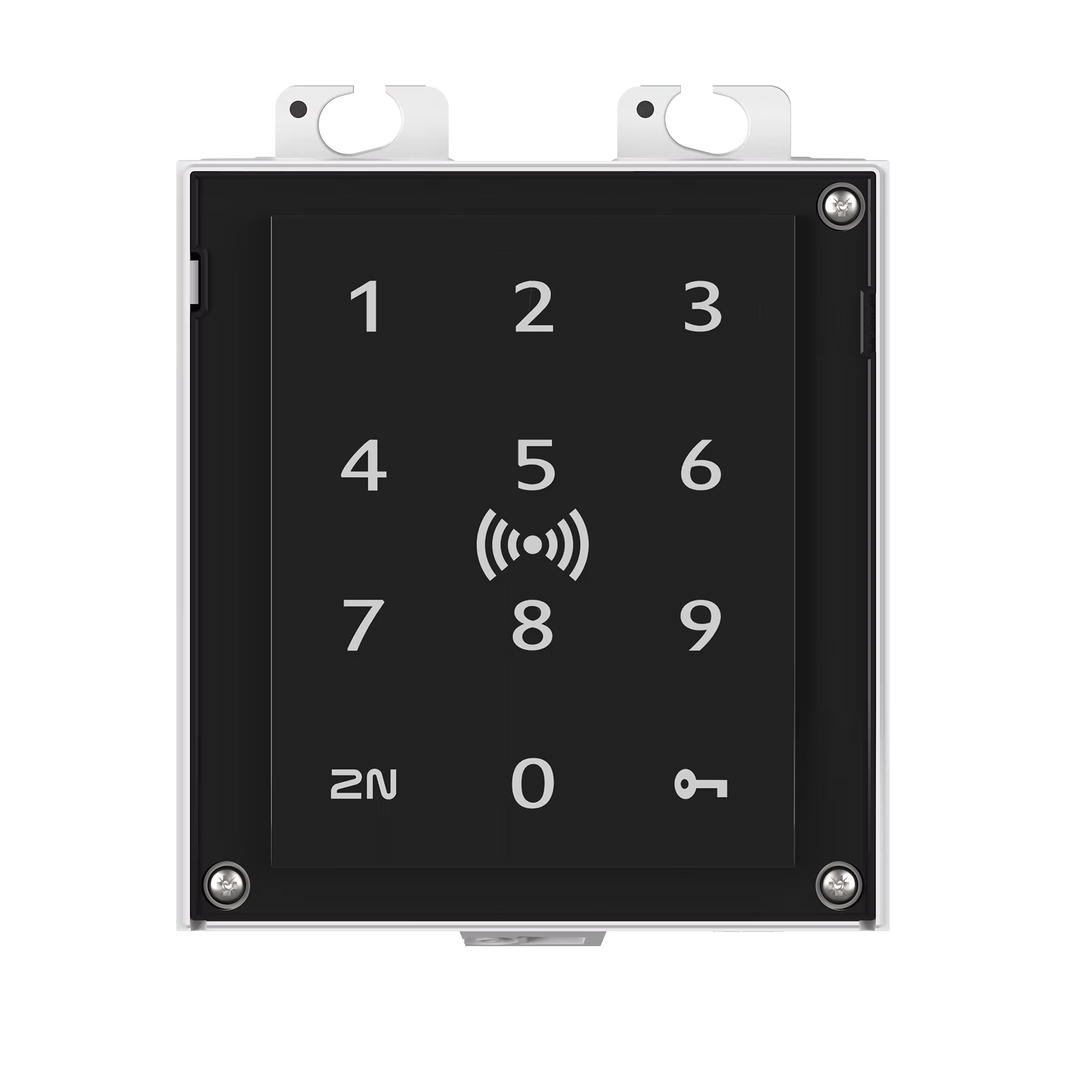

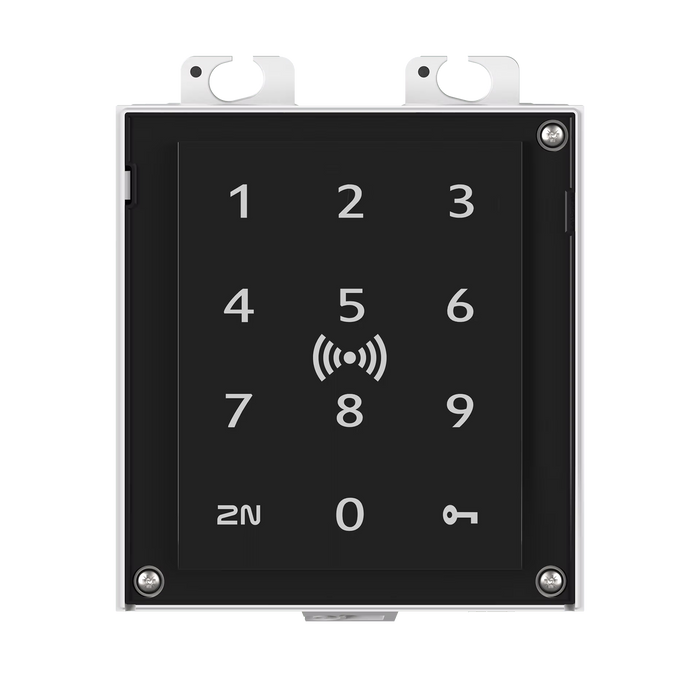

The 2N Access Unit 2.0 Touch Keypad & RFID (9160346) is an advanced network access control device designed for modern commercial, residential, and enterprise environments. It combines a highly responsive capacitive touch keypad with RFID card authentication, allowing users to gain access through PIN codes, RFID cards, NFC devices, or combined two-factor authentication.
Built with IP technology, the unit integrates both controller and reader functionality into a single compact device, simplifying installation and centralized management. It supports multiple RFID standards including 125kHz and 13.56MHz technologies, making it compatible with a wide range of access credentials.
Designed for durability, the unit carries IP54 and IK08 protection ratings for use in protected outdoor and demanding environments. It supports PoE power, remote configuration, silent alarm functionality, and smart automatic calibration for reliable operation in offices, residential complexes, hotels, hospitals, and secure facilities.
Technical Features
- Brand: 2N
- Model: 9160346
- Product Type: IP Access Control Unit
- Authentication Methods: PIN Code, RFID, NFC
- RFID Frequencies: 125kHz and 13.56MHz
- Supported Technologies: MIFARE, DESFire, NFC, PICard
- Connectivity: 10/100BASE-TX Ethernet
- Power Options: PoE 802.3af or 12V DC
- Protection Rating: IP54 / IK08
- Operating Temperature: -40°C to +60°C
- Mounting Options: Surface or Flush Mount
- Dimensions: 107 × 130 × 28 mm
