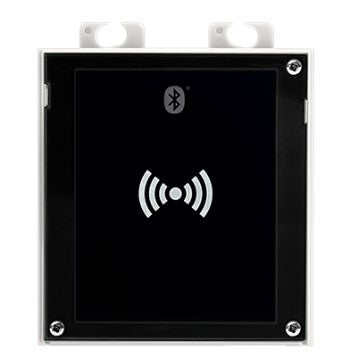

2N 91550945 IP Verso – Bluetooth & (secured) RFID

2N 91550945 IP Verso – Bluetooth & (secured) RFID

£540.08 GBP
Sale price: £540.08 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Compatible with Bluetooth 5.0
  • Supports 125 kHz frequency
In stock, 2 units
EAN: 8595159515946
SKU: 91550945
Vendor: 2N
Order within xx hours for delivery on
Quantity
  • Power Supply: PoE and/or 12V ±15%/2A DC
  • PoE: 802.3af (Class 0 - 12.95W)
  • Recommended Cabling: Cat-5e or better
  • Audio: Buzzer (97dBA, 2730Hz) and microphone
  • Weight (Net): 0.20kg
  • Weight (Gross): 0.40kg
  • Reader Module
  • Bus Connector Cable
  • Fixing Kit
  • Quick Start Guide

Datasheet

Overview

The Bluetooth & RFID module for 2N® IP Verso and 2N® LTE Verso combines the currently leading RFID technology with a modern approach to access control based on the Bluetooth technology. Thanks to the multi-frequency RFID reader it reads both, unsecured 125kHz cards and smart 13.56MHz cards. Doors can also be opened with the aid of a smartphone with the installed 2N® Mobile Key application! By tapping the button in the app or by simply touching the reader. Download datasheet.

Technical Features
  • Version: Compatible with Bluetooth 5.0 (BLE)
  • Range: Short - typically up to 9 ft; Long - typically up to 30 ft (*distances are approximate and may vary by phone model and installation environment)
  • Security: RSA-1024 and AES-128 encryption
  • RX Sensitivity: Up to -93 dBm
  • Mode: Touch, tap in app, card
  • Supported Frequencies: 125 kHz and 13.56 MHz variants
