2N® IP Audio Kit 9154101

2N® IP Audio Kit 9154101

£279.92 GBP
Sale price: £279.92 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Wide supply power range
  • Bidirectional communication
    • In stock, 1 unit
    EAN: 8595159502069
    SKU: 9154101
    Vendor: 2N
    Order within xx hours for delivery on
    Quantity
    • Protocols: SIP 2.0, RTP, RTSP, HTTP/HTTPS, DHCP, SNTP, SMTP
    • Power: 9–26V DC or PoE (802.3af, Class 0, 12.95W max)
    • Audio: 10W Class D amplifier, AEC full duplex, G.711 codec
    • Network: 1x 10/100BASE-TX (RJ-45) with Auto-MDIX
    • Operating Temp: −40°C to +55°C, Humidity 10–95% (non-condensing)
    • 2N Helios IP Audio Kit
    • Installation Manual

    Datasheet

    Overview

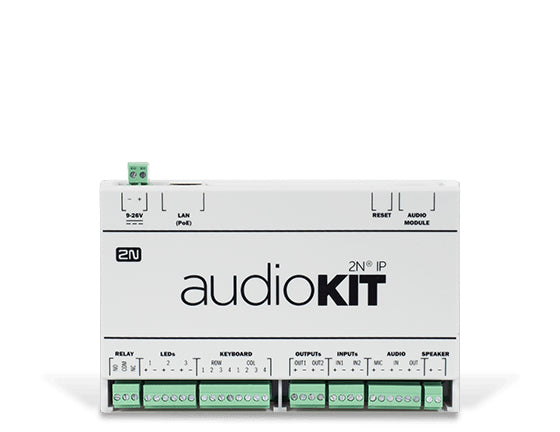

    2N® IP Audio Kit is a universal and reliable IP intercom module designed for integration in the third parties' equipment. It is provided with a number of useful functions that are not quite common in the devices of this category. Featuring the SIP standard support and compatibility with renowned IP exchange and telephone manufacturers, 2N IP Audio Kit can make use of all VoIP services available on the market.

    Technical Features
    • Industrial design and variable mounting options
    • Wide supply power range + PoE supply
    • ntegrated 10 W power amplifier
    • External amplifier connection
    • External microphone/audio signal source connection
    • Galvanically isolated relay output
    • Two controlled active 12 V outputs
    • Two galvanically isolated logic inputs
    • Up to 3 signalling LED outputs
    • Up to 16 external buttons/matrix keypad connection
    • Integrated two-port LAN switch
    • Bidirectional communication – acoustic echo cancelling
    • Configuration via web interface/special PC application
    • SIP 2.0 support
    • HTTP(S) server for configuration
    • SNTP client for server time synchronisation
    • RTSP server for audio streaming
    • TFTP client for automatic configuration and firmware update
