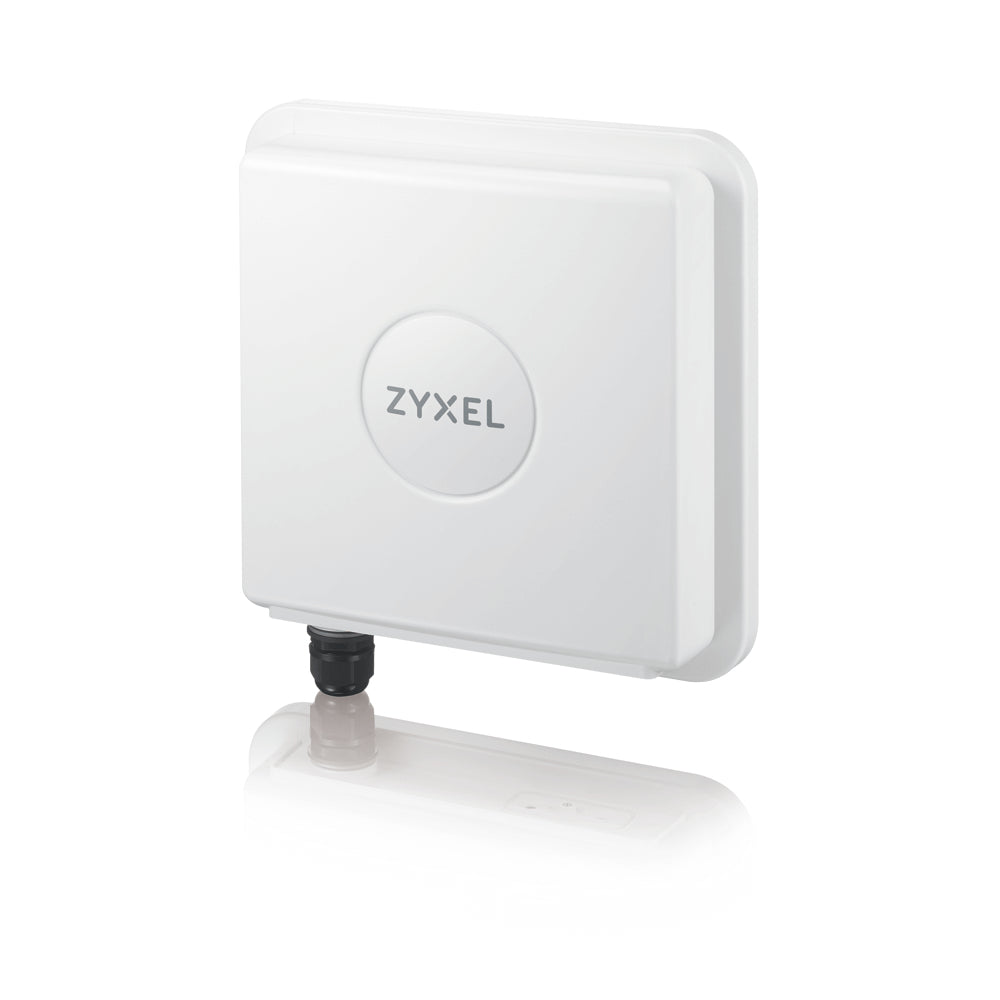

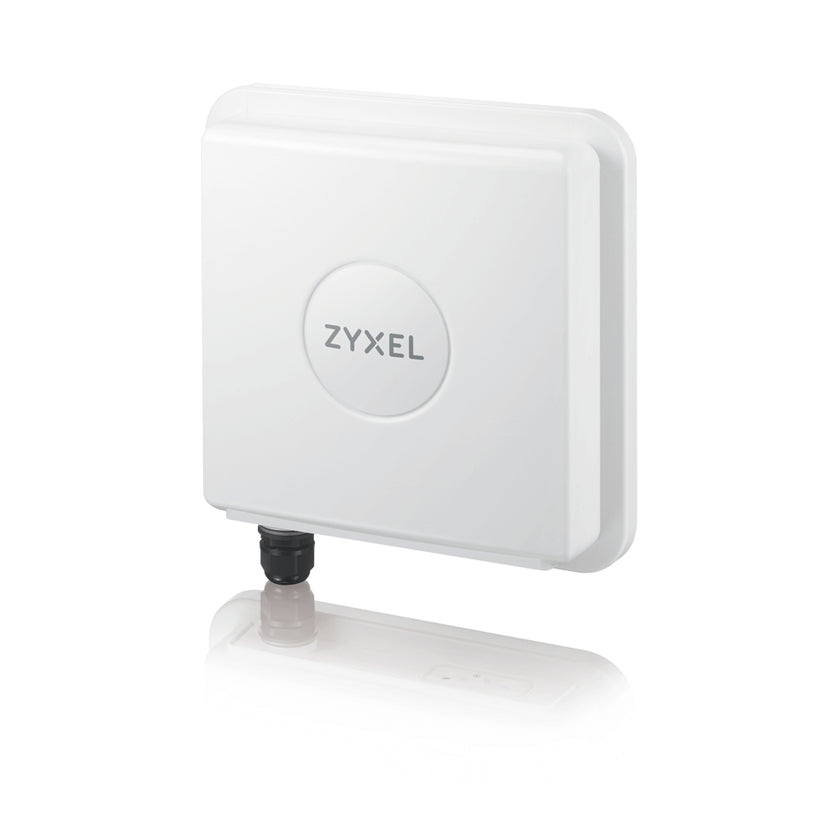

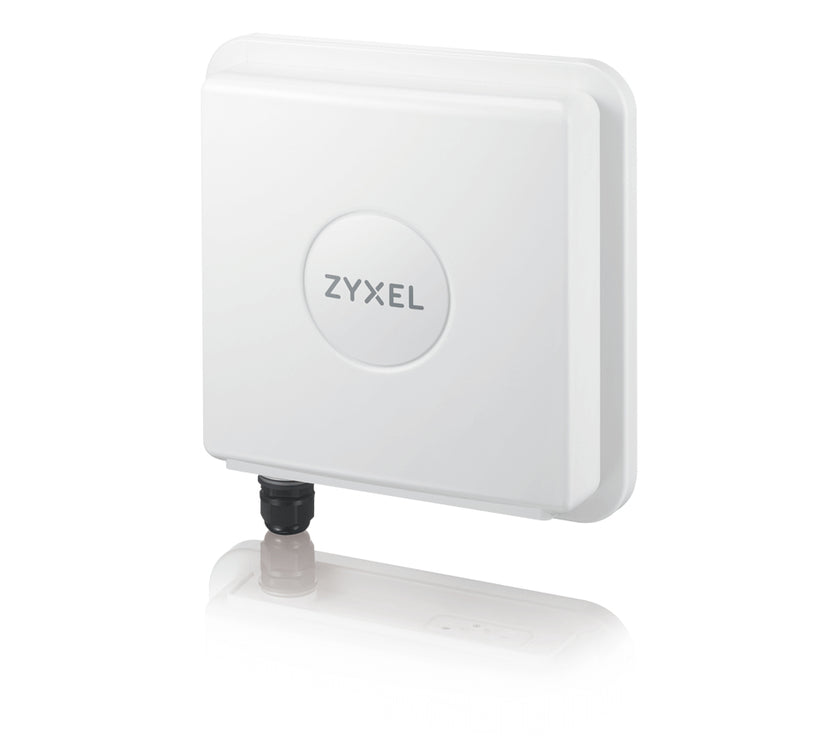

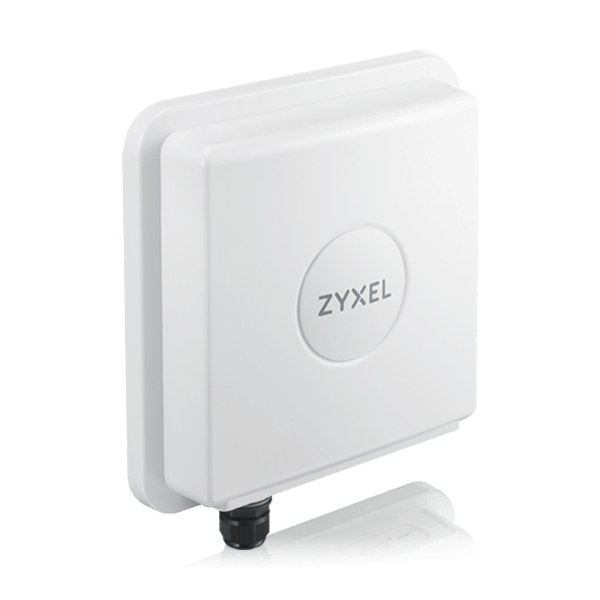

Zyxel LTE7490-M904

Zyxel LTE7490-M904

£214.60 GBP
Sale price: £214.60 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Zyxel mobile apps
  • Non-stop connectivity
  • DHCP server
    • Out of stock
    EAN: 4718937607006
    SKU: LTE7490-M904-EU01V1F
    Vendor: Zyxel
    Order within xx hours for delivery on
    Quantity
    • WAN connection: Ethernet WAN, DSL WAN
    • SIM card slot: Yes
    • 3G/4G USB modem compatibility: Yes
    • Wi-Fi band: Single-band (2.4 GHz)
    • Top Wi-Fi standard: Wi-Fi 4 (802.11n)
    • WLAN data transfer rate (max): 300 Mbit/s
    • Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
    • Modulation: 16-QAM, 64-QAM, 256-QAM, QPSK
    • Ethernet LAN: Yes
    • Ethernet LAN interface type: Gigabit Ethernet
    • Networking standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
    • Port forwarding: Yes
    • Port triggering: Yes
    • Dynamic DNS (DDNS): Yes
    • Mobile network generation: 4G
    • 3G: Yes
    • 4G: Yes
    • 3G standards: HSPA+, HSUPA, UMTS, WCDMA
    • 4G standard: LTE
    • 4G bands supported: 850, 900, 1800, 2100 MHz
    • Ethernet LAN (RJ-45) ports: 1
    • USB port: Yes
    • Memory card slot(s): No
    • Web-based management: Yes
    • MU-MIMO technology: No
    • Security algorithms: SSH
    • Firewall: Yes
    • Stateful Packet Inspection (SPI): Yes
    • DoS attack prevention: Yes
    • MAC address filtering: Yes
    • URL filtering: Yes
    • DMZ support: Yes
    • DHCP server: Yes
    • Universal Plug and Play (UPnP): Yes
    • Product colour: White
    • Product type: Tabletop router
    • Certification: CE, WEEE, RoHS, HSF
    • Cables included: AC, LAN (RJ-45)
    • Warranty card: Yes
    • Quick start guide: Yes
    • Antenna design: Internal
    • Antenna gain level (max): 3 dBi
    • Firmware upgradeable: Yes
    • 4G LTE Cat. 18 / DL up to 1.2 Gbps
    • 4x4 MIMO high-gain antennas
    • 802.3af/at Gigabit PoE
    • TR-069/TR-181/TR-143
    • IP68 Ingress Protection
    • Zyxel mobile apps

    Datasheet

    Overview
    Zyxel LTE7490-M904 4G LTE-A Pro Outdoor Router supports Cat. 18 and perfect for the operators who are looking for 4G LTE FWA solutions to deliver ultra-fast and high-capacity premium broadband services with deployment flexibility. Lightning-fast internet connectivity The Zyxel LTE7490-M904 4G LTE-A Pro Outdoor Router employs 3GPP UE downlink Category 18 – the top-level LTE technology with downlink data rates of up to 1.2 Gbps through 12 spatial streams on three component carriers. Built-in 4x4 MIMO high-gain antenna The Zyxel LTE7490-M904 4G LTE-A Pro Outdoor Router provides DL 4x4 MIMO high-gain antennas of up to 7 dBi per element for stronger and better signal from long-range transmission reach up to of 20 km*. The outdoor design enables it to work under near non-line-of-sight conditions to increase coverage and capacity as well as to eliminate edge corners having difficulty accessing good signals. Strengthen your competitive edge with Fixed Wireless Access (FWA) Deploying LTE7490-M904 as part of FWA allows you to extend your 4G service coverage into subscribers’ homes and workplaces without extra wire infrastructure. This secures the TCOs and increases business revenue by supporting a larger number of subscribers with a premium fixed-grade connection. Non-stop connectivity with LTE 2nd WAN for failover The wireless LTE allows you to take advantage of the 2nd WAN without a cabling plan. As long as the gateway supports "Dual-WAN Failover", you can just connect Zyxel LTE7490-M904 to the existing gateway and set LTE as the failover WAN and relieve the risk of network outage. Easy installation with Zyxel's mobile app Easy Installation is realized with a flexible wall or pole mounting kit, integrated 802.3af/at PoE injector support, and dedicated WiFi interface. The LTE7490-M904 connects to Zyxel's mobile app with intuitive RF signal strength graphics for base station alignment. Remote management, TR-069, HTTP/web GUI and FTP With TR-069, TR-181 and TR-143 support, the Zyxel LTE7490-M904 effectively secures OPEX by reducing the frequency of on-site support and by providing simplified diagnostic, configuration and troubleshooting processes. Environmentally-hardened With IP68-compliant K.21 6 kV/300 A lightning protection, the Zyxel LTE7490-M904 guarantees high-quality connections, a longer device life despite the weather and natural challenges. The LTE7490-M904 can operate within a wide range of temperature and humidity, which supports your service deployed in wide territorial scopes.

    Technical Features
    • Cellular Technology: 4G LTE-A Category 18
    • Data Rates: Up to 1.2Gbps/150Mbps (Downlink/Uplink)
    • Design: Outdoor-friendly design (IP68, withstand hurricane level winds, lightning protection)
    • Antennas: 4x Built-in high-gain wide transmission directional antennas of up to 8 dBi.
    • Power: Standard 802.3af/at PoE
    • Power Supply: No power supply included. Powered with PoE
    • Networking Feature: Dual-WAN failover function between both WAN interfaces
