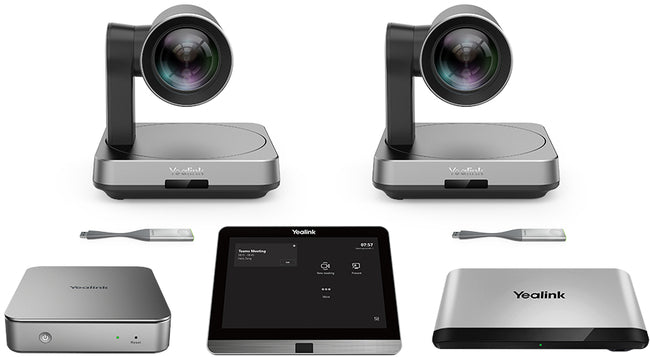

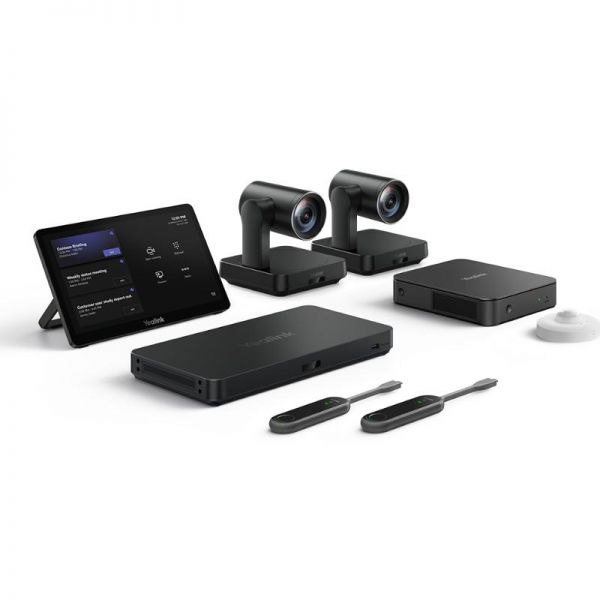

Yealink MVC940 Video Conferencing Kit for Extra Large Rooms

Yealink MVC940 is perfect for extra-large conference and training rooms, offering a comprehensive package including the high-performance MINI-PC MCore Pro, MTouch Plus touch panel, UVC84 4K PTZ camera, and AVHub for audio and video processing. The system supports up to 9 cameras at once, facilitates multispeaker tracking, and includes two UVC84 cameras with 12x optical zoom. The MTouch Plus control panel provides seamless camera control and layout switching via Yealink RoomConnect. Pair it with MVC-BYOD-Extender for versatile meeting room functionality. Plus, you can combine multiple MVC940 sets through network cables for flexible room configurations.

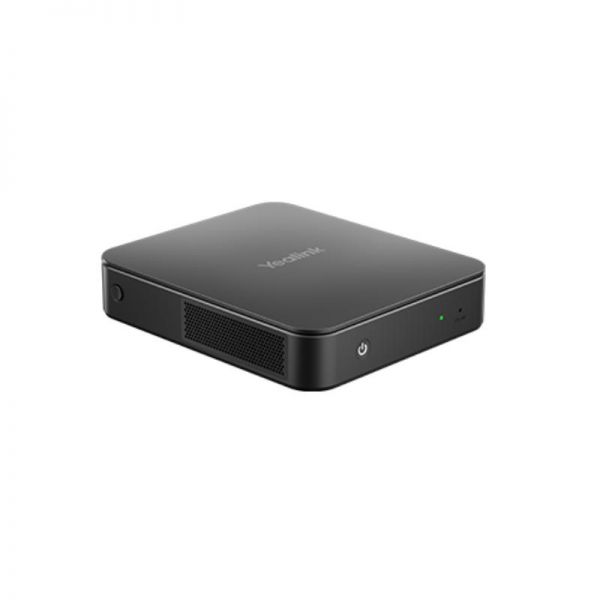

• MCore Pro, Gen-3 Mini-PC
  • 11th Gen Intel® Core i5
  • Memory: 8 GB (2 x 4GB)
  • Storage: 128 GB SSD
  • 3x HDMI video output with CEC supported
  • TPM2.0
  • Kernel DMA
  • EDID
  • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
  • Bluetooth: BT 5.2
  • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
  • 4 x USB 3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot, Integrated cable management
  • Windows 10 IoT Enterprise X64 / Windows 11 IoT Enterprise X64
  • Windows 10 IoT Enterprise License
  • Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
  • Yeallink RoomConnect

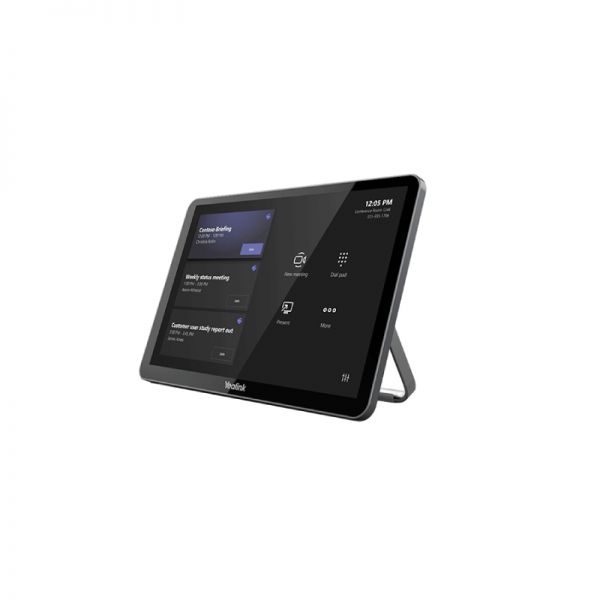

• MTouch Plus
  • 11.6-inch narrow bezel IPS display
  • 1920 x 1080 video resolution
  • Angle between screen and desktop (30° ~ 70°)
  • Adjustable angle of support frame (50° ~ 180°)
  • Support wired and wireless (with WPP30) content sharing
  • Support multi-screen control*
  • Support wireless BYOD*
  • Support external PD power supply to power the sharing device
  • Support HDMI/USB-C video input
  • Support desktop placement, desktop fixed, wall-mounted deployment
• RoomSensor
  • Detection angle: 120°
  • Adjustable detection angle: ±20°
  • Operating temperature: 0-40℃
  • Operating humidity: 10-95%
  • Power: Battery powered, 4 year life
• UVC84 USB PTZ camera
  • 4K Sensor
  • 12x optical zoom
  • Field of view (diagonal): 80°
  • Auto Framing
  • Camera presets
  • Pan range: 200°
  • Tilt range: 130°
  • 1 x Line-out (3.5mm)
  • 1 x Yealink Microphone port (RJ-45)
  • 1 x USB 2.0 Type-B
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot
• AVHub, audio and video processor
  • 2 x USB-A port
  • 1 x USB-B port
  • 1 x Codec port
  • 7 x Yealink VCH port(RJ-45)
  • 1 x RCA in/out interface
  • 1 x 6.3mm Line in interface
  • 1 x 6.3mm Line out interface
  • 1 x power interface
  • Dividable and merging meeting rooms are supported
  • Support intelligent multi-speaker tracking
• WPP30 Content Sharing
  • Key features and benefits
  • Self-built Wi-Fi Network
  • 4K/30fps Full HD Content Sharing
  • Adaptive Software/Hardware Encoding
  • Dual-band 2.4GHz/5GHz wireless networks
  • Plug and Play
  • Full-featured USB Type-C and USB Type-A Ports
  • AES & WPA Data Encryption
  • Adapt to Computers and Mobile Phones with Different Ports
  • Up to four content streams can be presented simultaneously
  • Supports annotations, whiteboards, and reverse control
  • Support BYOD
• Package Features
  • N.W/CTN: 12.1Kg
  • G.W/CTN: 13.8Kg
  • Carton Meas: 935mm x 413mm x 312mm
