Yealink MVC860-C5-000 video conferencing system

Yealink MVC860-C5-000 video conferencing system

£3,739.75 GBP
Sale price: £3,739.75 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Self-built Wi-Fi Network
  • 4K/30fps Full HD Content Sharing
  • Adaptive Software/Hardware Encoding
  • Dual-band 2.4GHz/5GHz wireless networks
Out of stock
EAN: 6938818310377
SKU: MVC860-C5-000
Vendor: Yealink
Order within xx hours for delivery on
Quantity
  • Video Solution type: Room Solution
  • Room Size: Medium Meeting Room (6-12)
  • Connects to: With PC/Laptop
  • Compatible With: Microsoft Teams
  • Camera resolution: 4K
  • Camera field of view: 90°
  • Camera Features: Auto Framing
  • Other Features: PC/Mac Compatible

Yealink MVC860-C5-000 video conferencing system

Datasheet

Overview

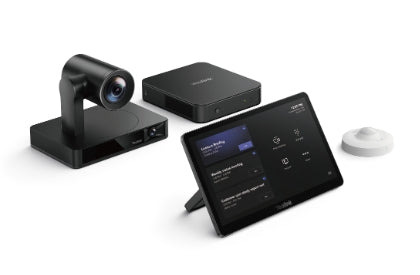

Tailored specifically for medium to spacious meeting areas, the Yealink MVC860 Microsoft Teams Room system represents the pinnacle of video conferencing solutions. This comprehensive package encompasses cutting-edge components, including the intelligent tracking camera UVC86, a compact MCore Pro mini-PC, the MTouch Plus touch panel and Room Sensor. Together, these elements harness state-of-the-art technology to facilitate seamless and intelligent collaboration for both internal and external users. Experience seamless meetings with the native Microsoft Teams-tailored user interface that allows for one-touch meeting joins. The versatile MTouch II touch panel, designed as a multi-function all-in-one solution, facilitates easy call control, camera adjustments, content sharing, and more. The panel includes a built-in Human Motion Sensor, enabling automatic activation of the conference system for immediate meeting initiation. The UVC86 PTZ camera boasts intelligent features such as auto-framing, speaker tracking, and presenter tracking, enhancing your video conferencing interactions. With 4K video output and 12x optical zoom, the camera ensures clear and detailed images, delivering a superior meeting room experience.

Technical Features

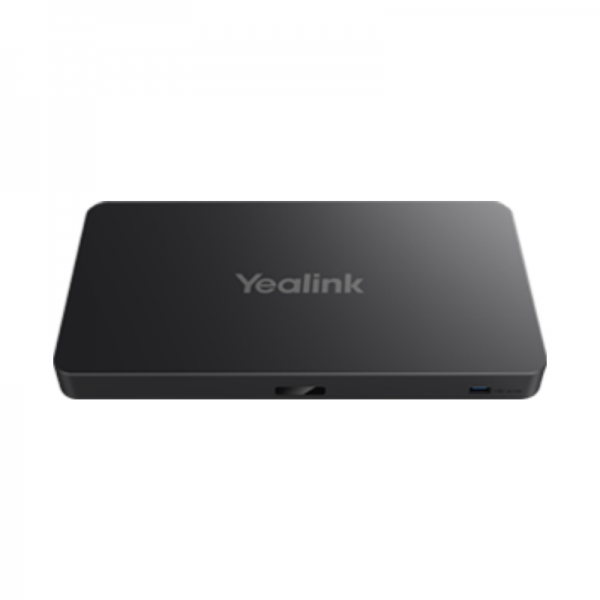

  • MCore Pro, Gen-3 Mini-PC
    • 11th Gen Intel® Core i5
    • Memory: 8 GB (2 x 4GB)
    • Storage: 128 GB SSD
    • 3x HDMI video output with CEC supported
    • TPM2.0
    • Kernel DMA
    • EDID
    • Wi-Fi: IEEE 802.11 a/b/g/n/ac/ax
    • Bluetooth: BT 5.2
    • 1 x Yealink MTouch port (RJ45), connect to MTouch Plus / MTouch E2
    • 4 x USB 3.0 Type-A
    • 1 x 10/100/1000M Ethernet port
    • 1 x Power port
    • 1 x Security lock slot, Integrated cable management
    • Windows 10 IoT Enterprise X64 / Windows 11 IoT Enterprise X64
    • Windows 10 IoT Enterprise License
    • Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
    • Yeallink RoomConnect

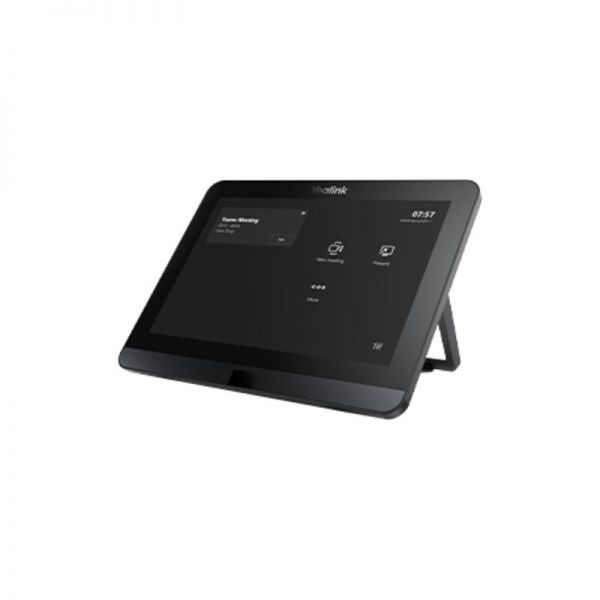

  • MTouch Plus
    • 11.6-inch narrow bezel IPS display
    • 1920 x 1080 video resolution
    • Angle between screen and desktop (30° ~ 70°)
    • Adjustable angle of support frame (50° ~ 180°)
    • Support wired and wireless (with WPP30) content sharing
    • Support multi-screen control*
    • Support wireless BYOD*
    • Support external PD power supply to power the sharing device
    • Support HDMI/USB-C video input
    • Support desktop placement, desktop fixed, wall-mounted deployment
  • RoomSensor
    • Detection angle: 120°
    • Adjustable detection angle: ±20°
    • Operating temperature: 0-40℃
    • Operating humidity: 10-95%
    • Power: Battery powered, 4 year life
  • UVC86 USB PTZ Camera
    • 4K Sensor
    • 20.4 × HD zoom (12x optical, 1.7x digital)
    • Angle of view: -90° DFOV, 81° HFOV, 50° VFOV (Telephoto lens); -120° DFOV, 110° HFOV, 78° VFOV (Panoramic lens)
    • Auto-framing
    • Speaker tracking
    • Presenter tracking, support area trigger and gesture control
    • Multi-focus
    • Picture-in-picture
    • Up to 9 preset positions can be set
    • Support wireless BYOD*
    • Horizontal rotation: 200°
    • Vertical rotation: 130°
    • 1 x HDMI output
    • 1 x Yealink microphone port (RJ-45)
    • 1 x USB 3.0 Type-B port
    • 1 x USB 2.0 Type-A Port
    • 1 x Power Port
    • 1 x Security Lock
    • 1 x Reset Hole

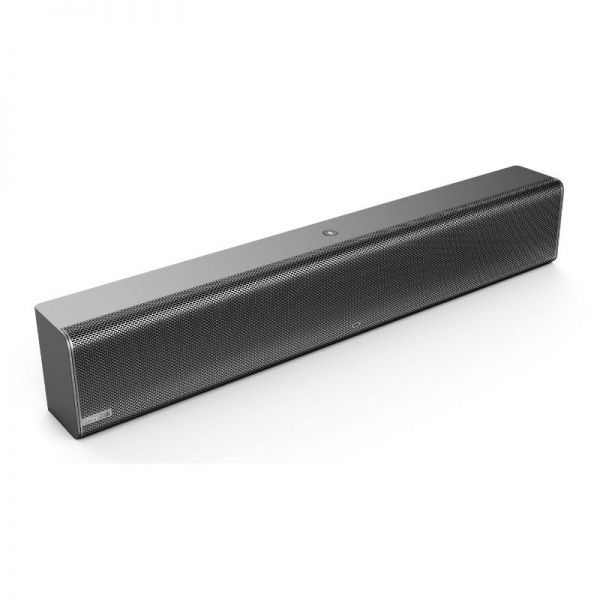

  • MSpeaker II
    • Frequency response: 106Hz-20 KHz
    • Maximum Loud Pressure level: 88±3dB@8W / 1M
    • Sensitivity: 79±3dB@1W/1M
    • S/N: ≥70dB
    • 3.5mm linear input interface

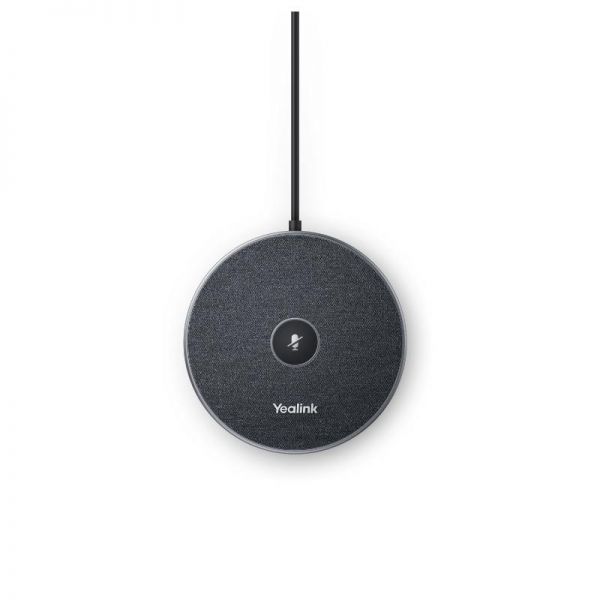

  • VCM35
    • Built-in three-microphone matrix
    • 360° omnidirectional pickup
    • Signal to noise ratio: 60dB SPL@1KHz, A-weighted
    • Loudest Pressure level: 115dB@1KHz, THD<3%
    • Equivalent noise: -105dBFS(A)
    • Dynamic range: 81dBFS
    • Sensitivity: -45dB±2
    • Frequency response: 100Hz-8KHz
    • 2m radius full duplex range
    • 6m pickup radius
    • Support star cascading
    • Two-color LED capacitive touch mute key
  • WPP30 Content Sharing
    • Self-built Wi-Fi Network
    • 4K/30fps Full HD Content Sharing
    • Adaptive Software/Hardware Encoding
    • Dual-band 2.4GHz/5GHz wireless networks
    • Plug and Play
    • Full-featured USB Type-C and USB Type-A Ports
    • AES & WPA Data Encryption
    • Adapt to Computers and Mobile Phones with Different Ports
    • Up to four content streams can be presented simultaneously
    • Supports annotations, whiteboards, and reverse control
    • Support BYOD
  • RCH40
    • Up to 90w PoE Budget
    • 4x 10/100/1000Mbps Port
    • 802.3af/at-compliant
    • PoE Priority Control
