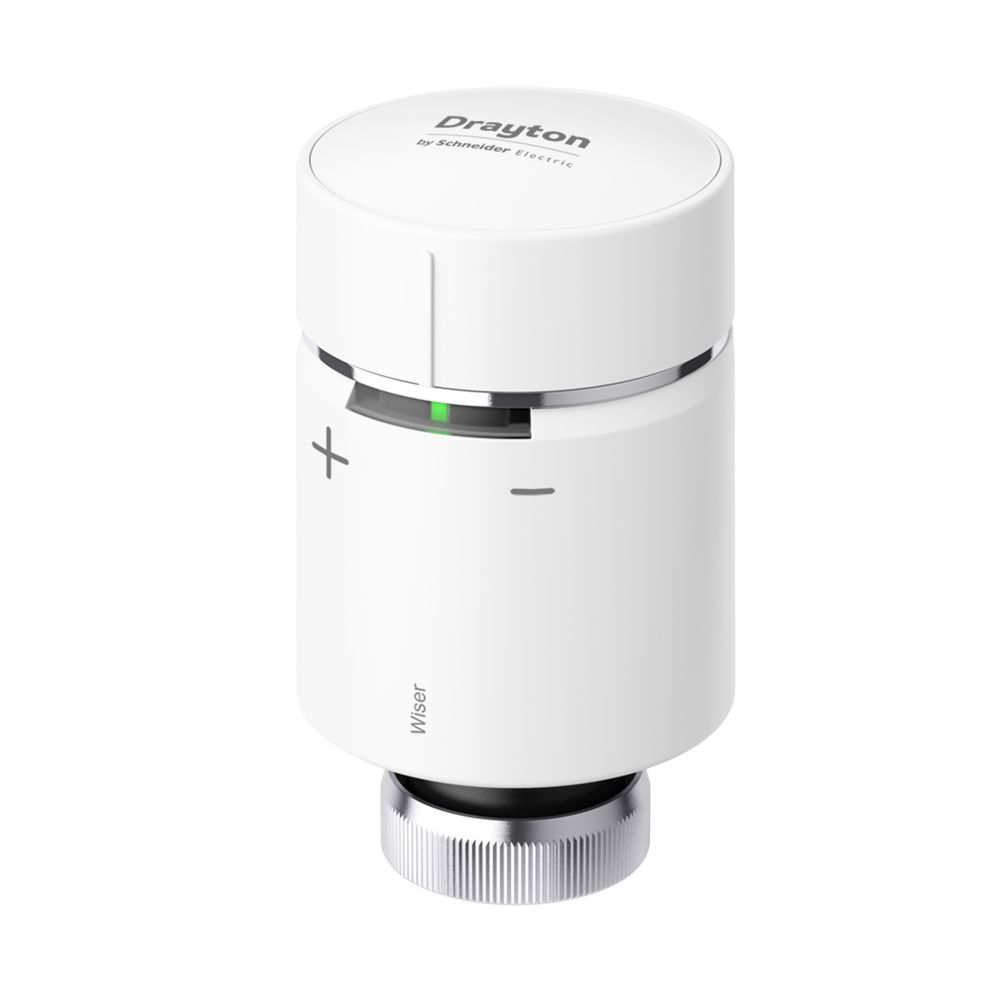

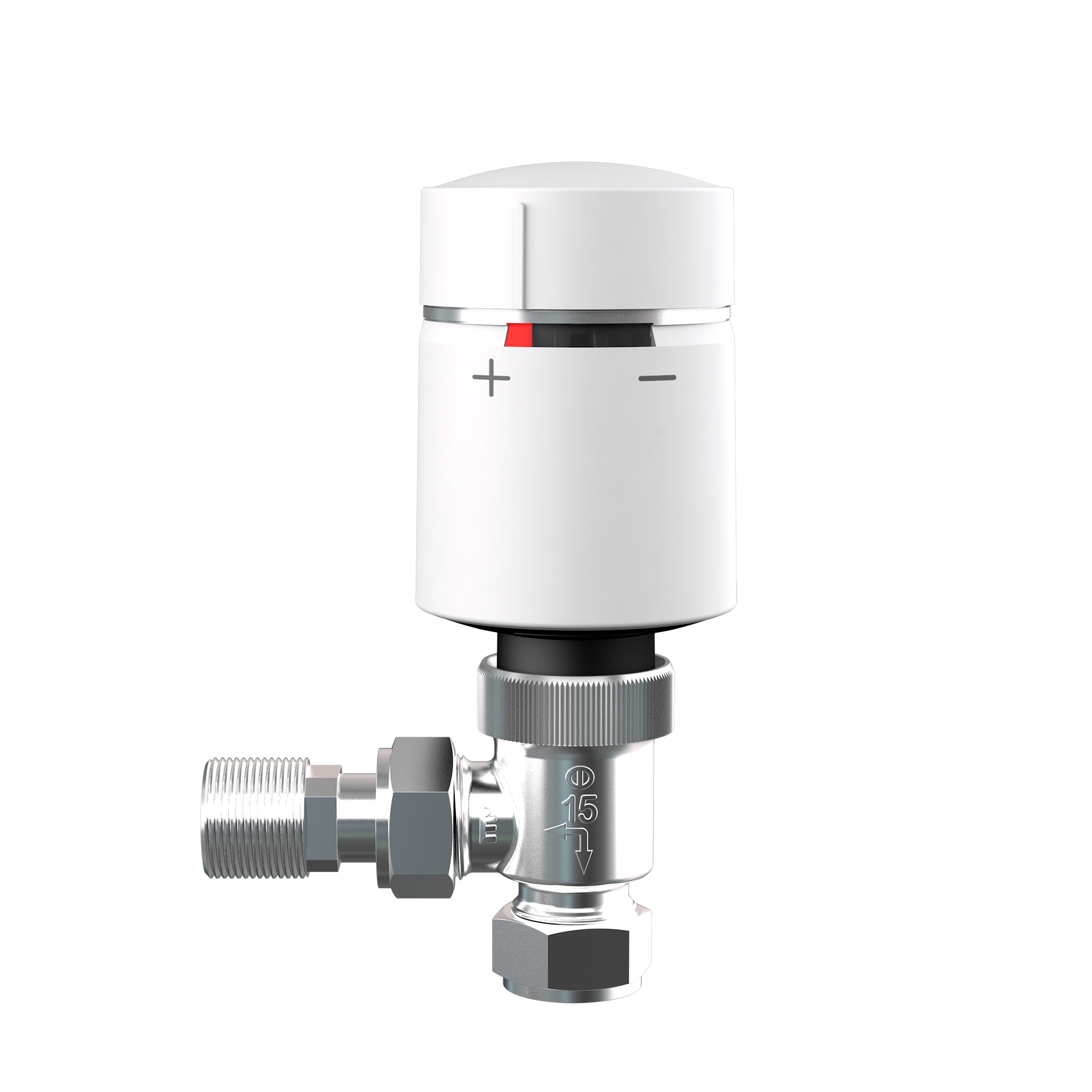

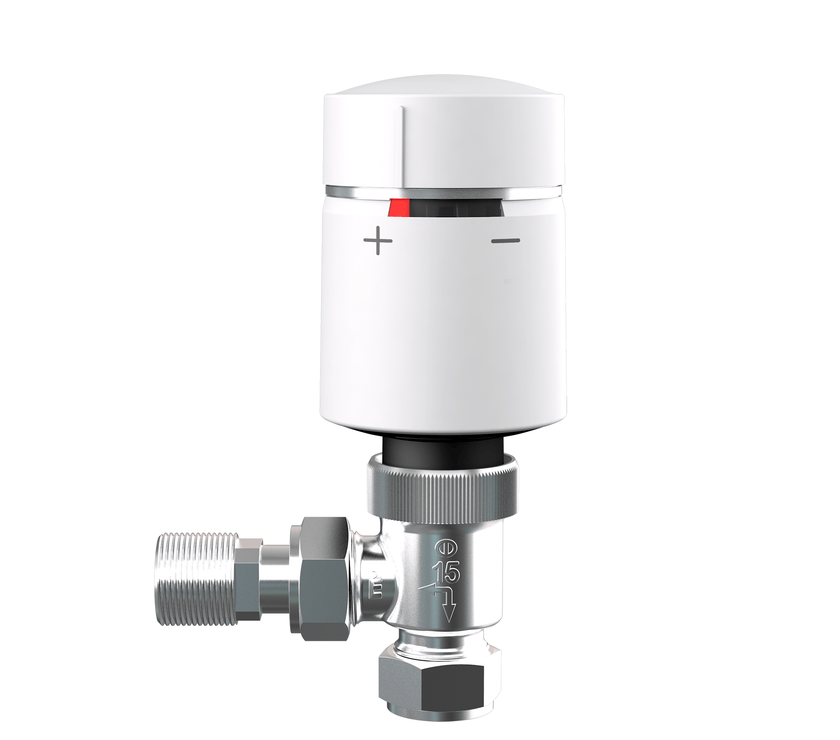

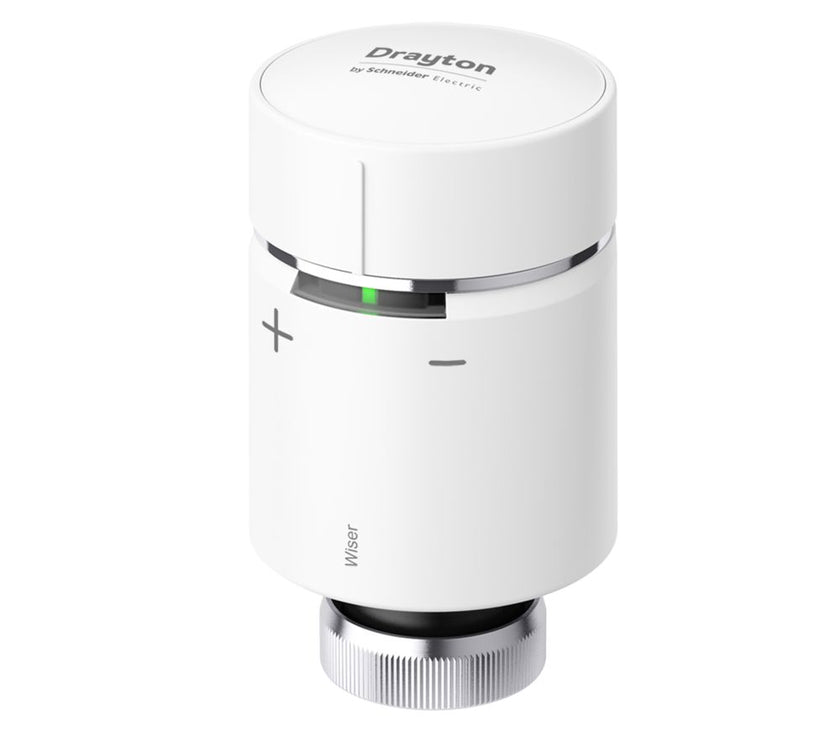

Drayton Wiser#Radiator Thermostat

Drayton Wiser#Radiator Thermostat

£52.45 GBP
Sale price: £52.45 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Product Type (Smart TRV Head)
  • Core Function (Room-by-Room Zoning)
  • Installation (Fits Existing Valves)
In stock, 427 units
EAN: 5016254201723
SKU: 10170531
Vendor: Drayton
Order within xx hours for delivery on
Quantity
  • Manufacturer: Drayton by Schneider Electric
  • Part Number: WV704R0A0902
  • Item Weight: 220 g
  • Product Dimensions: 5.1 x 5.1 x 9.5 cm; 220 g
  • Batteries: 2 AA batteries required (included)
  • Item Model Number: WV704R0A0902
  • Size: Radiator Thermostat
  • Colour: White
  • Style: 1 x Radiator Thermostat
  • Pattern: 1 x Radiator Thermostat
  • Power Source Type: Battery Powered
  • Voltage: 1.5 Volts
  • Item Package Quantity: 1
  • Number of Pieces: 6
  • Head Style: Philips
  • Measurement System: Metric
  • Display Style: LED
  • Plug Profile: Surface Mount
  • Specification Met: Energy
  • Special Features: Window Sensor
  • Specific Uses: Heating
  • Included Components: 1 x Danfoss RA Valve Adapter, 1 x M30x1.5mm Ring Nut, 1 x Radiator Thermostat, 2 x AA Batteries
  • Batteries Included? Yes
  • Batteries Required? Yes
  • Battery Cell Type: Alkaline
  • 1 x Radiator Thermostat
  • 2 x AA Batteries
  • 1 x Danfoss RA Valve Adapter
  • 1 x M30x1.5mm ring nut

Datasheet

Overview

Add additional radiator thermostats to any Wiser thermostat or multi-zone kits to create more zones - for maximum comfort, convenience and energy savings. Winning a 2018 Red Dot Award Design award, the smart radiator thermostats provide accurate multi-zone heating control.

Technical Features
  • System Compatibility: This radiator thermostat is only designed to work alongside an existing Wiser Smart Heating System with a Wiser Heat Hub. Replace your existing radiator TRV valves to give room-by-room heating control.
  • Easy Installation: Simply screw off/on existing TRV radiator valves and replace with Wiser smart thermostats to expand your current system. Works with 90% of existing valves. An adaptor to fit the Danfoss RA valve is included in every box.
  • Expandable System: Add up to 32 smart radiator thermostats in up to 16 different rooms/zones. Begin with 1 radiator thermostat and add more over time. 1 Thermostat required per radiator for maximum comfort and energy saving.
  • App Control: Full heating control can be monitored and schedules updated via the Wiser App (iOS and Android).
  • Voice Assistant Integration: Use voice commands to check the status and make changes to individual rooms or groups of rooms. Fully compatible with Alexa, Google Assistant, and IFTTT.
  • Smart Energy Saving: Open window detection turns off heating if a window is open. Twist top allows manual override of the schedule via the radiator thermostat.
  • Connectivity Range: Average connectivity range is 25-40 feet but will depend on the location of the Heat Hub and wall thickness. For larger houses or those with thick walls, we recommend the Wiser Smart Plug to help extend the range. Wiser is not suitable for gravity-fed systems.
  • Power Source: Smart radiator thermostat is powered by 2 x AA batteries (included). Expected battery life is around 12 months, depending on battery type and usage.
  • Regulatory Compliance: Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/EU.
