Startech USB Extender Hub

Startech USB Extender Hub

£128.58 GBP
Sale price: £128.58 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Flexible Installation
  • Level 2 ESD Protection
In stock, 8 units
EAN: 65030897365
SKU: 10400006
Vendor: Startech
Order within xx hours for delivery on
Quantity
  • Connector A: 1 x USB 3.2 Type-A (9-pin, Gen 1, 5Gbps)
  • Connector B: 4 x USB 3.2 Type-A (9-pin, Gen 1, 5Gbps), 1 x Barrel Power Connector (Size H, OD: 3.40, ID: 1.30)
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -40°C to 55°C (-40°F to 131°F)
  • Humidity: 30% - 70%
  • Ports: 4
  • Connector Plating: Nickel
  • 1 - USB Active Cable with USB Hub
  • 1 - Power Adapter
  • 1 - Quick-Start Guide

Datasheet

Overview

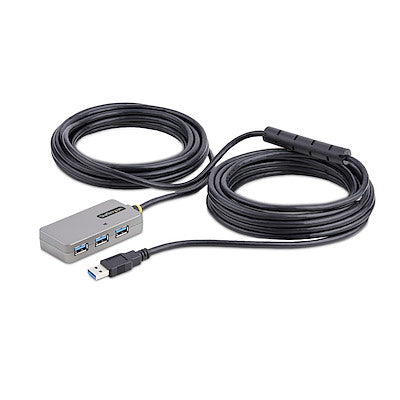

The 32.8ft USB 3.0 Extension Cable with 4-Port USB Hub and 5Gbps transfer rates enables multiport connectivity at distances that exceed standard USB 3.0 distance and power source limitations. Daisy chain up to two USB active extension cables for a maximum range of 65.6ft (20m). Active electronics allow the USB-A Hub to function without requiring external power, multiplying the installation possibilities and accelerating any deployment. In addition, the 5V4A DC power adapter supports USB peripherals that require additional power.

Technical Features
  • Long-Range Active USB Extender: 4x USB 3.0/3.2 Gen 1 (5 Gbps) hub with 32.8ft (10m) active extension cable; powered via bus or included adapter
  • Stable Signal: Active repeater chip maintains signal integrity; adapter not required in most cases; provides up to 1A per port with adapter
  • Flexible Installation: Bus-powered operation; daisy-chain two units for max range 65.6ft (20m)
  • Compatibility: Wake-on-USB support; backward compatible with USB 2.0/1.1; driverless, OS-independent; Level 2 ESD protection
