Ubiquiti UniFi Pro Max 48 PoE - Switch - L3 - Managed - 16 x 1 2.5G (8 PoE 8 PoE ) 32 x 10 100 1000 (24 PoE 8 PoE ) 4 x 10 Gigabit SFP - rack-mountable - PoE (720 W)

Ubiquiti UniFi Pro Max 48 PoE - Switch - L3 - Managed - 16 x 1 2.5G (8 PoE 8 PoE ) 32 x 10 100 1000 (24 PoE 8 PoE ) 4 x 10 Gigabit SFP - rack-mountable - PoE (720 W)

£1,140.30 GBP
Sale price: £1,140.30 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 24 port switch
  • Enterprise system
    • In stock, 100 units
    EAN: 810084692721
    SKU: USW-PRO-MAX-48-POE
    Vendor: Ubiquiti
    Order within xx hours for delivery on
    Quantity
    • Product Type: Layer 3 PoE Switch
    • Models: USW-Pro-24-PoE (24 RJ45 ports + 2 SFP+ ports), USW-Pro-48-PoE (48 RJ45 ports + 4 SFP+ ports)
    • Layer 3 Features: Inter-VLAN routing, static routing, and DHCP server functionality

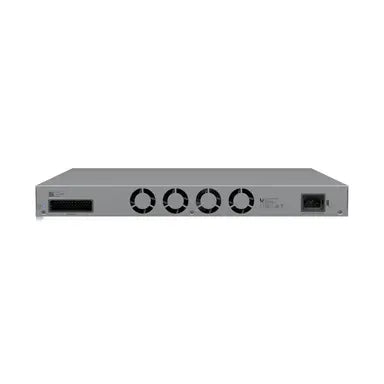

    • Cooling: Near-silent cooling with PWM-controlled fans, air ducts, and temperature sensors
    • Fiber Connectivity: SFP+ ports support uplinks up to 10 Gbps
    • PoE Support: 8 ports with 802.3bt PoE++ (up to 64W each), remaining ports with 802.3af/at PoE
    • Redundant Power: Supports external DC input via USP RPS interface for backup power
    • Manufacturer: Ubiquiti Networks
    • Model Number: USW-Pro-24-POE
    • Total Network Ports: 24
    • Uplink Ports: 2 x 10 Gigabit Ethernet (SFP+)
    • Port Details: 16 x Gigabit Ethernet PoE+, 8 x Gigabit Ethernet PoE++
    • Media Supported: Optical Fiber, Twisted Pair
    • Network Technology: 10/100/1000Base-T, 10GBase-X

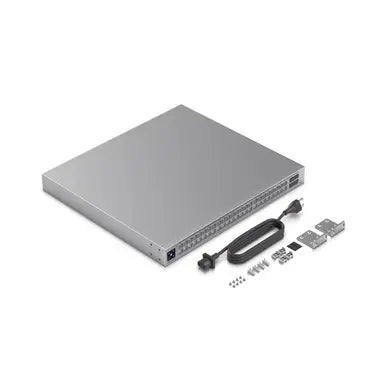

    • 1 x USW-PRO-MAX-48-POE
    • 2 x Rackmount Ears
    • 4 x Rubber Feet
    • 1 x 100-240V UK Power Supply
    • 1 x Quick Start Guide

    datasheet

    Overview

    The USW-Pro-Max-48-PoE is an enterprise level Layer 3 Etherlighting switch, designed for high-power PoE++ output. With illuminating Etherlighting ports to indicate port speed/link, location, and native VLAN/network, connected devices can be monitored at a glance, and the USW Pro Max is also equipped with a 1.3 inch touchscreen display for painless troubleshooting. The Ubiquiti USW-PRO-MAX-48-POE offers a total non-blocking throughput of 112 Gbps and a switching capacity of 224 Gbps, designed for demanding network environments, as well as four 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. The USW Pro Max is also near silent, with sophisticated cooling infrastructure in a brand-new airflow design reducing the need for noisy fans, and the 1.3 inch touchscreen display means that troubleshooting and monitoring is effortless and intuitive. The USW Pro Max is an excellent addition to busy spaces with high traffic demand such as larger offices, schools, or hotels.

    Technical Features
    • Layer 3 managed switch
    • 48 RJ45 ports
    • 32 x PoE+ ports
    • 16 x PoE++ ports
    • 16 x 2.5 GbE ports
    • 32 x GbE ports
    • 4 x SFP+ ports
    • Total available PoE: 720W
    • Switching capacity: 224 Gbps
    • 1.3" touchscreen display
    • Etherlighting ports
    • LED status indicators
    • Rack mounted
    • DC power backup ready
