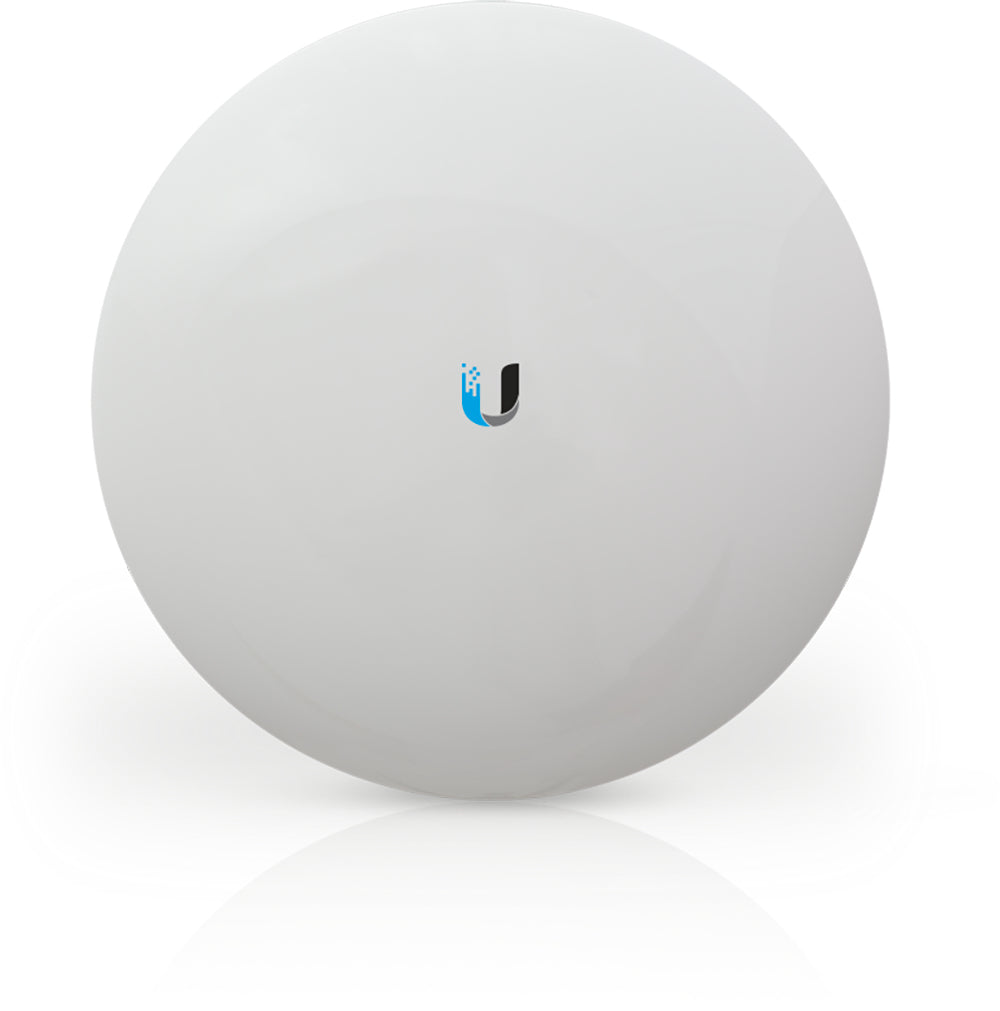

Ubiquiti airMAX 5 GHz NanoBeam ac Gen2

Ubiquiti airMAX 5 GHz NanoBeam ac Gen2

£87.26 GBP
Sale price: £87.26 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Highly durable product
  • Easy to install
  • Manufactured in China
    • In stock, 300 units
    EAN: 810354026348
    SKU: NBE-5AC-GEN2
    Vendor: Ubiquiti
    Order within xx hours for delivery on
    Quantity
    • Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
    • Weight: 530 g (1.17 lb)
    • Enclosure Material: UV-stabilized plastic
    • Mounting (Included): Pole mount kit
    • Mounting (Not Included): Wall mount
    • Wind Loading: 45.4 N at 200 km/h (10.2 lbf at 125 mph)
    • Wind Survivability: 200 km/h (125 mph)
    • Networking Interface: (2) GbE RJ45 ports
    • Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
    • Power Supply: 24V, 0.5A gigabit PoE adapter (Included)
    • Supported Voltage Range: 20–27V DC
    • Max. Power Consumption: 8.5W
    • ESD/EMP Protection: Air/contact: ± 24kV
    • LEDs: Power, Ethernet, (4) Signal strength
    • Salt Fog Test: IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5
    • Vibration Test: IEC 68-2-6
    • New antenna
    • Improved radio design
    • Improved surge protection
    • Management WiFi Radio/UNMS mobile app
    • AirOS 8

    Datasheet

    Overview

    The Ubiquiti NanoBeam 5AC Gen 2 directs RF energy in a tighter beam width up to a distance of 15+ Km in perfect conditions. With the focus in one direction, the NanoBeam 5AC Gen 2 blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. We tend to recommend this product for distances of 100 to 2000 metres. The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam ac gets maximum gain out of the smallest footprint. Providing high performance and an innovative form factor, the NanoBeam AC is versatile and cost-effective to deploy. The NanoBeam 5AC Gen 2 integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. The UMobile App provides instant accessibility to the airOS configuration interface and can be downloaded from the App Store (iOS) or Google Play (Android).

    Technical Features
    • Feature: Dedicated Wi-Fi Radio for Management
    • Throughput: 450+ Mb/s
    • Processor: Atheros MIPS 74Kc, 720 MHz
    • Memory: 128MB DDR2, 8MB Flash
    • Ports: 2 x 10/100/1000 Ethernet Ports
    • Software: airOS Software
    • Indicators: Power/LAN/WLAN LED Indicators
    • Mounting: Versatile Mounting
    • Approvals: FCC, IC, CE Approved
    • Compliance: RoHS Compliant
