16 Channel Network Video Recorder Spec:4K HDMI Video Output & 16MP Decoding Capacity; 24/7 Continuous Recording; 16-Channel Real-Tim

16 Channel Network Video Recorder Spec:4K HDMI Video Output & 16MP Decoding Capacity; 24/7 Continuous Recording; 16-Channel Real-Tim

£269.47 GBP
Sale price: £269.47 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 4K HDMI Video Output
  • H.265+ Compression Technology
    • Out of stock
    EAN: 1210002606424
    SKU: 10453792
    Vendor: TP-Link
    Order within xx hours for delivery on
    Quantity
    • IP Video Input:16-Channel
    • Incoming Bandwidth:320 Mbps
    • Outgoing Bandwidth:320 Mbps
    • Multi-View Display:1/4/6/8/9/16
    • Working Temperature:NVR: -10–55 °C; Power Adapter: 0–40 °C
    • Working Humidity:10%~90% RH Non-Condensing
    • Dimensions (W × D × H):13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm)
    • Net Weight:2.2 Kg#
    • Gross Weight:4.2 Kg#
    • Power Supply:53.5V DC/3.37A
    • Max. Power Consumption:6.2 W (Without Disk), 40 W (With Disk)

    • VIGI Network Video Recorder
    • Power Adapter
    • Power Cable
    • HDD Power Cables
    • HDD Data Cables
    • Mounting Accessories
    • Mouse
    • Quick Installation Guide

    Datasheet

    Overview

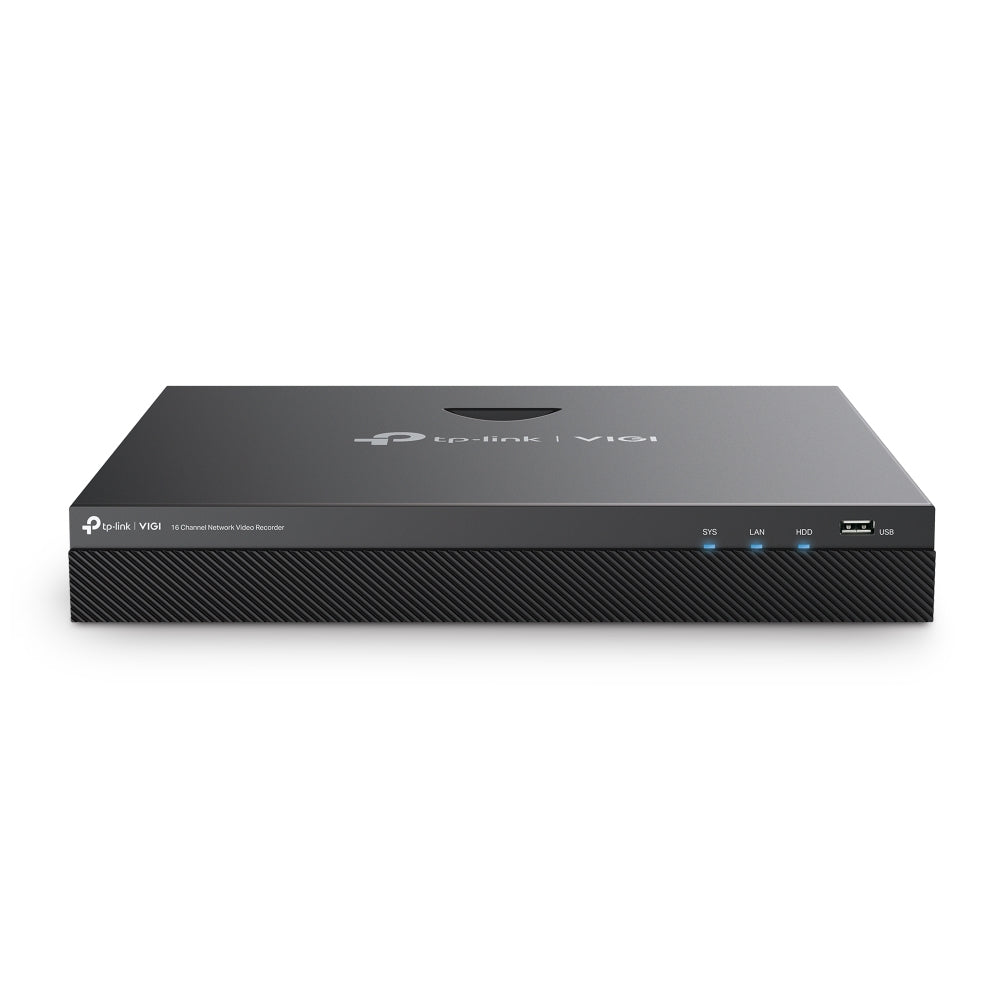

    The TP-Link VIGI NVR2016H V1.2 is a 16-channel network video recorder (NVR) for networked security cameras. It supports up to 16 cameras, features a 4K HDMI output for high-resolution viewing, and uses H.265+ compression to save storage space. The device is plug-and-play with VIGI cameras, allows for simultaneous 16-channel playback, and supports up to 20 TB of storage with two SATA hard drives (sold separately).

    Technical Features
    • 16-Channel Live View and 4K HDMI Video Output
    • 16× 10/100 Mbps PoE+ Ports with 140 W PoE Budget△
    • Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
    • 16-Channel Synchronous Playback†
    • 320 Mbps Incoming and Outgoing Bandwidth
    • 2× SATA Interfaces and 1 Up to 16 TB*
    • H.265+ Compression Technology
    • Alarm In/Out: 6/4
    • HDMI and VGA Independent Output
