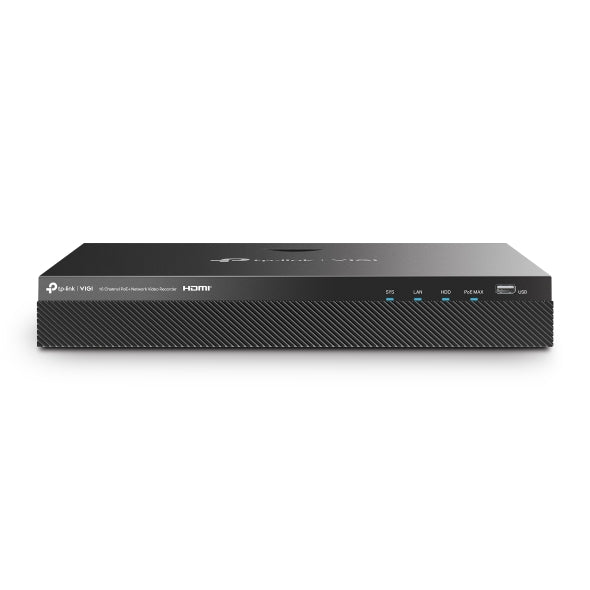

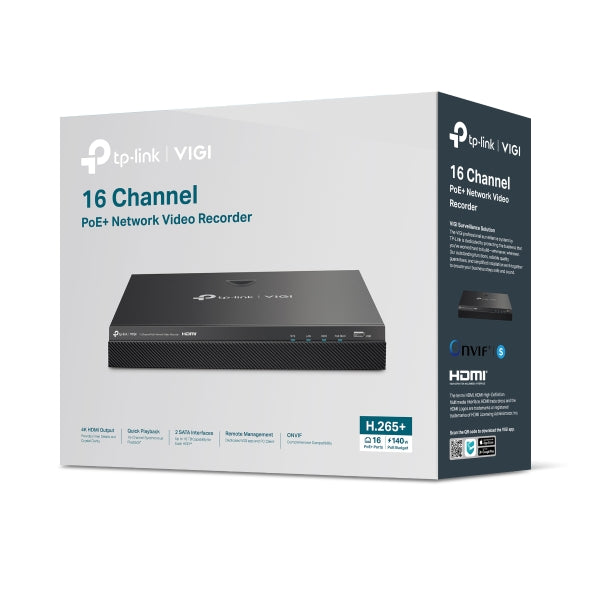

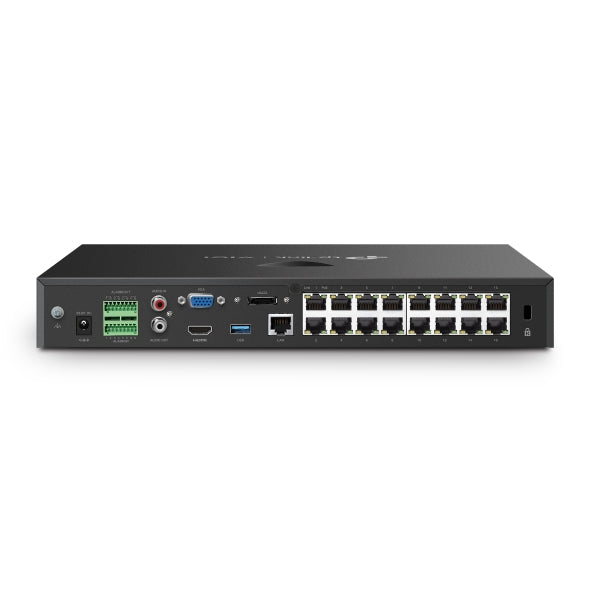

TP-Link VIGI NVR2016H-16MP V1 16 channels - networked

TP-Link VIGI NVR2016H-16MP V1 16 channels - networked

£580.64 GBP
Sale price: £580.64 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 4K HDMI Video Output
  • H.265+ Compression Technology
    • In stock, 1 unit
    EAN: 1210002606417
    SKU: VIGI NVR2016H-16MP V1
    Vendor: TP-Link
    Order within xx hours for delivery on
    Quantity
    • IP Video Input:16-Channel
    • Incoming Bandwidth:80 Mbps
    • Outgoing Bandwidth:60 Mbps
    • Multi-View Display:1/4/6/8/9/16
    • Audio Compression:G.711A/G.711U/G.726
    • Video Compression:H.265+/H.265/H.264+/H.264
    • Resolution:8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF
    • Synchronous Playback:16-Channel†
    • Capability:25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
    • SATA:2 SATA Interfaces
    • Capacity:Up to 16 TB Capacity for Each HDD, 1 × 4TB HDD Preinstalled

    • VIGI Network Video Recorder
    • Power Adapter
    • Power Cables
    • HDD Power Cables
    • HDD Data Cables
    • Mounting Accessories
    • Mouse
    • Quick Installation Guide

    Datasheet

    Overview

    The TP-Link VIGI NVR2016H-16MP V1 is a standalone network video recorder designed to meet the demands of time lapse VCRs and DVRs for both commercial and personal security systems. With support for up to 20 TB of storage across two HDDs, this device ensures that your surveillance system has the capacity to store extensive video footage in high resolution. It supports a wide range of video compression formats, including H.265+, to maximize storage efficiency and facilitate smooth video playback.

    Technical Features
    • 16-Channel Live View and 4K HDMI Video Output
    • 16× 10/100 Mbps PoE+ Ports with 140 W PoE Budget△
    • Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
    • 16-Channel Synchronous Playback†
    • 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
    • 2× SATA Interfaces and 1 Up to 16 TB (1× 4TB HDD Preinstalled)
    • H.265+ Compression Technology
    • HDMI and VGA Simultaneous Output
    • Remote Monitoring
