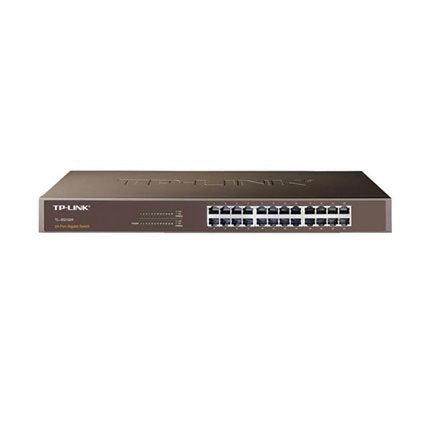

TP-Link TL-SG1024 24 Port Gigabit 1U Rm

TP-Link TL-SG1024 24 Port Gigabit 1U Rm

£94.70 GBP
Sale price: £94.70 GBP Regular price: £0.00 GBP
(VAT Incl.)
In stock, 30 units
EAN: 6935364020019
SKU: TL-SG1024
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • HARDWARE FEATURES
  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
  • Interface: 24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
  • Network Media:




  • Fan Quantity: Fanless
  • Physical Security Lock: No
  • Power Supply: 100-240VAC, 50/60Hz
  • Dimensions (W x D x H): 17.3 x 7.1 x 1.7 in. (440 x 180 x 44 mm)
  • Mounting: 19" Rack Mountable
  • Max. Power Consumption: 13.6W
  • Max. Heat Dissipation: 46.4BTU/h
  • PERFORMANCE
  • Switching Capacity: 48Gbps
  • Packet Forwarding Rate: 35.7Mpps
  • MAC Address Table: 8K
  • Jumbo Frame: 10KB
  • QoS: 802.1p/DSCP QoS *Only for V11 and later version
  • Green Technology: Yes
  • Transmission Method: Store-and-Forward
  • 24-Port Gigabit Rackmount Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kits
  • Rubber Feet

Datasheet




Overview

The TL-SG1024 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of offices and workgroup networks.24 10/100/1000Mbps auto-negotiation Ethernet ports All ports support full/half duplex transfer mode for 10Mbps/100Mbps and full duplex transfer mode for 1000MbpsSupports Auto-MDI/MDIX function Supports IEEE 802.3X flow control for full-duplex mode and back pressure flow control for half-duplex mode Store and forward switching scheme

Technical Features
  • 24 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case
