TP-Link Gigabit Multi-Mode Media Converter

TP-Link Gigabit Multi-Mode Media Converter

£30.61 GBP
Sale price: £30.61 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Up to 550 m
  • Chassis MC1400 Rack-mountable
In stock, 1 unit
EAN: 6935364081331
SKU: 203579
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • Dimensions (W × D × H): 3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm)

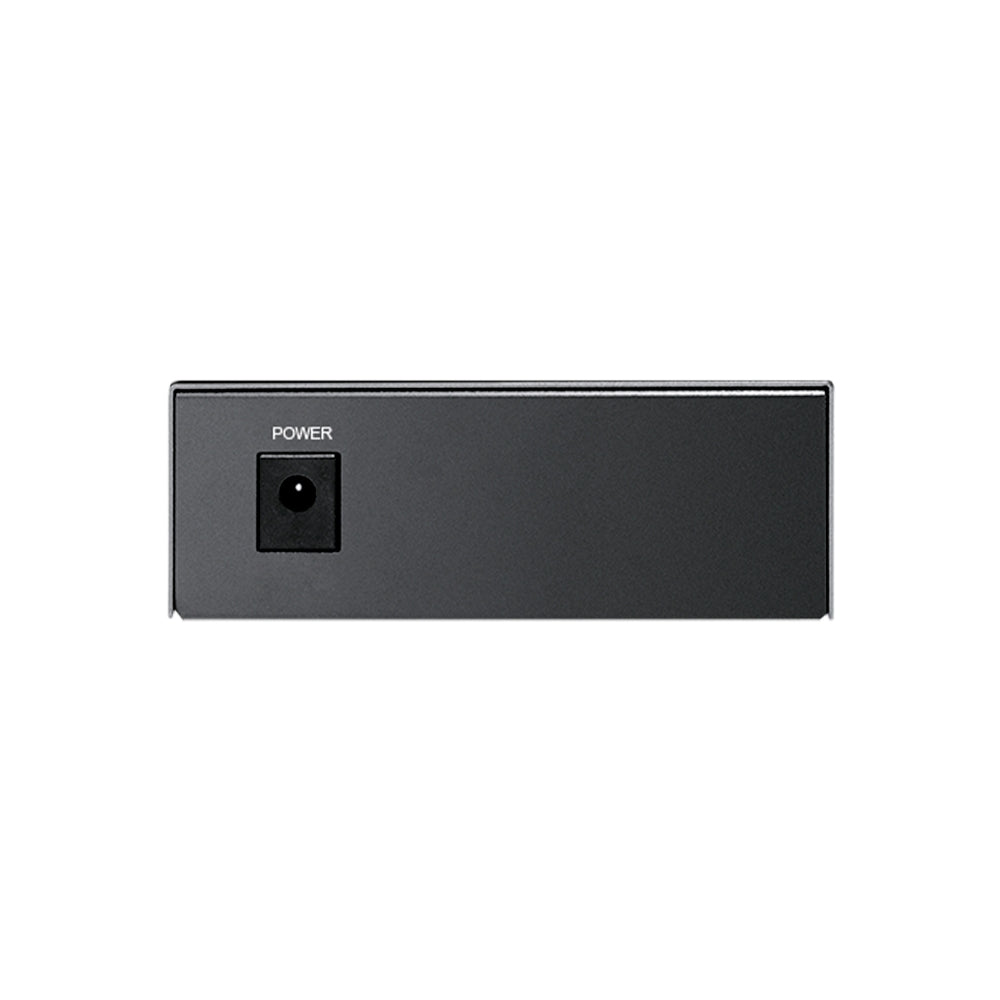

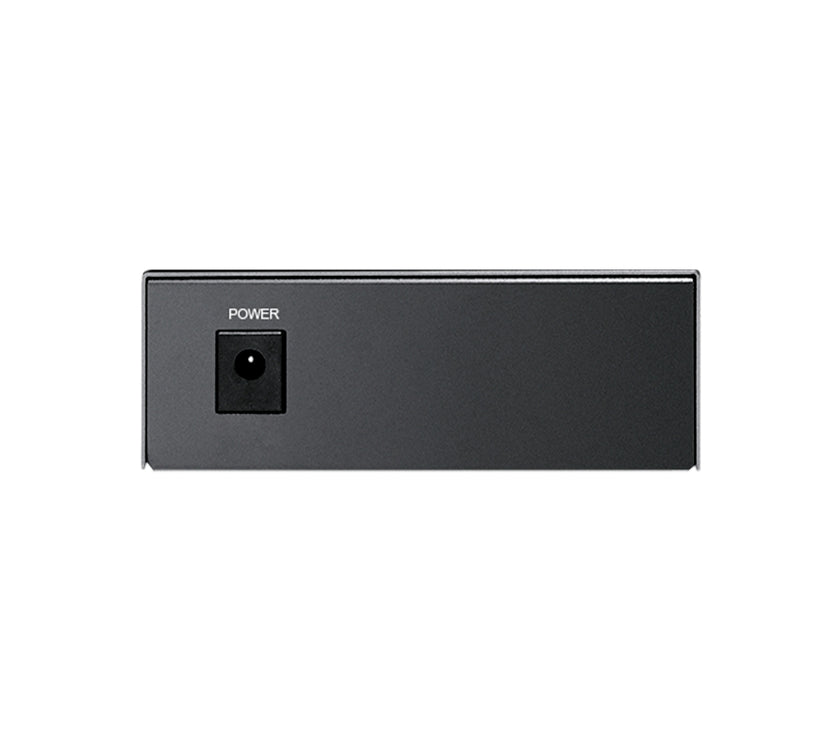

  • Power Supply: External Power Adapter
  • Max Power Consumption: 1.66 W

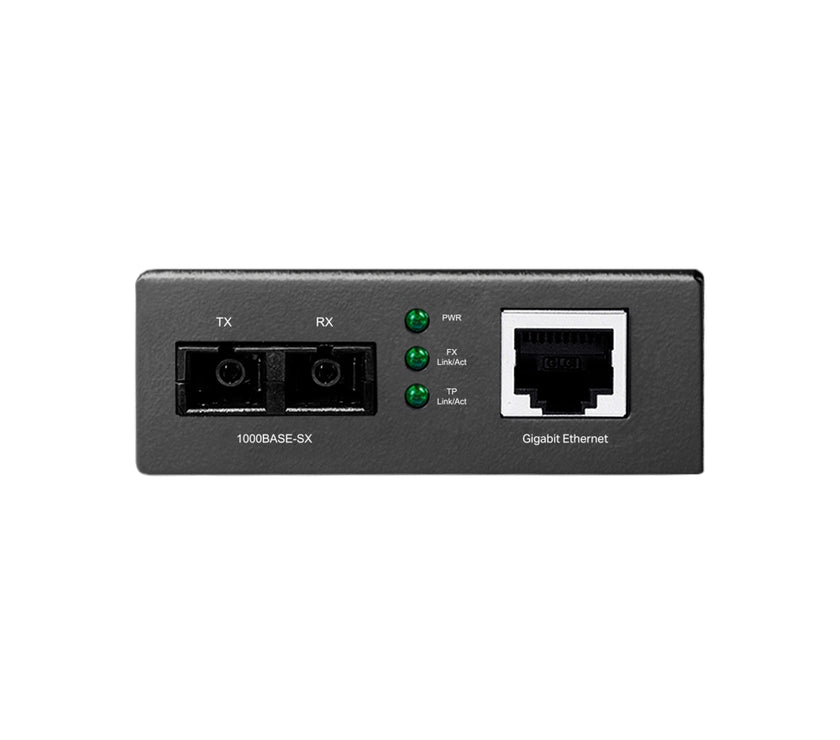

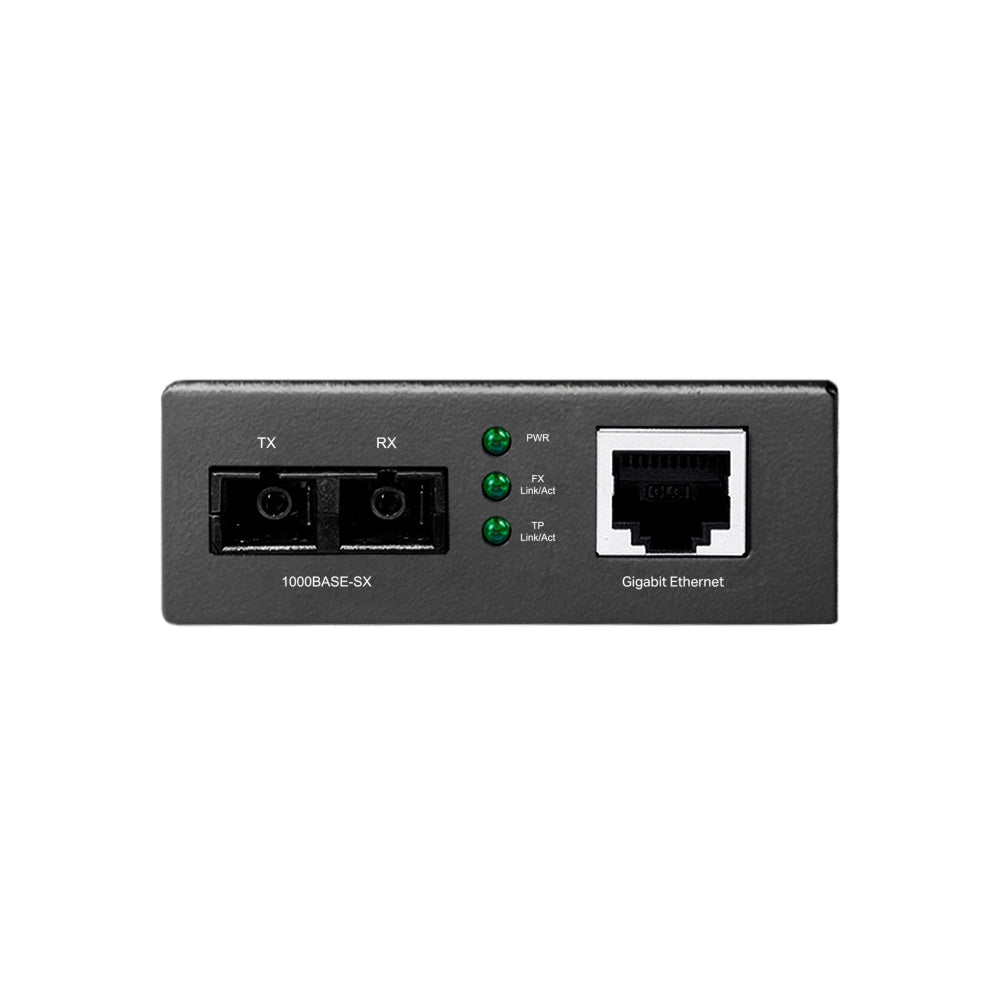

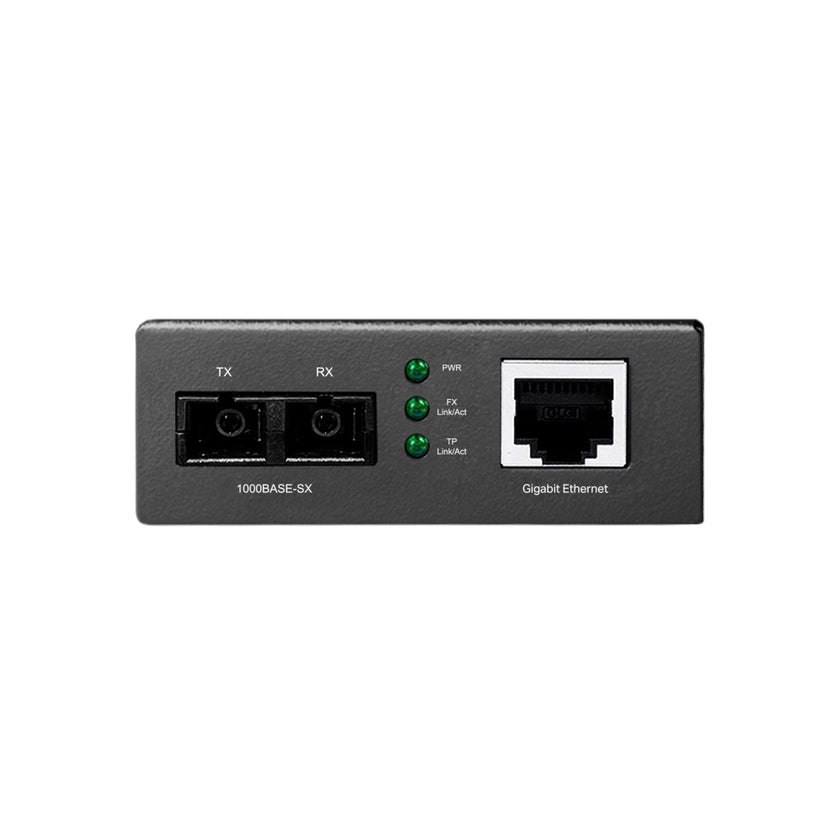

  • LED Indicators: PWR, Link/Act
  • Safety & Emission: FCC, CE, RoHS
  • Operating Temperature: 0℃ ~ 50℃ (32℉ ~ 122℉)
  • Storage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
  • Operating Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 90% non-condensing

• MC200CM
• Power Adapter
• Installation Guide

Datasheet

Overview

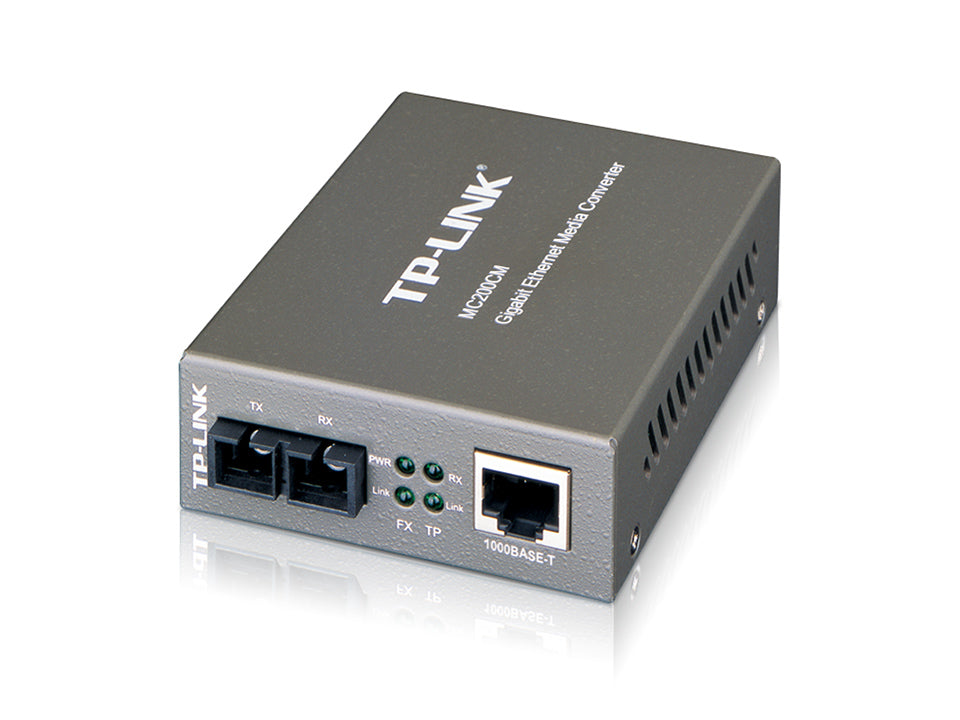

The TP-Link MC200CM is a Gigabit media converter that translates between 1000Base-T Ethernet (RJ45 copper) and 1000Base-SX fiber optic signals, using an SC connector for multi-mode fiber. It is designed to extend network reach up to 550 meters over multi-mode fiber, operates at 850nm, and supports full-duplex at Gigabit speeds. Key features include Auto MDI/MDI-X on the RJ45 port, front-panel status LEDs, and compatibility with various networking standards.

Technical Features
  • RJ45 Port: 1× 10/100/1000 Mbps with Auto-Negotiation and Auto-MDI/MDIX
  • Duplex Mode: Auto-negotiation for Half-Duplex / Full-Duplex
  • Standards Compliance: IEEE 802.3ab and IEEE 802.3z
  • Fiber Extension: Supports fiber distance up to 0.55 km
