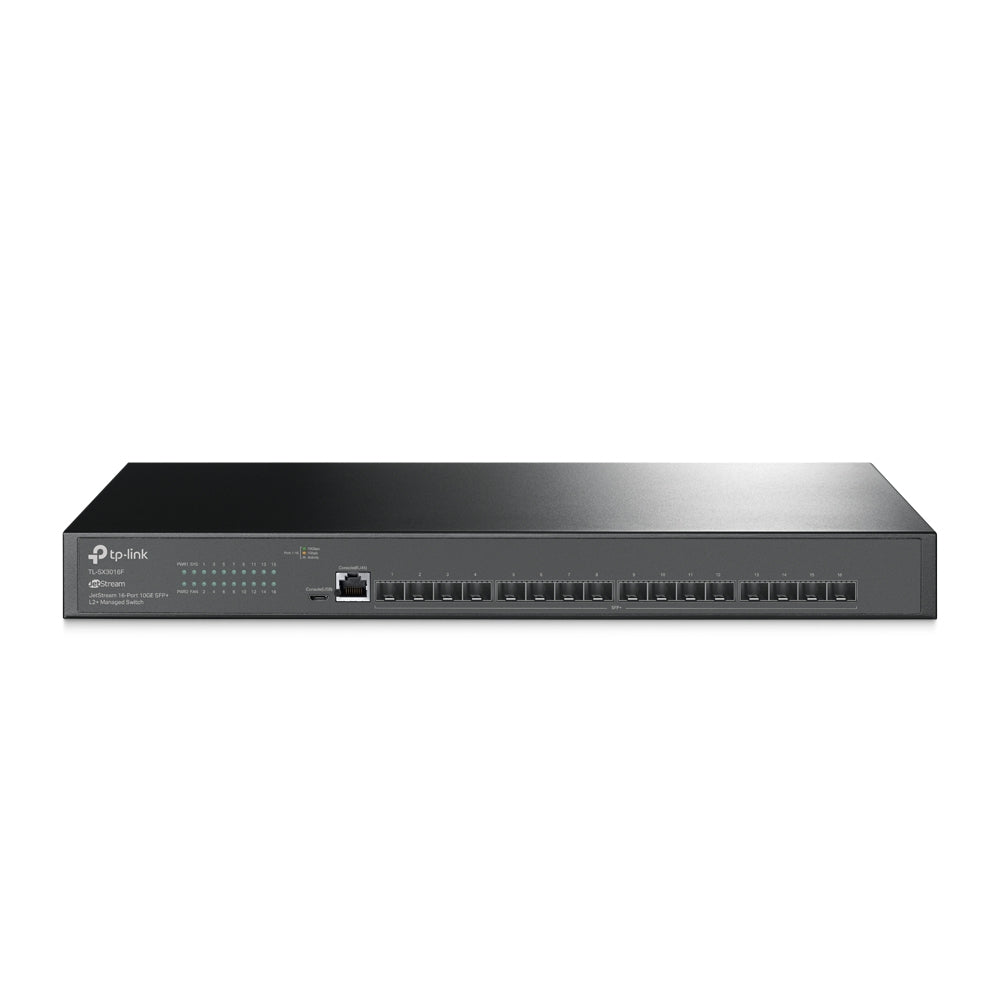

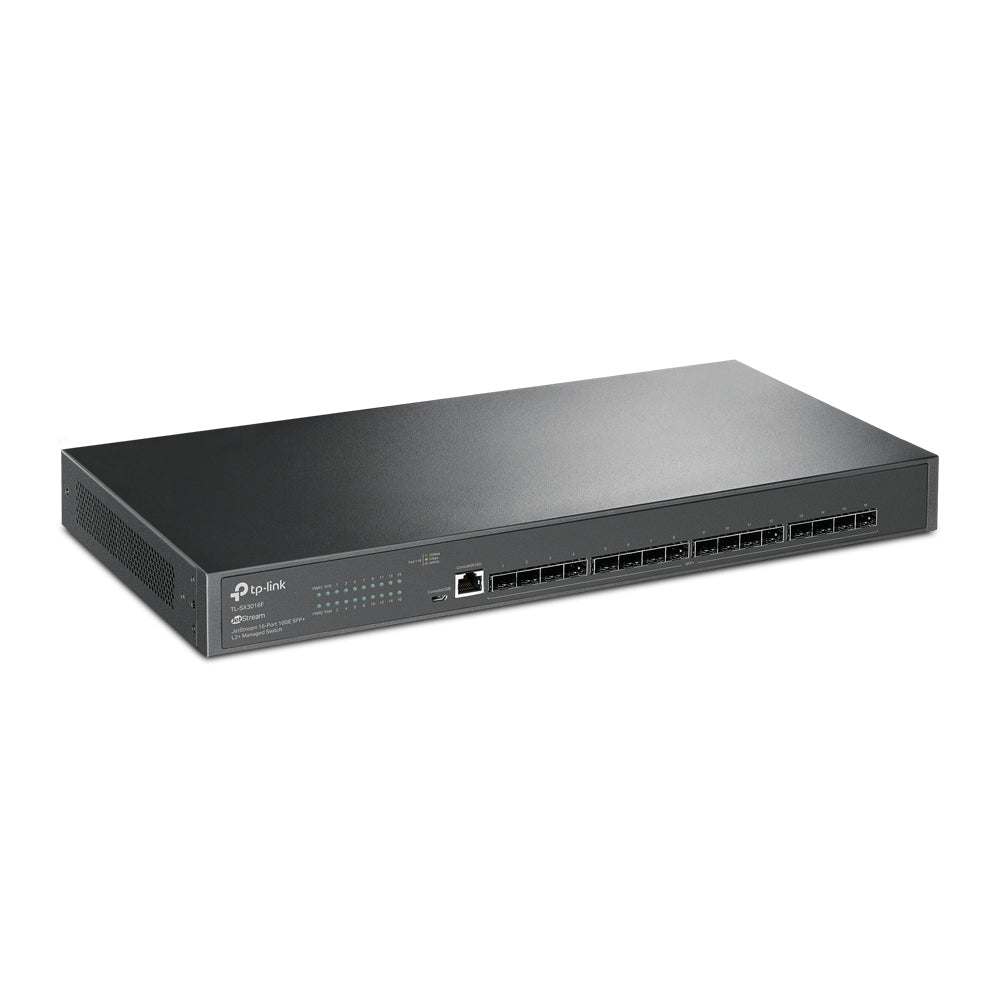

TP-Link Omada SX3016F Aggregation L2+ Non PoE Switch

TP-Link Omada SX3016F Aggregation L2+ Non PoE Switch

£592.93 GBP
Sale price: £592.93 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 16× Full 10GE SFP+ Slots
  • Two power supplies
Out of stock
EAN: 6935364006433
SKU: SX3016F
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • Switching Capacity: 320 Gbps
  • Packet Forwarding Rate: 238.08 Mpps
  • MAC Address Table: 32 K
  • Packet Buffer Memory: 24 Mbit
  • Jumbo Frame: 9 KB
  • Power Supply: 100-240 V AC~50/60 Hz
  • Dimensions (W x D x H): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
  • Mounting: Rack Mountable
  • Max Power Consumption: 32.74 W (220 V / 50 Hz)
  • Max Heat Dissipation: 111.71 BTU/hr (220 V / 50 Hz)

• TL-SX3016F Switch
• 2× Power Cords
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Datasheet

Overview
16× 10 Gbps SFP+ slots 320 Gbps switching capacity Two power supply modules back each other up Centralized cloud management via the web or the Omada app† Standalone management via web, CLI, SNMP, and RMON Static Routing helps route internal traffic for higher efficiency VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM ERPS supports rapid protection and recovery in a ring topology Durable metal casing and rack-mountable design

Technical Features
  • 16× Full 10GE SFP+ Slots: Lightning-fast full 10 Gbps SFP+ slots provide high-bandwidth aggregation connectivity and non-blocking 320 Gbps switching capacity
  • Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features including Static Routing, enterprise-level QoS, IGMP Snooping, and more
  • Robust Security Strategies: Integrated IP-MAC-Port Binding, ACL, Port Security, 802.1X Authentication, and more to protect LAN investments
  • Dual Redundant Power Supplies: Two power supplies backing each other up for reliable networking architecture
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image for powerful management capabilities
