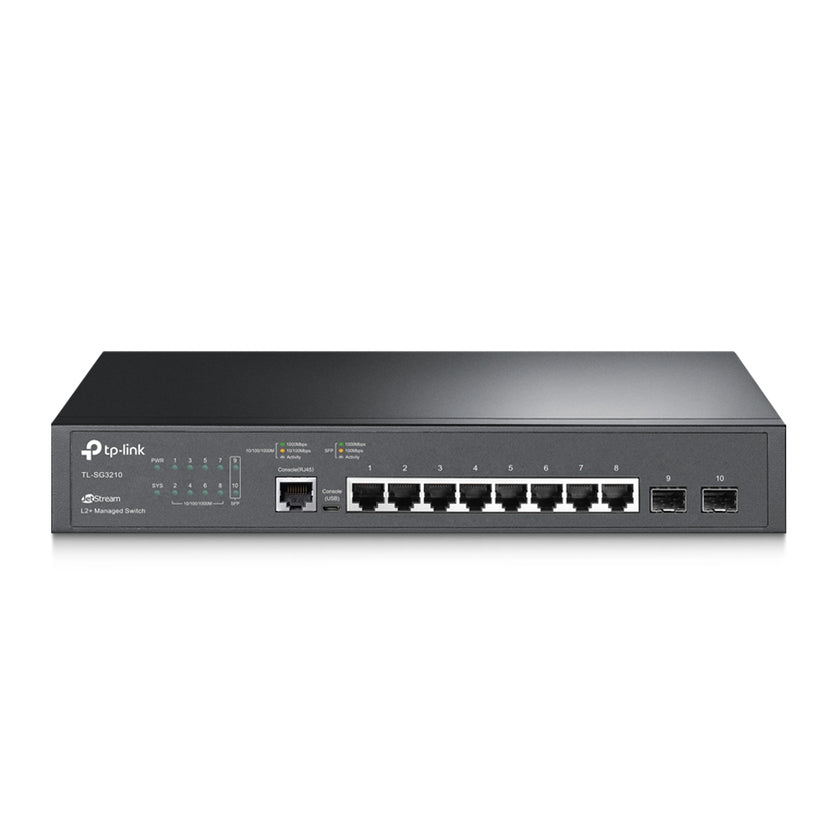

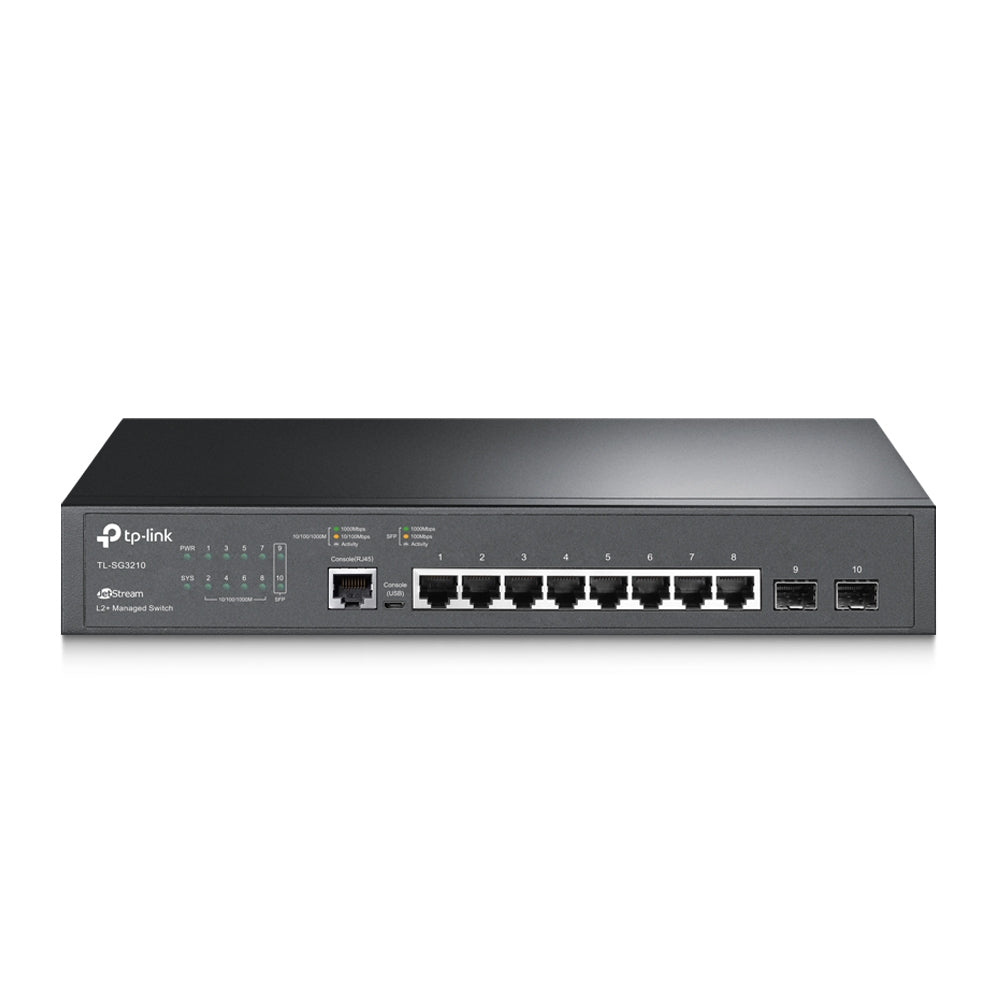

TP-Link JetStream 8-Port Gigabit L2+

TP-Link JetStream 8-Port Gigabit L2+

£98.08 GBP
Sale price: £98.08 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Operating Temperature )
  • Storage Temperature
In stock, 2 units
EAN: 6935364006402
SKU: 263164
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
  • Interface:

    8 10/100/1000Mbps RJ45 ports (Auto Negotiation/Auto MDI/MDIX)
    2 Gigabit SFP Slots
    1 RJ45 Console Port
    1 Micro-USB Console Port

  • Network Media:

    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    100BASE-TX/1000Base-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
    1000BASE-X: MMF, SMF

  • Fan Quantity: Fanless
  • Physical Security Lock: Yes
  • Power Supply: 100～240VAC, 50/60Hz
  • Dimensions ( W x D x H ): 11.6 × 7.1 × 1.7 in. (294 × 180 × 44 mm)
  • Mounting: Rack Mountable
  • Max Power Consumption: 6.836 W (220 V/50 Hz)
  • Max Heat Dissipation: 23.32 BTU/h
  • TP-Link JetStream 8-Port Gigabit L2 Managed Network Switch with 2 SFP Slots
  • Power Cord
  • Rackmount Kit
  • Rubber Feet
  • Resource CD
  • Installation Guide

Datsheet

Overview

T2500G-10TS supports a complete lineup of L2 features, including 802.1Q VLAN, QinQ, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. In addition, the switch provides advanced features for network maintenance, including LoopBack Detection and Cable Diagnostics. IGMP Snooping ensures intelligent forwarding of the multicast stream to only the appropriate subscribers, while IGMP throttling & filtering restricts each subscriber on a port level to prevent unauthorized multicast access.

Technical Features
  • Port Speed: Gigabit Ethernet connections on all ports provide full speed of data transferring
  • Console Ports: Selective RJ45 console port and Micro-USB console port
  • Security: Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X and Radius Authentication
  • Traffic Optimization: L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • Management Features: Web/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features
