TP-LINK DeltaStream 4-Port GPON

TP-LINK DeltaStream 4-Port GPON

£842.86 GBP
Sale price: £842.86 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 1:128 Split Ratio for High Capacity
  • Centralized Management
Out of stock
EAN: 4897098683156
SKU: 378570
Vendor: TP-Link
Order within xx hours for delivery on
Quantity

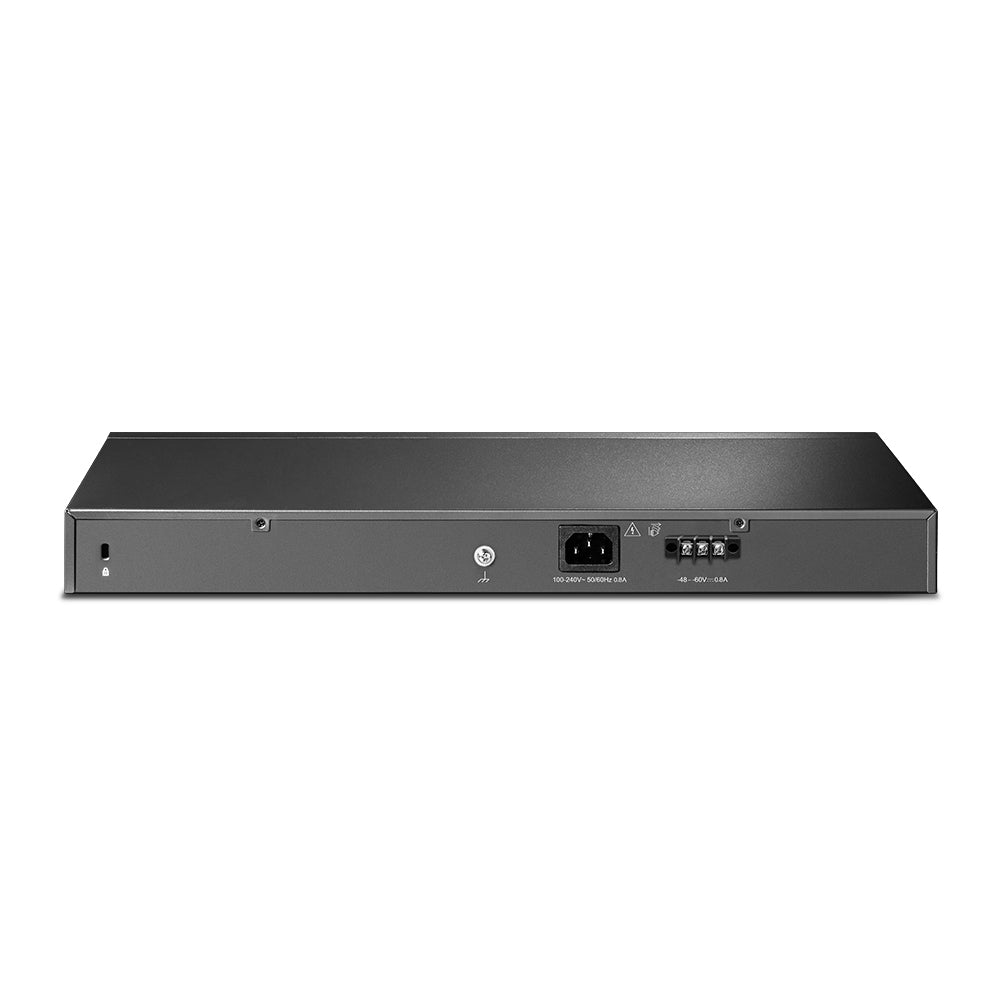

  • Power Supply: Dual power supply, AC: 100V~240V, 50/60Hz, DC: -38.4V~-72V
  • Dimensions (W × D × H): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
  • Power Consumption: Max. 58W
  • Max. Splitting Ratio: 1:128
  • Data Rate: Downstream: 2.5Gbps; Upstream: 1.25Gbps
  • Wave Length: Tx: 1490nm, Rx: 1310nm
  • Fiber Type: 9/125μm SMF (Single Mode Fiber)

• OLT Device
• Power Cord and Console Cable
• Installation Guide
• Mouting Brackets, Screws and Rubber Feet

Datasheet

Overview

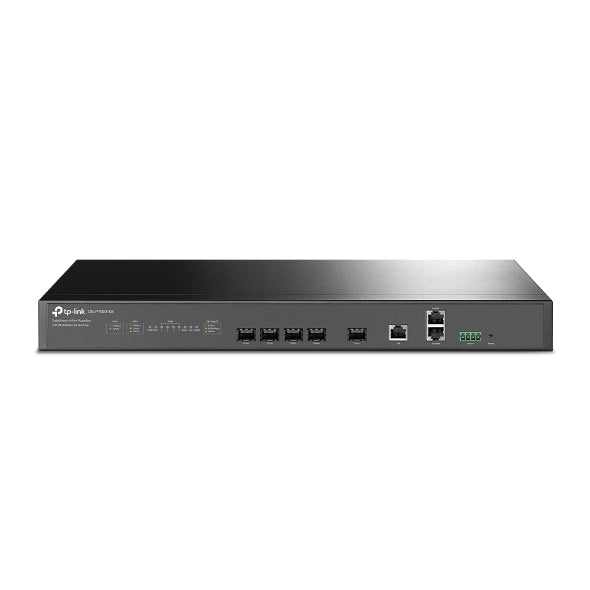

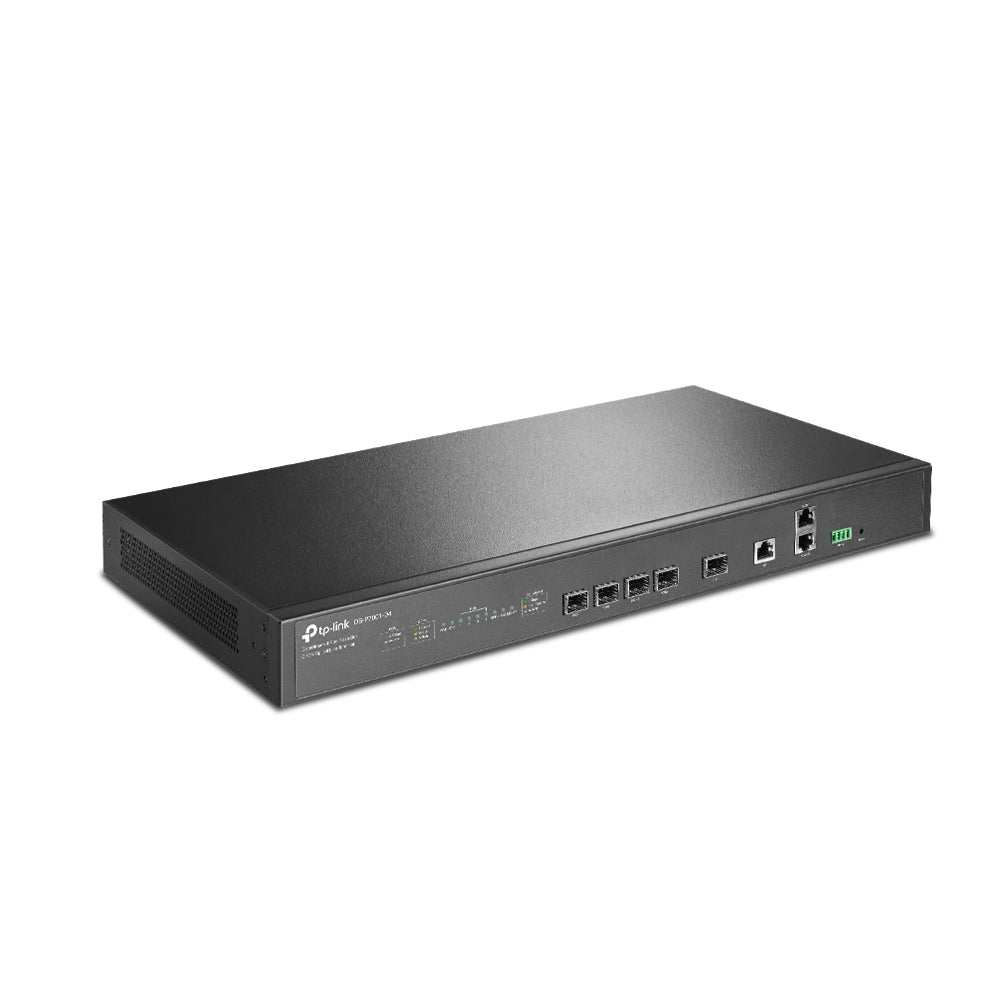

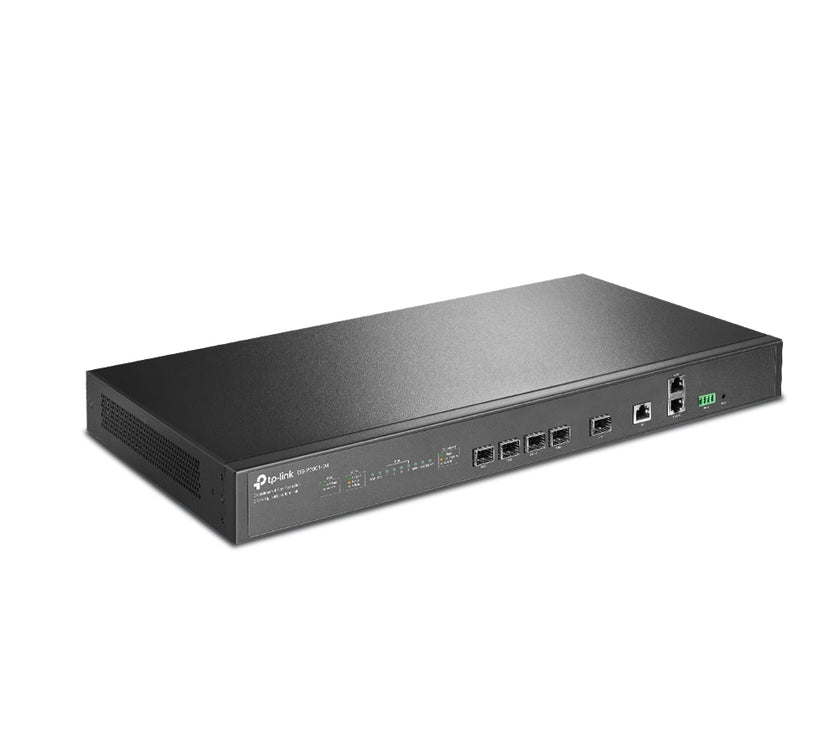

The TP-LINK DeltaStream 4-Port GPON OLT is a pizza-box style Optical Line Terminal (DS-P7001-04) that enables high-speed broadband deployment, featuring four GPON ports that support up to 512 ONTs via a 1:128 split ratio per port. It includes two high-speed uplink ports (\(1\times \) 10GE SFP+ and \(1\times \) 1GE RJ45), redundant dual power supplies for carrier-class reliability, and comprehensive L2/L3 functions. Management is handled centrally through the DeltaStream PON Management System (DPMS), as well as SNMP, CLI, and WEB UI.

Technical Features
  • 4 GPON Ports: Supports 1:128 splitting ratio per port, up to 512 ONTs per device
  • High-Speed Uplink Ports: 1× 10GE SFP+ port and 1× gigabit uplink port
  • Redundant Dual Power Supplies: Dual built-in AC+DC for carrier-class reliability
  • L2 & L3 Functions: Complete Layer 2 and advanced Layer 3 features for commercial needs
  • Centralized Management: Via DPMS, SNMP, CLI, and WEB UI
  • Advanced L2/L2+ Functions: Static Routing, IGMP Snooping, and more for diverse applications
