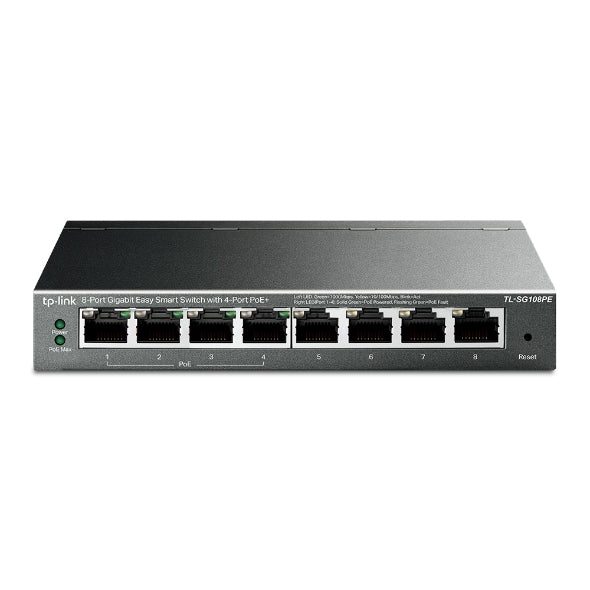

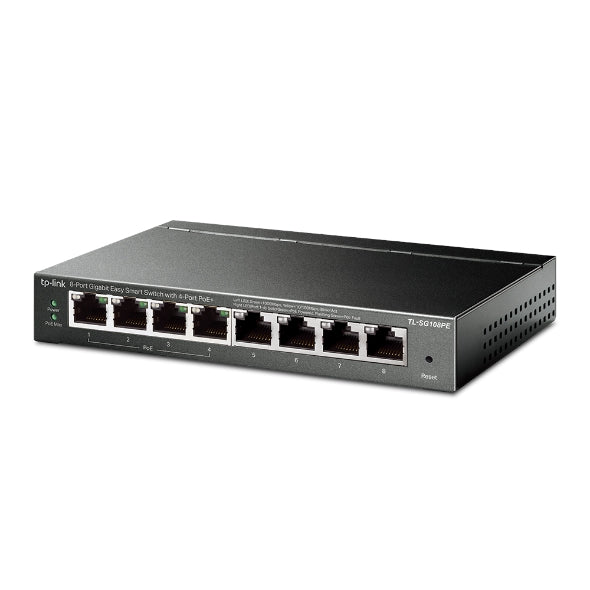

TP-Link 8-Port GB PoE Switch 4-Port PoE+

TP-Link 8-Port GB PoE Switch 4-Port PoE+

£84.05 GBP
Sale price: £84.05 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Compatible devices
  • Product Dimensions
In stock, 5 units
EAN: 6935364010621
SKU: 269277
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
  • Interface: Eight 10/100/1000Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
  • Network Media:

    10BASE-T: UTP category 3, 4, 5 cable (max 100m), EIA/TIA-568 100Ω STP (max 100m)
    100BASE-TX: UTP category 5, 5e cable (max 100m), EIA/TIA-568 100Ω STP (max 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (max 100m), EIA/TIA-568 100Ω STP (max 100m)

  • Fan Quantity: Fanless
  • Power Supply: External Power Adapter (Output: 53.5 VDC/1.31 A)
  • PoE Standard: 802.3 af/at compliant
  • PoE Ports (RJ45): Port 1- Port 4
  • PoE Power Budget: 64W
  • Dimensions ( W x D x H ): 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
  • Max. Power Consumption (No PD connected): 5.41 W (220V/50Hz)
  • Max. Power Consumption (With 64 W PD connected): 74.27 W (220V/50Hz)
  • Max Heat Dissipation (No PD connected): 18.45 BTU/h
  • Max Heat Dissipation (With 64 W PD connected): 253.26 BTU/h
  • TP-Link 8-Port GB PoE Switch 4-Port PoE+

Datasheet

Overview

Smart connectivity and power for 4 PoE devices (wireless access points, VoIP phone, IP Camera) and 3 additional wired connections (laptop, printer, etc)4 PoE ports (802. 3af) supporting up to 53w total PoE powerSimple setup and configuration with easy-to-use web-browser based interfaceSegment your network and prioritize your traffic with VLAN, QoS, IGMP Snooping, rate limiting and traffic monitoringMonitor your network status and your cabling with the port statistics and cable health8 auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with up to 16Gb non-blocking switchingLIFETIME , Next Business Day replacement and 24/7 chat with a NETGEAR expertTL-SG108PE offers network monitoring for users to observe trafc behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the trafc based on Port Priority, 802. 1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802. 1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Technical Features
  • Wired Ports: Eight 10/100/1000Mbps RJ45 ports
  • PoE+ Ports: Four 802.3af/at PoE+ ports
  • PoE Power per Port: Up to 30W for each port
  • Function: Data and power can be transferred on one single cable
  • Total PoE Power Budget: Supports PoE power up to 64W for all PoE ports
  • Features: Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Setup: Simple network set-up on top of plug-and-play connectivity
  • Management: Web-based user interface and Easy Smart Configuration Utility simplify configuration
