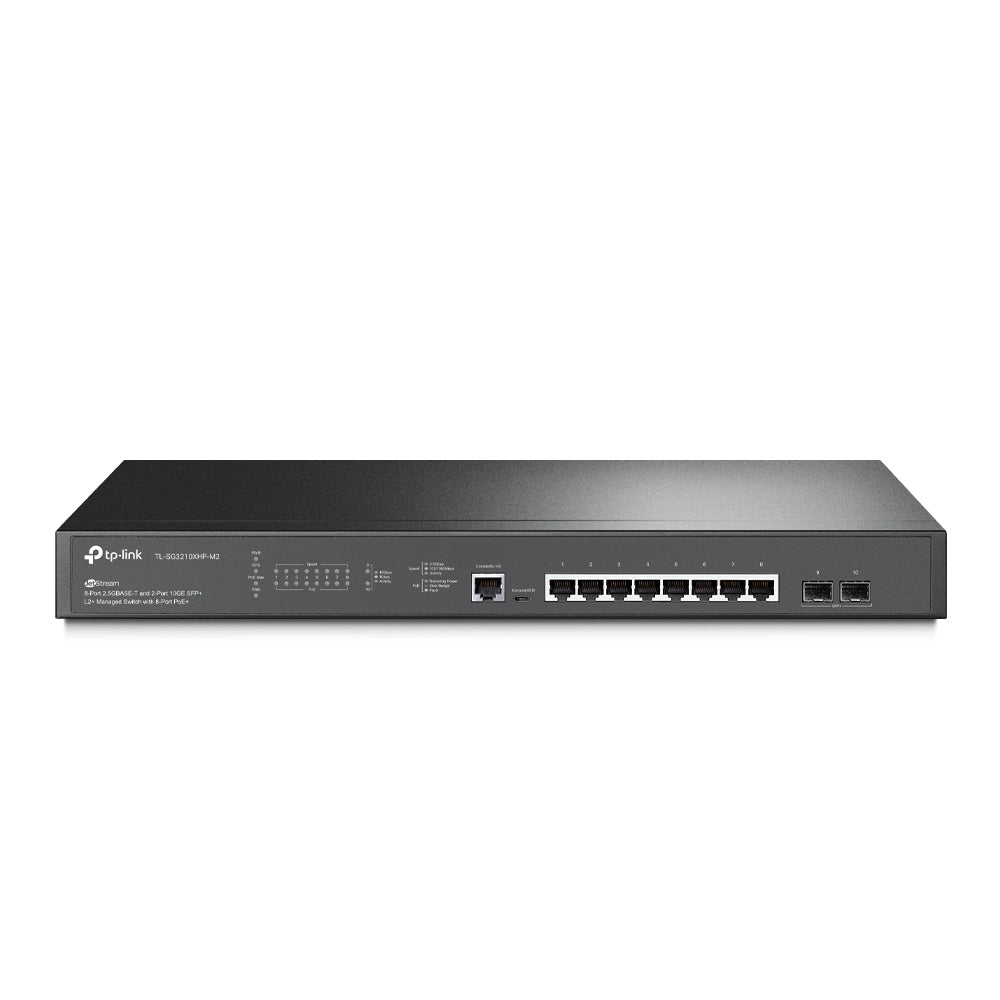

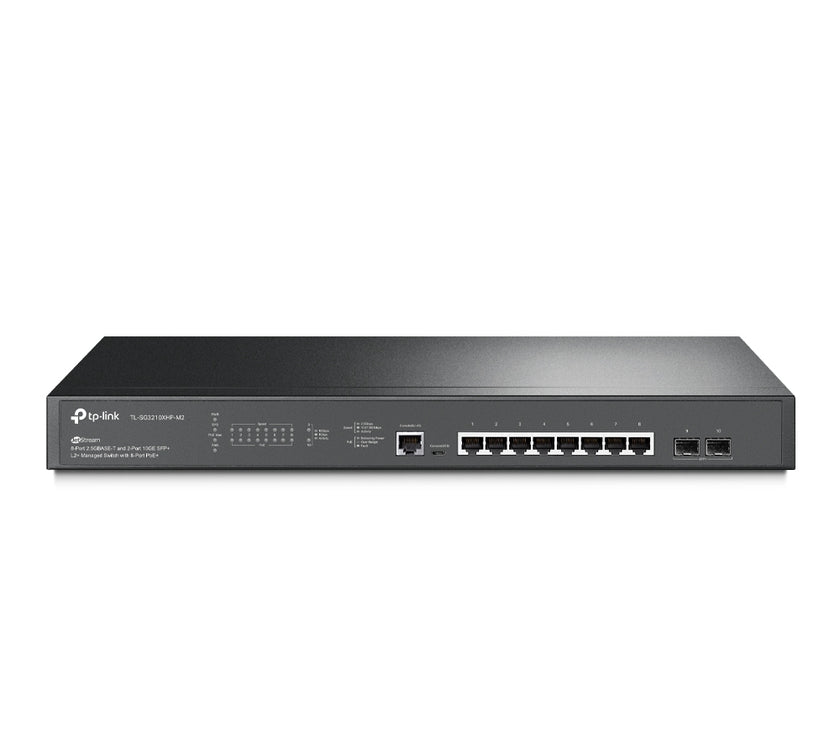

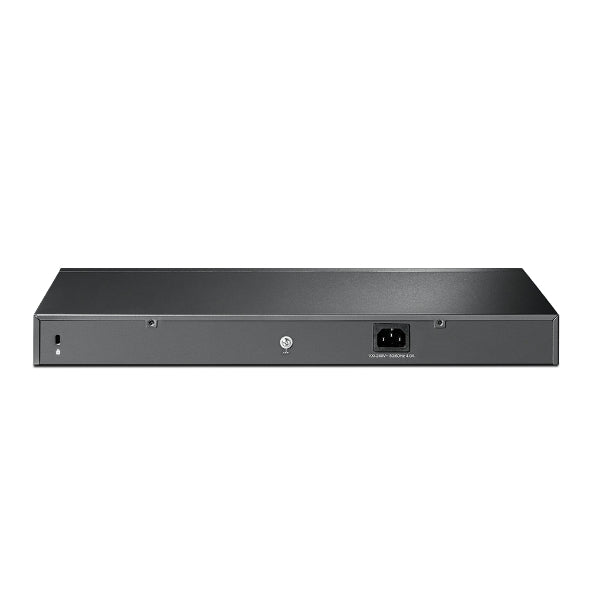

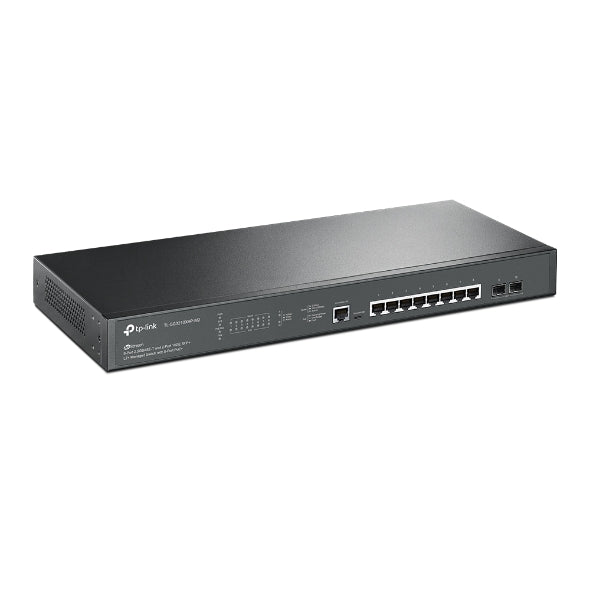

TP-Link 8-Port 2.5GBASE-T & 2-Port 10GE

TP-Link 8-Port 2.5GBASE-T & 2-Port 10GE

£332.46 GBP
Sale price: £332.46 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 240 W PoE Budget
  • Integrated into Omada SDN
In stock, 9 units
EAN: 6935364030803
SKU: 263178
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • RJ45 Ports: 8× 100/1000/2500 Mbps
  • Uplink Ports: 2× 10G SFP+ Slots
  • Console Ports: 1× RJ45 Console Port, 1× Micro-USB Console Port
  • Fan Quantity: 2
  • Power Supply: 100-240 V AC~50/60 Hz
  • PoE Standard: 802.3at/af compliant
  • PoE+ Ports: 8 Ports
  • PoE Power Budget: 240 W*
  • Dimensions ( W x D x H ): 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
  • Mounting: Rack Mountable
  • Max. Power Consumption (V1 - with 240 W PD): 291.49 W (110V/60Hz)
  • Max. Power Consumption (V1 - no PD): 17.24 W (110V/60Hz)
  • Max. Power Consumption (V2 - with 240 W PD): 292.0W (110V/60Hz)
  • Max Heat Dissipation (V1 - with 240 W PD): 994.56 BTU/h (110 V/60 Hz)
  • Max Heat Dissipation (V1 - no PD): 58.82 BTU/h (110 V/60 Hz)
  • Max Heat Dissipation (V2 - with 240 W PD): 996.35 BTU/hr (110 V/60 Hz)
  • TP-Link

Datasheet

Overview

TP-Link JetStream 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1s, IEEE 802.1w. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U

Technical Features
  • Ports (2.5G PoE+): 8× 2.5 Gbps ports (smash the gigabit barrier and unlock the full potential of WiFi 6 APs)
  • Uplink (10G): 2× 10 Gbps SFP+ slots (enable high-bandwidth connectivity and non-blocking switching capacity)
  • PoE Budget: 240 W (8× 802.3at/af-compliant PoE+ ports with a total power supply of 240 W*)
  • SDN Integration: Integrated into Omada SDN (Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring)
  • Management: Centralized Management (Cloud access and Omada app for ultra convenience and easy management)
  • Routing: Static Routing (Helps route internal traffic for more efficient use of network resources)
  • Security Strategies: Robust Security Strategies (IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more)
  • Traffic Optimization: Optimize Voice and Video Applications (L2/L3/L4 QoS and IGMP snooping)
