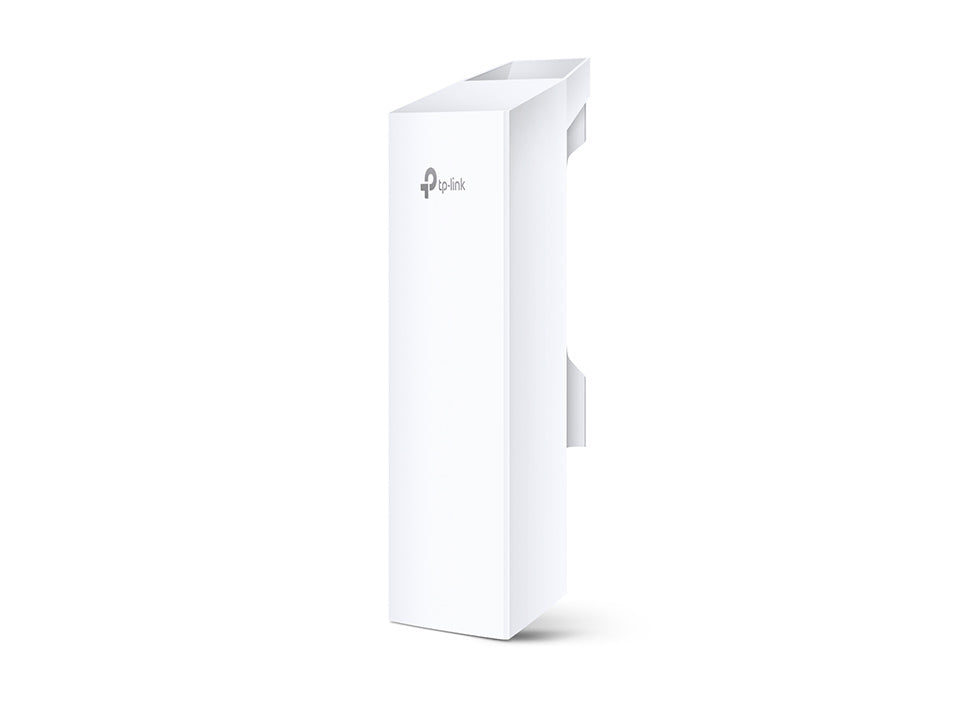

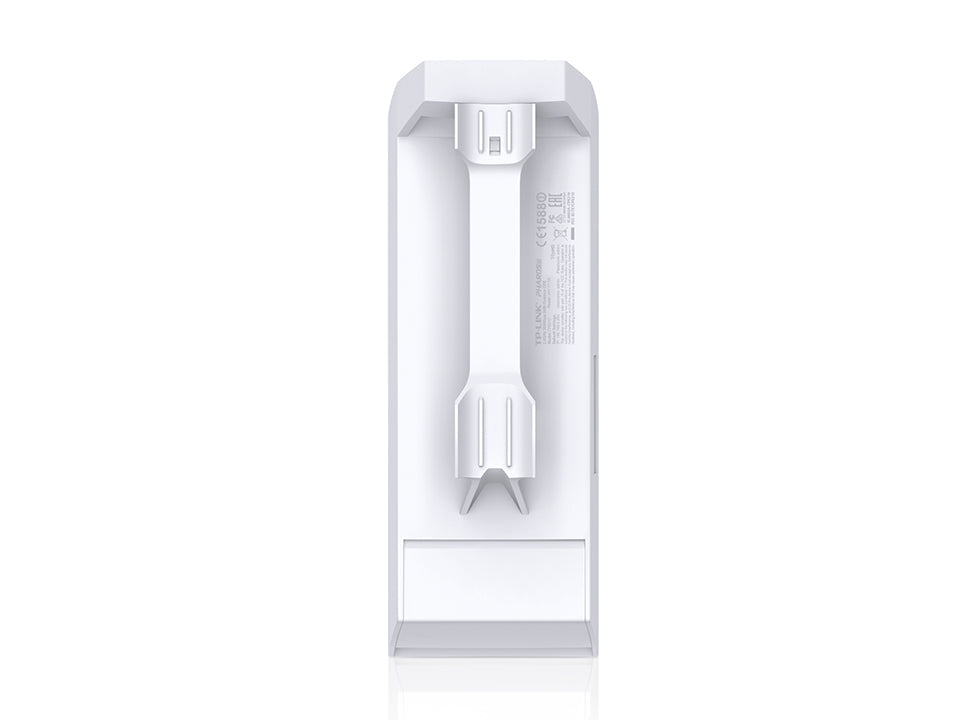

TP-Link 5GHZ 300mbs 13dbi outdoor CPE V3

TP-Link 5GHZ 300mbs 13dbi outdoor CPE V3

£49.86 GBP
Sale price: £49.86 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Coverage Range: Yes
  • Quantity: Yes
  • Transmission: Point to Point
In stock, 1 unit
EAN: 6935364070939
SKU: 96659
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • Processor: Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc
  • Memory: 64MB DDR2 RAM, 8MB Flash
  • Interface:

    1 10/100Mbps Shielded Ethernet Port (LAN0, Passive PoE in)
    1 Grounding Terminal
    1 Reset Button

  • Power Supply: Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
  • Voltage Range: 16-27VDC
  • Max. Power Consumption: 9.8 Watts Max (Note: Power draw is higher depending on cable length when using Passive PoE)
  • Dimensions (W x D x H): 224 x 79 x 60 mm
  • Antenna: Built-in 13dBi 2x2 Dual-polarized Directional Antenna
  • Antenna Beam Width: 45° (H-Plane) / 30° (E-Plane)
  • Protection: 15KV ESD Protection, 6KV Lightning Protection
  • Enclosure: Outdoor ASA stabilized plastic material, IPX5 waterproof Certification
  • TP-Link CPE510 5GHz 300Mbps 13dBi Outdoor CPE
  • 24V 0.5A Passive PoE Adapter
  • Pole Mounting Straps
  • AC Power Cord
  • Installation Guide

Datasheet

Overview

TP-LINK CPE510 - CPE510 WLAN Access Point 300 Mbps Power over Ethernet (PoE) White (CPE510 OUTD WLAN Access Point - TP-LINK CPE510 Outdoor 5GHz 300Mbps High Power WLAN Access Point, WISP Client Router, Transmission Power Adjustable from 0 to 27dBm, QCA, 2T. 2R, 5Ghz 802.11a/n, 2 internal dual polarized 13dBi directional antennas)

Technical Features
  • Antenna: Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
  • Transmission Power: Adjustable from 0 to 23dBm/200mw
  • Range: System-level optimizations for more than 15km long range wireless transmission
  • Technology: TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology (improves product performance in throughput, capacity and latency performance, ideal for PTMP applications)
  • Management: Centralized Management System – Pharos Control
  • Operation Modes: AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP)
  • PoE: Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
