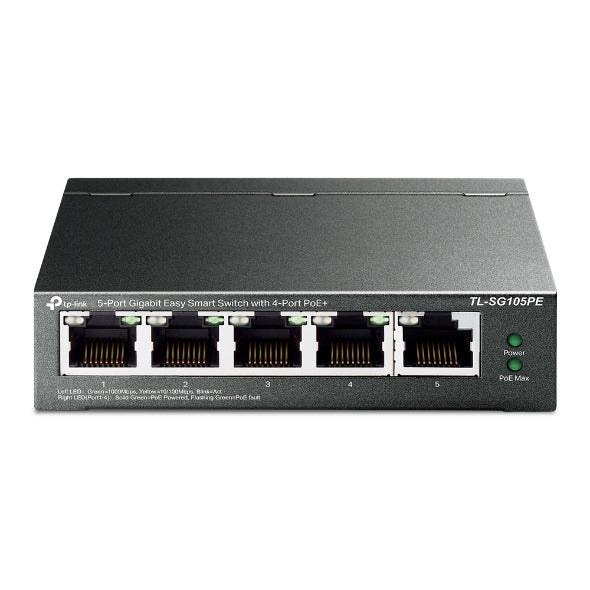

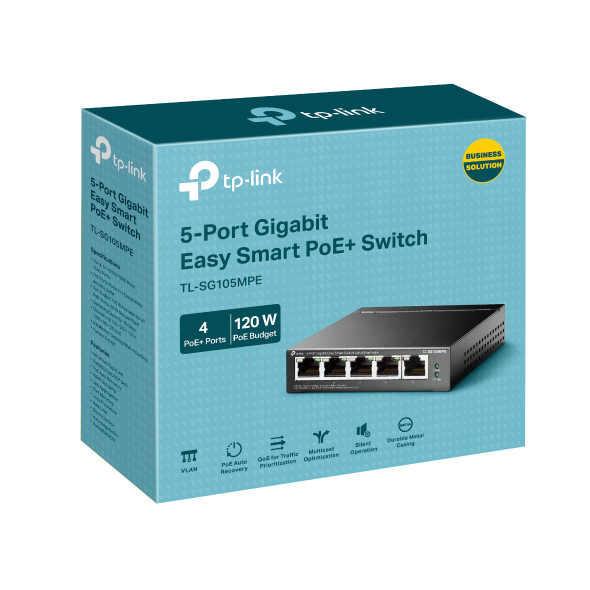

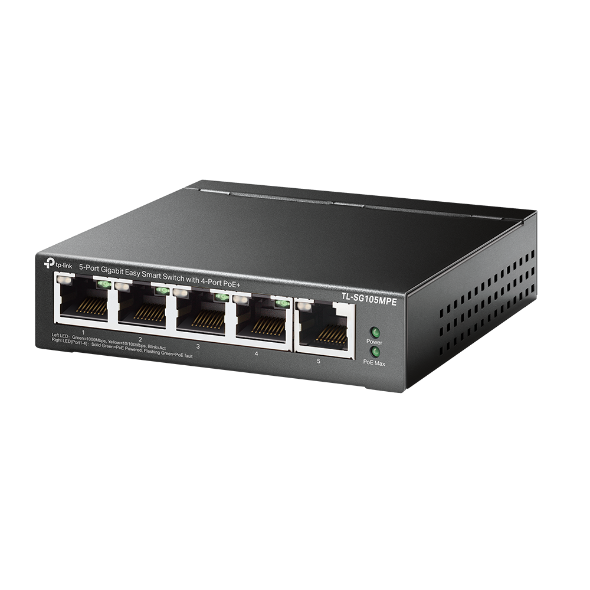

TP-Link 5-Port Gigabit Smart Switch

TP-Link 5-Port Gigabit Smart Switch

£53.65 GBP
Sale price: £53.65 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Simple network setup
  • Up to 120 W for all PoE ports*
In stock, 3 units
EAN: 6935364052751
SKU: 252983
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
  • Interface: Five 10/100/1000Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
  • Network Media:

    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)
    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m), EIA/TIA-568 100Ω STP (maximum 100m)

  • Fan Quantity: Fanless
  • Power Supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
  • PoE Ports (RJ45) Standard: 802.3 af/at compliant
  • PoE Ports (Quantity): Port 1- Port 4
  • PoE Power Budget: 120 W
  • Dimensions ( W x D x H ): 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
  • Max. Power Consumption (No PD connected): 4.34 W (220 V/50 Hz)
  • Max. Power Consumption (With 120 W PD connected): 137.01 W (110 V/50 Hz)
  • Max. Heat Dissipation (No PD connected): 14.8 BTU/h
  • Max. Heat Dissipation (With 120 W PD connected): 467.17 BTU/h
  • Power Adapter
  • Installation Guide
  • Rubber Feet

Datasheet

Overview

The TL-SG108E features 8 auto-negotiating Gigabit ports, VLAN support, Port Mirroring, QoS, Loop Prevention, and Cable Diagnostics. Fanless metal housing ensures silent, durable operation. Advanced QoS ensures lag-free performance for voice and video.

Technical Features
  • Wired Ports: Five 10/100/1000Mbps RJ45 ports
  • PoE+ Ports: Equipped with four 802.3af/at PoE+ ports
  • PoE Power per Port: Up to 30W for each port (data and power transferred on one single cable)
  • Total PoE Power Budget: Supports PoE power up to 120 W for all PoE ports*
  • Features: Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Setup: Simple network set-up on top of plug-and-play connectivity
  • Management: Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Design: Fanless design lowers energy consumption and eliminates operating noise
