TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE

£37.16 GBP
Sale price: £37.16 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • AP router, client router AP (WISP)
  • Centralized management
In stock, 50 units
EAN: 6935364071684
SKU: 98898
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • Standards and Protocols: IEEE 802.3i/802.3u/802.3ab/802.3x
  • Interface: 8× 10/100/1000Mbps RJ45 Ports (AUTO Negotiation/AUTO MDI/MDIX)
  • Fan Quantity: Fanless
  • External Power Supply: External Power Adapter (Output: 5VDC/0.6A)
  • Jumbo Frame: 15 KB
  • Switching Capacity: 16 Gbps
  • Dimensions (W x D x H): 7.1 × 3.5 × 1.0 in. (180 × 90 × 25.5 mm)
  • Max. Power Consumption: 4.63 W (220V/50Hz)
  • Max. Heat Dissipation: 15.80 BTU/h
  • 1 x TP-Link CPE210
  • 1 x 24V 0.6A Passive POE Adapter
  • 1 x Power Cable
  • Mounting Straps
  • Documentation

Datasheet

Overview

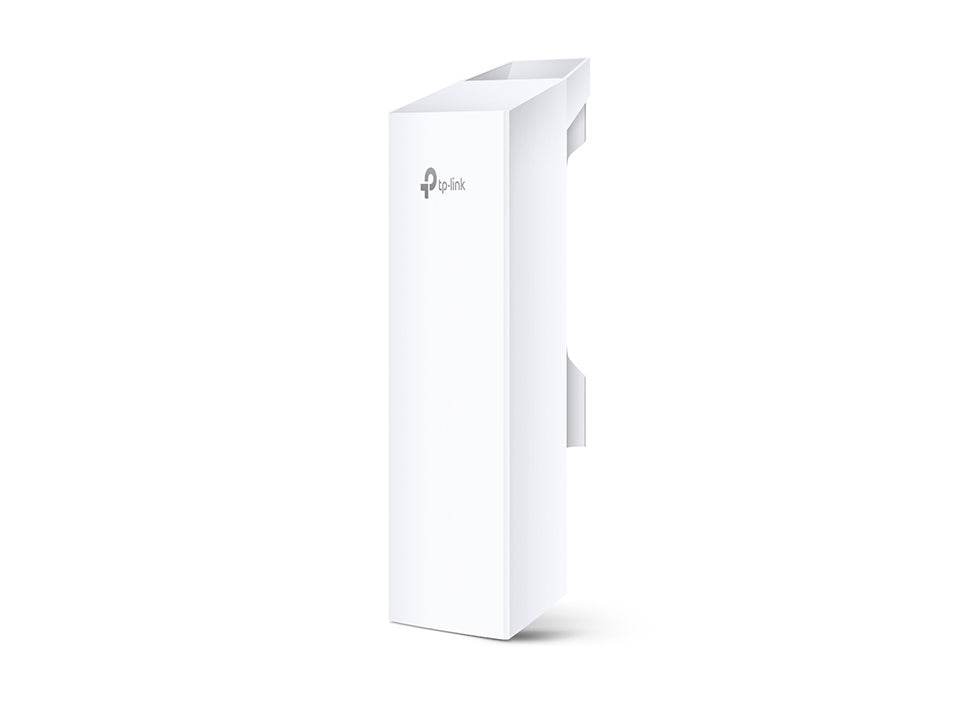

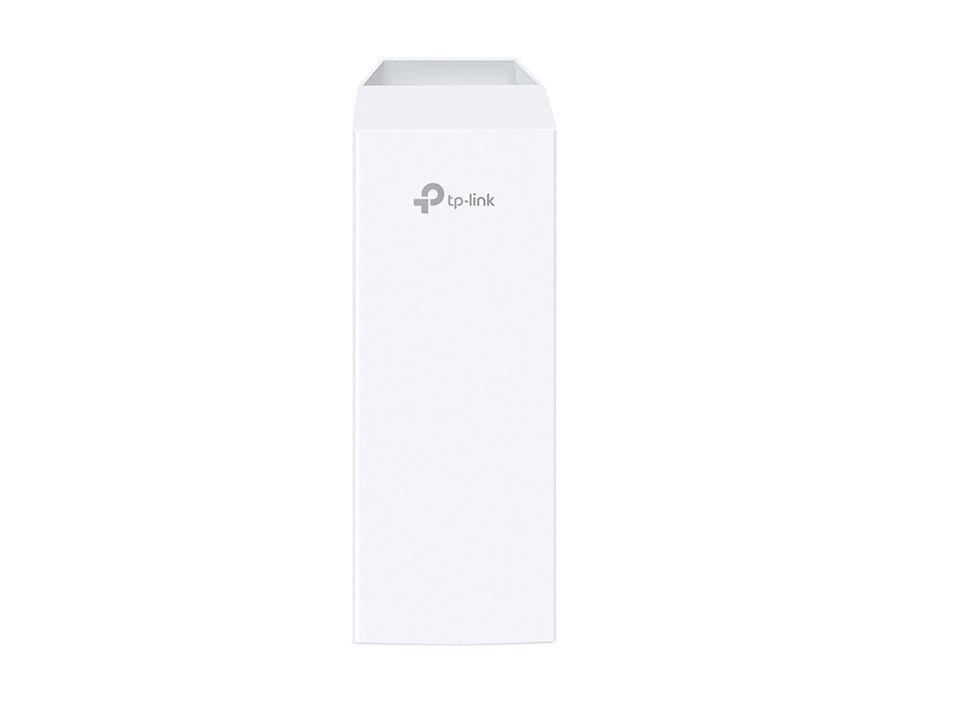

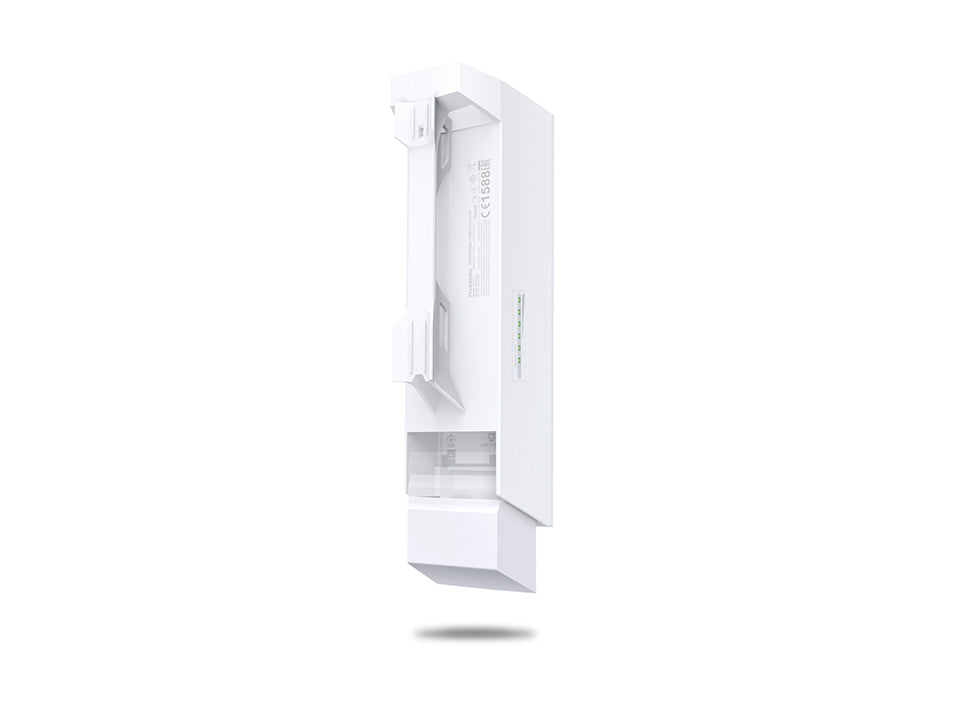

The TP-Link CPE210 V3 is an outdoor-rated, 2.4GHz wireless bridge designed for creating stable, long-range point-to-point or point-to-multipoint network links over distances exceeding 5km. It features an integrated 9dBi directional antenna, durable IPX5 weatherproofing, and utilizes proprietary TDMA technology to ensure reliable performance. Powered by passive PoE for flexible installation, it is a popular, cost-effective solution for extending internet access between buildings.

Technical Features
  • Antenna: 9dBi dual-polarization MIMO directional antenna
  • Processor: Qualcomm Atheros 560MHz CPU, MIPS 74Kc
  • Memory: 64MB DDR2 RAM, 8MB Flash
  • Interface: 1 x Shielded 10/100Mbps Ethernet Port (LAN0, Passive PoE Input), 1 Ground Terminal, 1 Reset Button
  • Transmit Power: Adjustable from 0 to 25dBm/500mw
  • Technology: TP-LINK Pharos MAXtream TDMA technology
  • Operating modes: AP, Client, AP Router, AP Router Client (WISP)
  • PoE Distance: Up to 60 meters (200 feet)
  • Protection: Lightning protection up to 6000V
  • Housing: IPX5 waterproof certified
  • OS Requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX, or Linux
