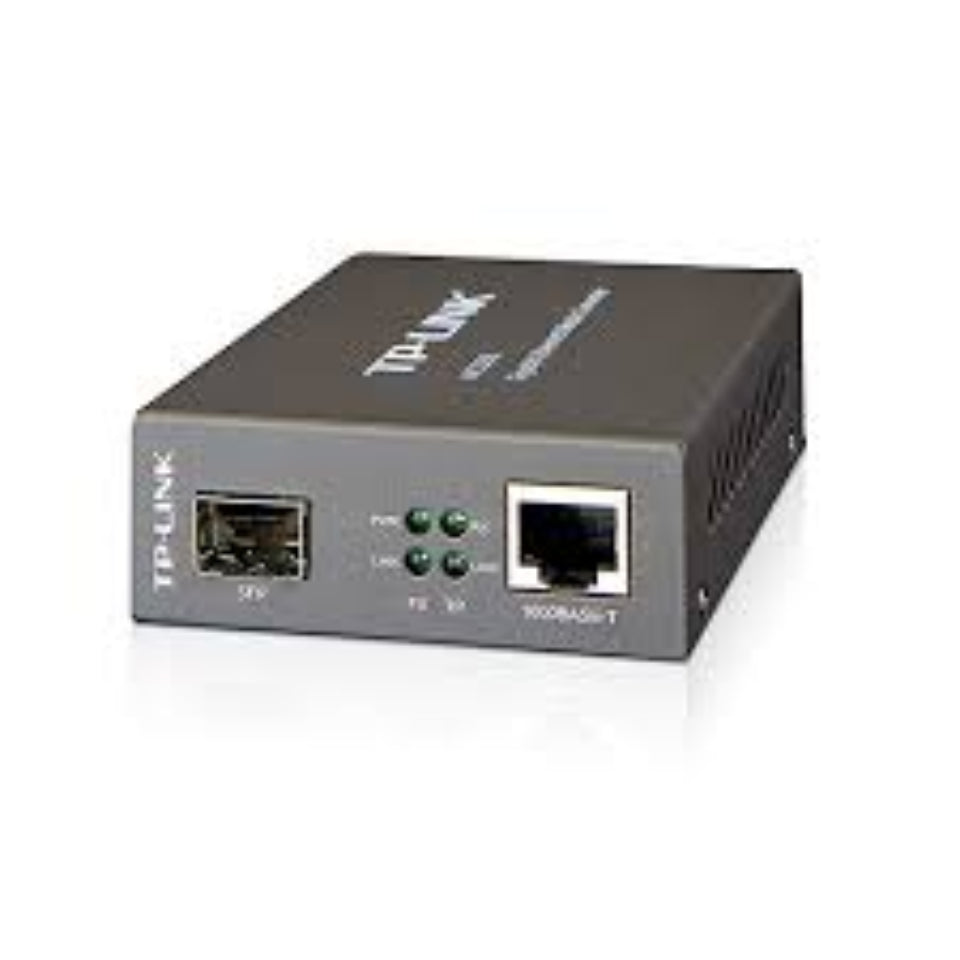

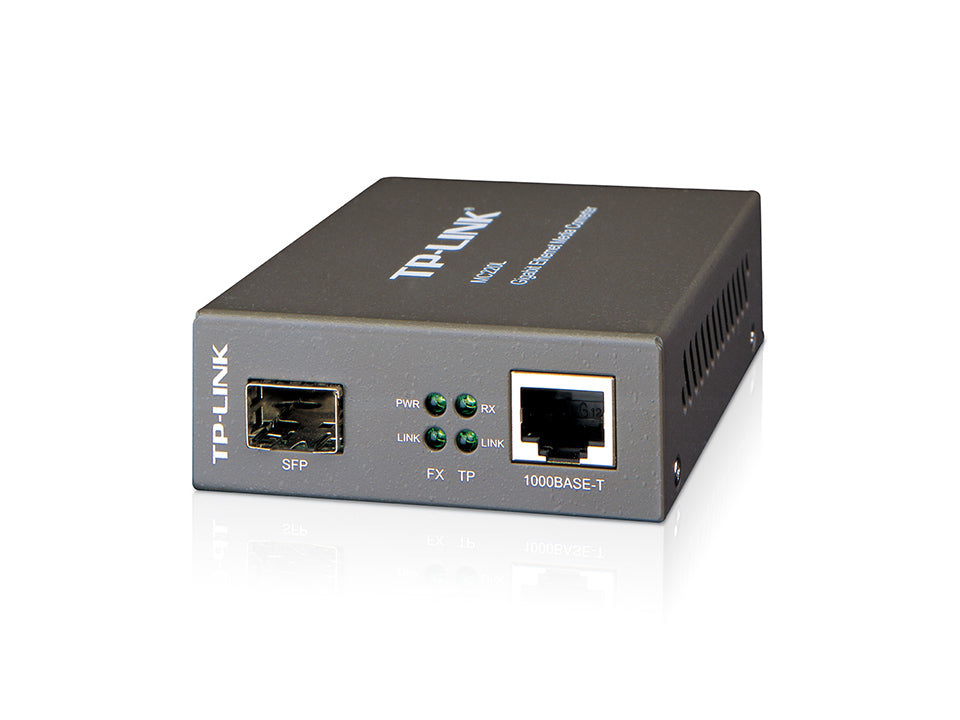

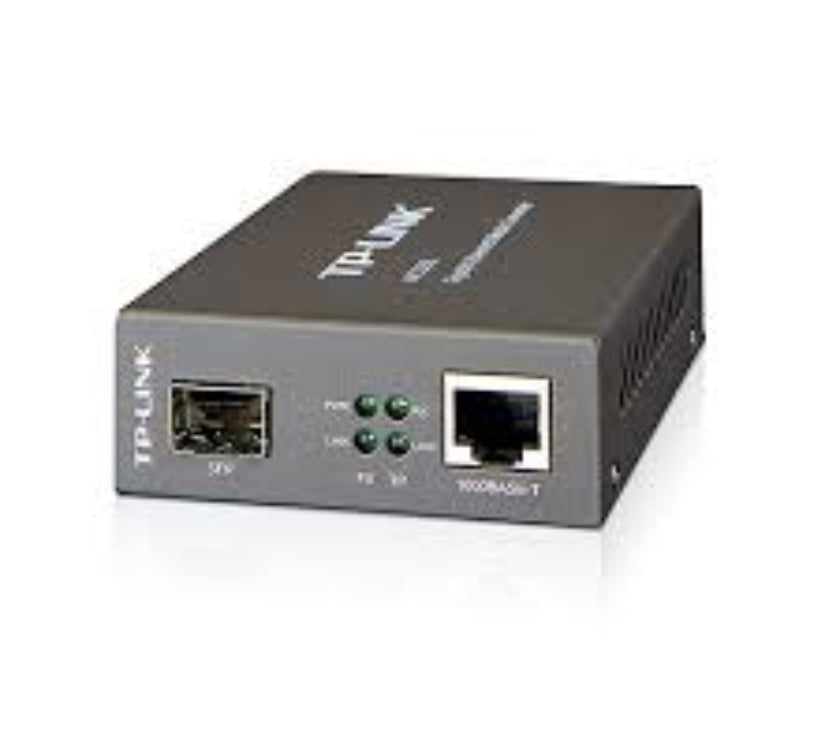

TP-Link 1000M RJ45 to 1000M SFP slot V4

TP-Link 1000M RJ45 to 1000M SFP slot V4

£16.51 GBP
Sale price: £16.51 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • 1× Gigabit RJ45 Port
  • Chassis TL-MC1400 Rack-mountable
In stock, 184 units
EAN: 6935364081294
SKU: 203580
Vendor: TP-Link
Order within xx hours for delivery on
Quantity
  • Ports: 1× 1000M SFP port, 1× 10/100/1000M RJ45 port (Auto MDI/MDIX)
  • Wave Length: Depends on the SFP module used
  • Network Media 1000BASE-X: Multi-mode / Single-mode SFP module
  • Network Media 1000BASE-T: UTP Cat5/5e cable (max 100m), EIA/TIA-568 100Ω STP (max 100m)
  • LED Indicators: PWR, Link/Act
  • Dimensions (W × D × H): 3.7 × 2.9 × 1.1 in (94.5 × 73.0 × 27.0 mm)
  • Power Supply: External Power Adapter
  • Max Power Consumption: 1.7 W
  • Safety & Emission: FCC, CE, RoHS

• Media Converter MC220L
• Power Adapter
• Installation Guide

Datasheet

Overview

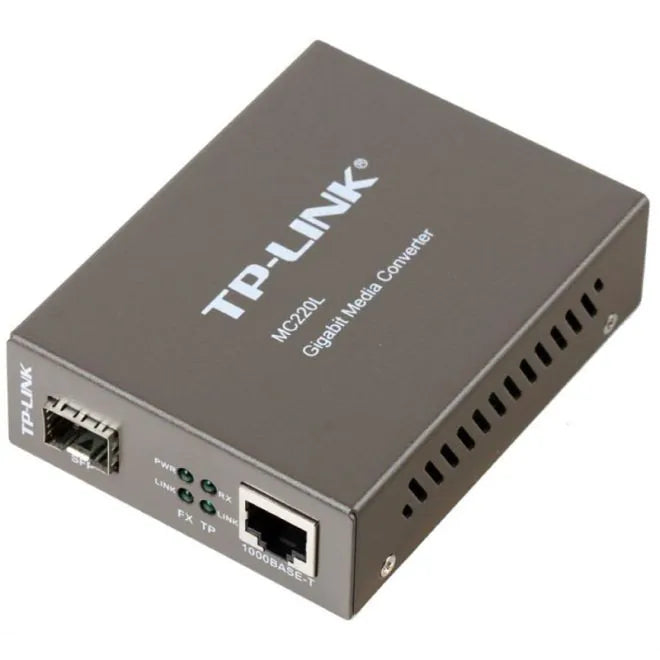

The TP-Link MC220L is a Gigabit SFP media converter that converts a 1000M RJ45 copper connection to a 1000M SFP fiber-optic connection, and vice versa. It is a standalone device that works with a suitable SFP module (sold separately) and supports both multi-mode and single-mode fiber, extending network distances up to 0.55km for multi-mode and 10km for single-mode. It complies with IEEE 802.3ab and IEEE 802.3z standards, features auto MDI/MDI-X for the RJ45 port, and includes LED indicators for status monitoring.

Technical Features
  • RJ45 Ports: 1× 10/100/1000 Mbps with Auto-Negotiation and Auto-MDI/MDIX
  • Duplex Mode: Auto-negotiation for Half-Duplex / Full-Duplex
  • Standards Compliance: IEEE 802.3ab and IEEE 802.3z
  • FX Port: Supports hot-swappable SFP modules
  • Transmission Distance: Depends on inserted SFP module
