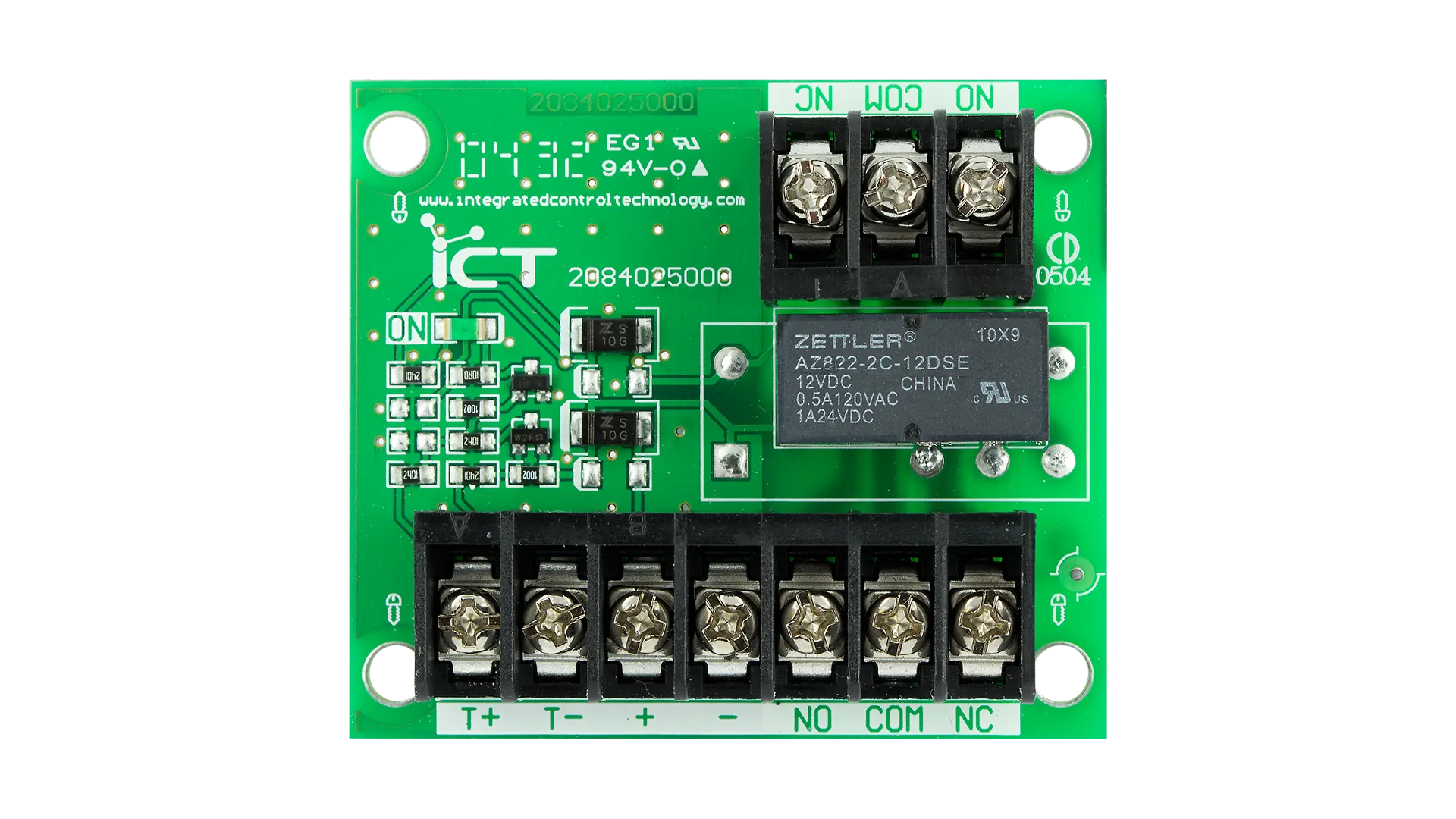

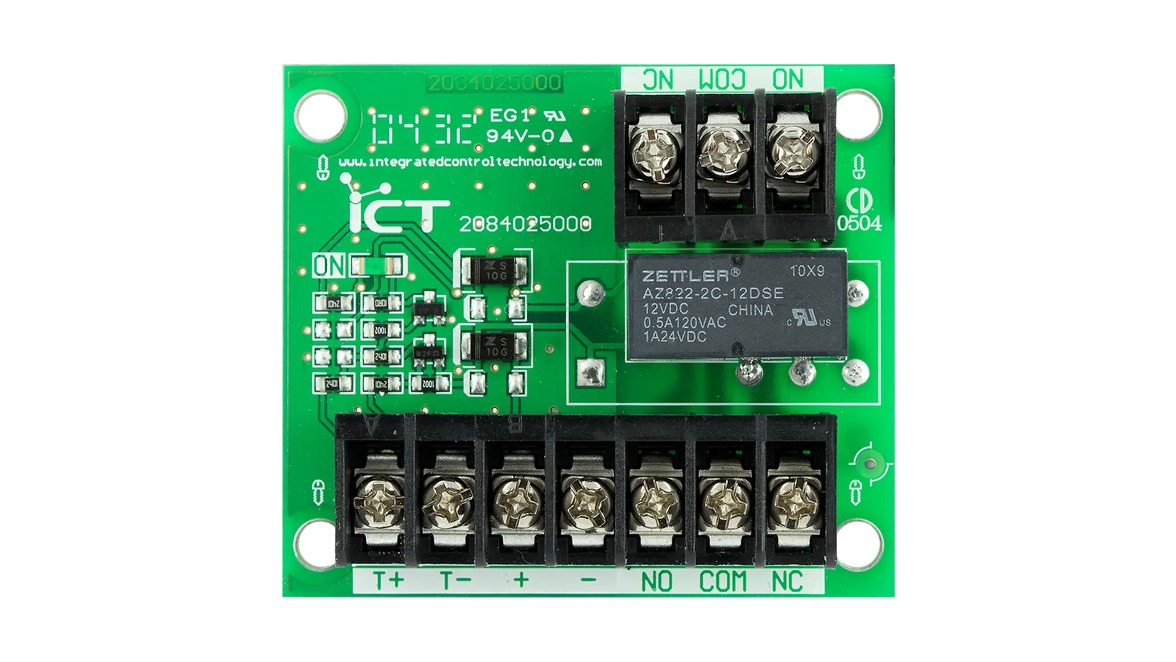

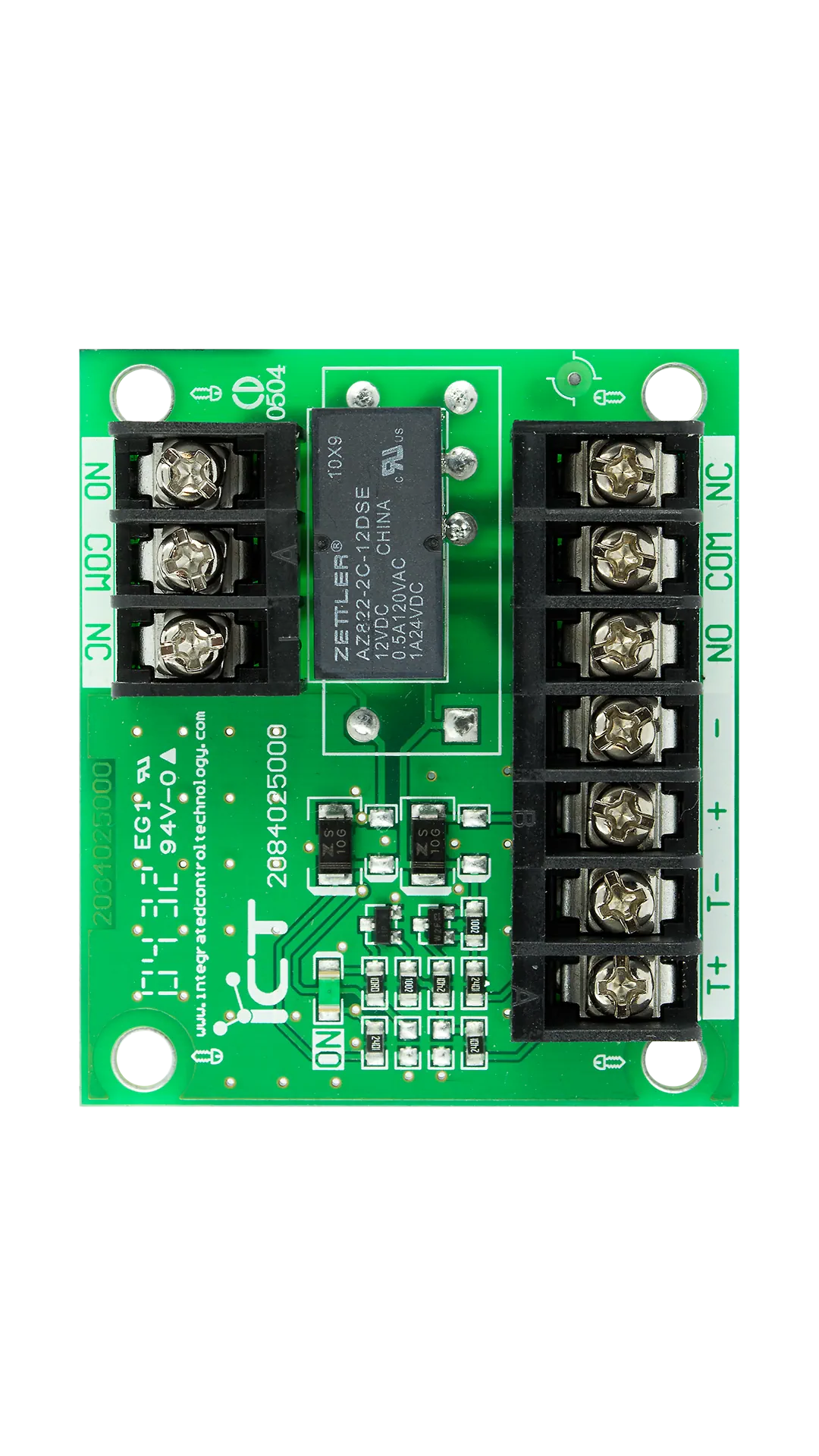

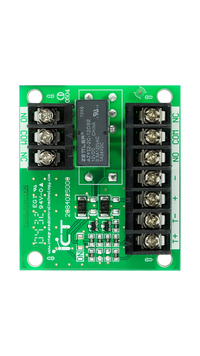

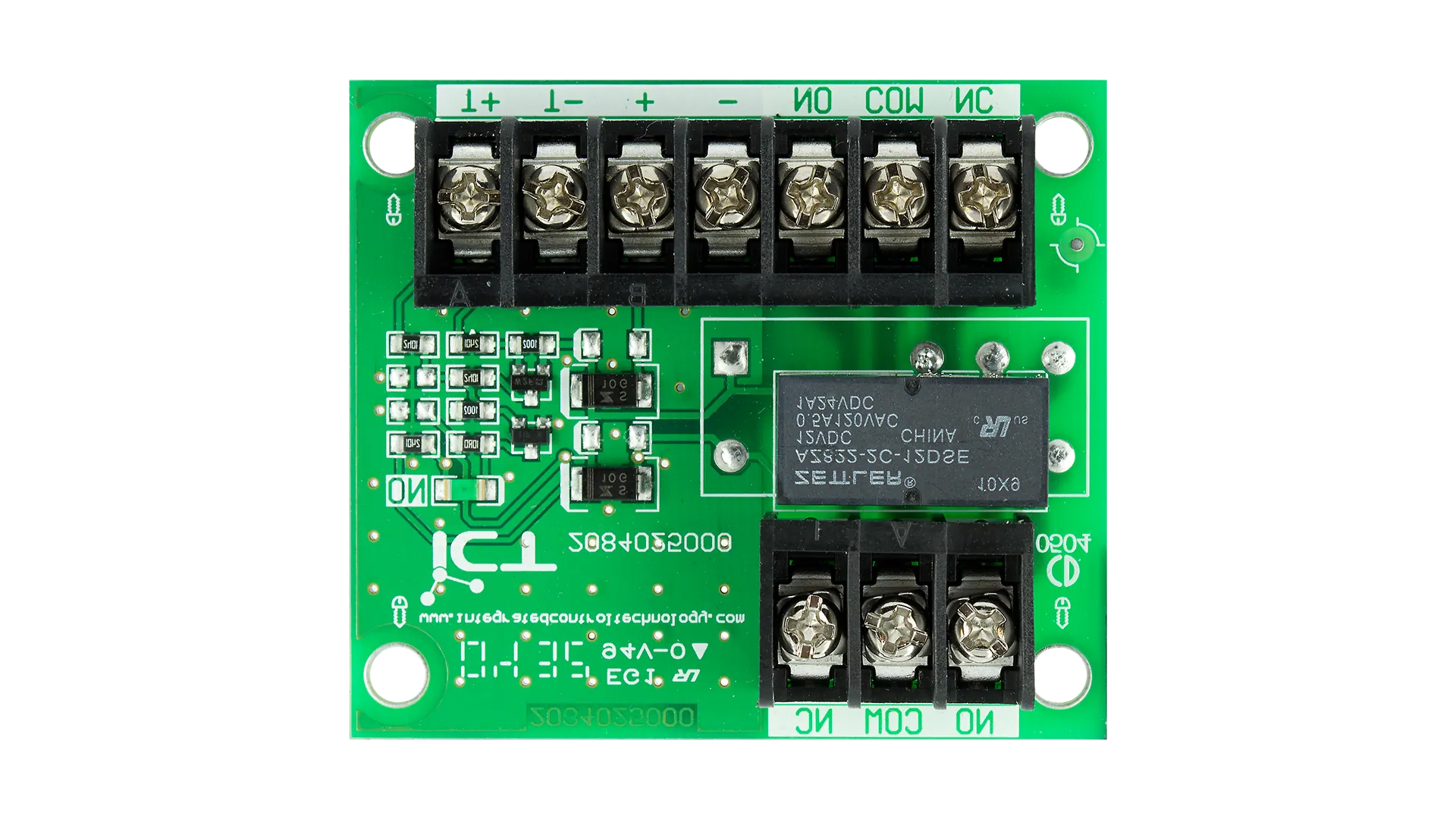

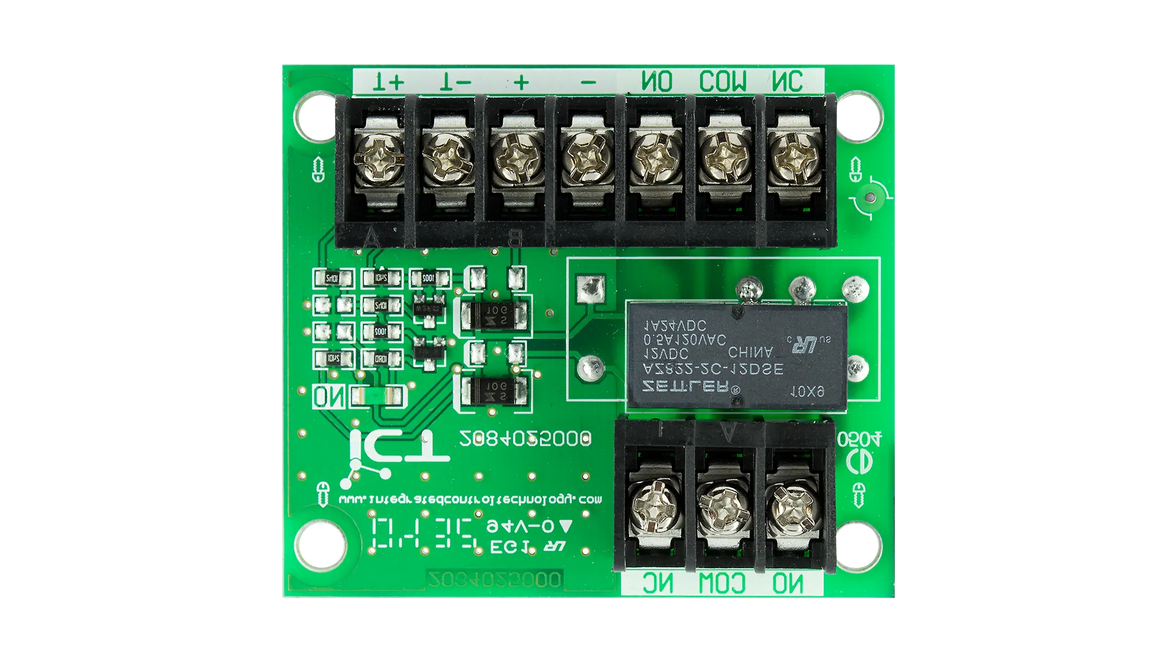

STP DOUBLE POLE RELAY BOARD 12/28VAC/DC

STP DOUBLE POLE RELAY BOARD 12/28VAC/DC

£24.16 GBP
Sale price: £24.16 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Flexible Powering
  • Double Pole Double Throw
In stock, 11 units
EAN: STP-DRB-200
SKU: STP-DRB-200
Vendor: STP
Order within xx hours for delivery on
Quantity
  • Control input voltage: 12–28Vac/dc
  • Relay contacts: NO/NC/COM (x2)
  • Relay rating: 5A @ 24Vdc
  • Dimensions: 68mm (L) × 50mm (W) × 33mm (D)
  • 1 x STP-DRB-200 Relay Board
  • 1 x Self-Adhesive Fixing Pad
  • Product Information / Datasheet

Datasheet

Overview

The STP-DRB-200 is a versatile and compact Double Pole Relay Board designed for switching two independent circuits simultaneously via a controlled input voltage. Commonly referred to in the industry as a "Very Handy Little Relay" (VHLR), it is a staple in access control, alarm systems, and general automation panels.

Technical Features
  • Power Input: 12V to 28V AC/DC control input range
  • Switching: DPDT dry contacts for isolating and switching two separate volt-free circuits
  • Contact Rating: Two sets of NO/NC/COM relay contacts rated 5A @ 24Vdc
  • Installation: Compact size (~68mm × 50mm) with self-adhesive pad for easy mounting
