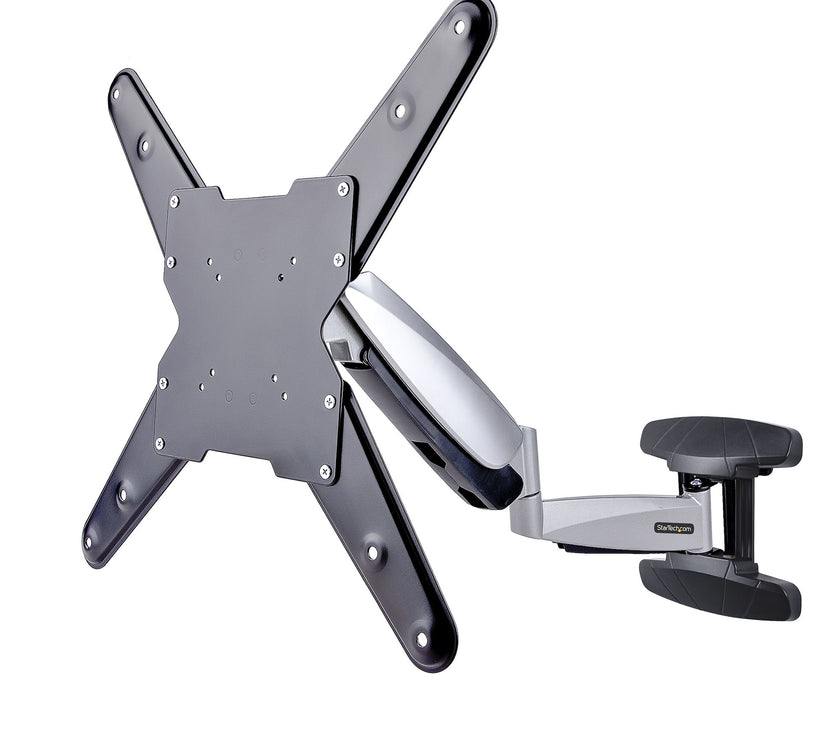

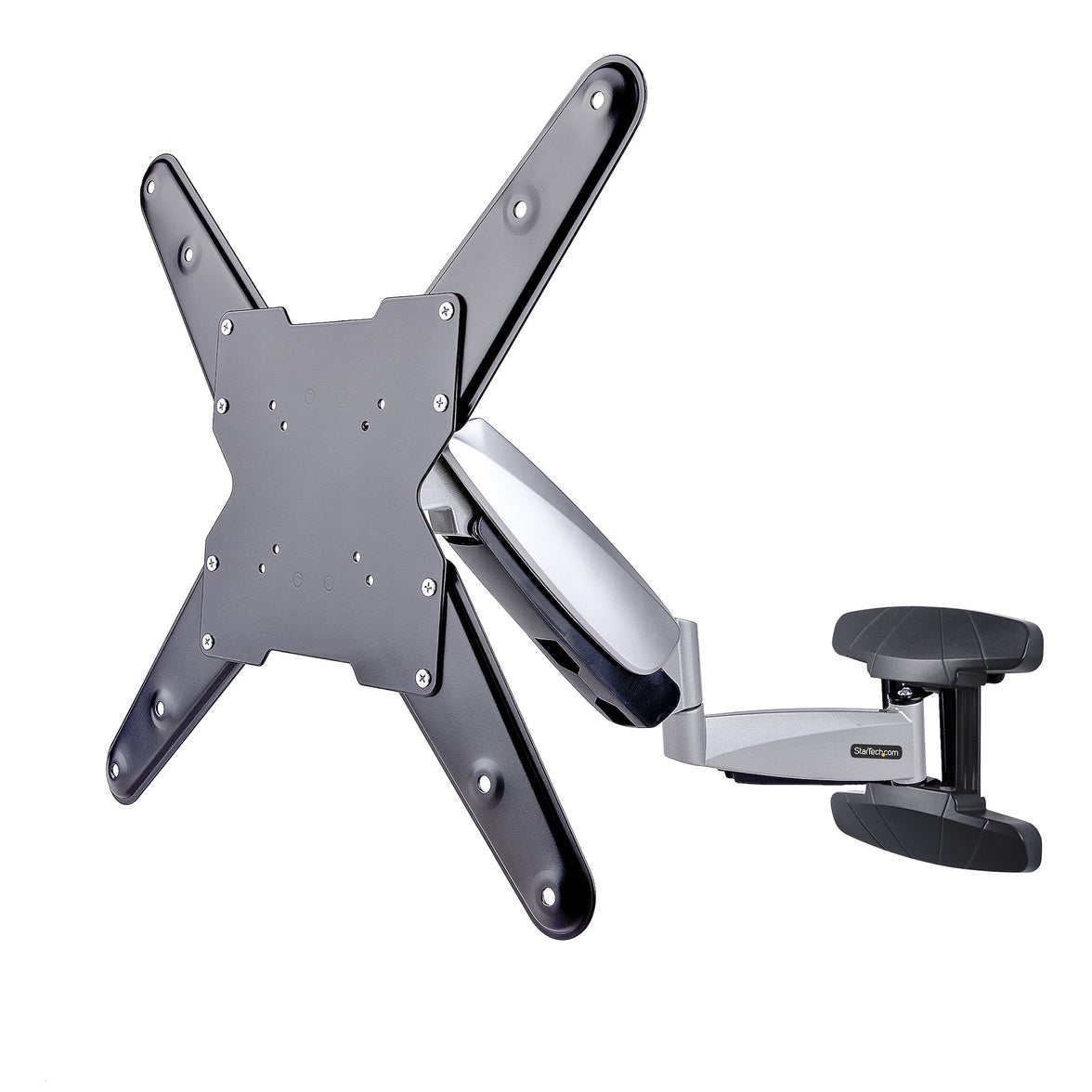

StarTech VESA TV Wall Mount

StarTech VESA TV Wall Mount

£108.66 GBP
Sale price: £108.66 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Spring-assisted height
  • Built-in cable management
In stock, 1 unit
EAN: 65030895149
SKU: V313028
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Wallmountable: Yes
  • Cable Management: Yes
  • Tools Included: Yes
  • Articulating: Yes
  • Number of Displays Supported: 1
  • Orientation: Horizontal
  • Mounting Options: Wall-Mount
  • Minimum Profile from Wall: 58 mm (2.3 in)
  • VESA Hole Pattern(s): 75x75 mm
  • 1 - Arm assembly
  • 2 - Decorative covers
  • 2 - VESA extension plates, LH
  • 2 - VESA extension plates, RH
  • 8 - VESA extension plate screws
  • 1 - Wrench
  • 1 - 4mm hex key
  • 1 - 6mm hex key
  • 1 - Bubble level
  • 4 - M5x14mm screws
  • 4 - M6x14mm screws
  • 4 - M6x30mm screws
  • 4 - M8x30mm screws
  • 4 - M8x50mm screws
  • 4 - Display washers, small
  • 4 - Display washers, large
  • 8 - Short spacers
  • 8 - Tall spacers
  • 5 - Wall mounting screws
  • 5 - Concrete anchors
  • 5 - Wall mounting washers
  • 1 - Manual

Datasheet

Overview

The steel and aluminum construction of this VESA TV Wall Mount supports TVs from 23" to 55" and up to 66lb (30kg). The arm assembly provides smooth one-touch height adjustment thanks to its spring-loaded mechanism that acts as a counterbalance. The VESA plate supports mounting patterns of 75x75 to 400x400.

Technical Features
  • Height Adjustable TV Wall Mount: Spring-assisted height range 12.6 in (32 cm); supports TVs up to 55 in; max weight 66 lb (30 kg); single-stud design from powder-coated diecast aluminum

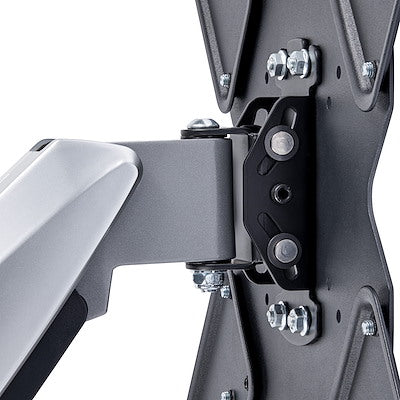

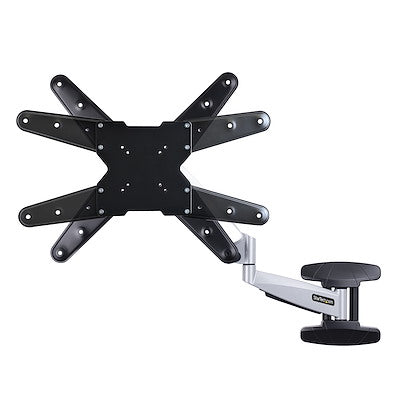

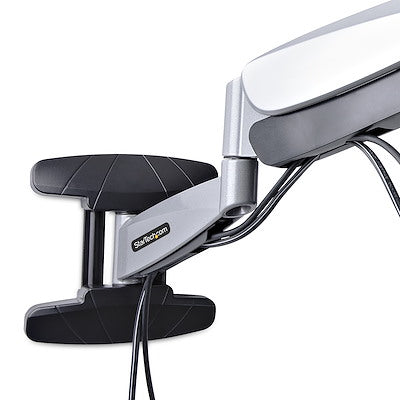

  • One-Touch Motion: Full-motion mount with spring mechanism for effortless viewing angle and height adjustments; VESA plate offers +/-90° swivel, +8/-15° tilt, +/-3° rotation; toolless adjustment with built-in cable management

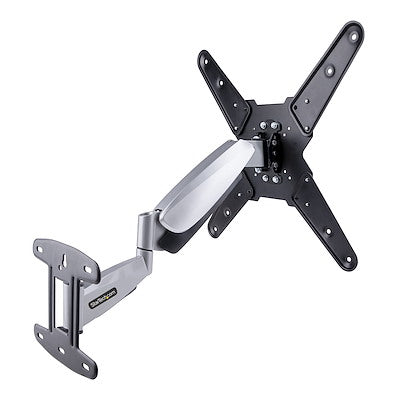

  • Range of Motion: Low profile jointed arm assembly; folds to 2.2 in (5.8 cm) from wall; max arm extension 23.4 in (59.5 cm); lateral range 3.9 ft (1.19 m) ideal for corner mounting
  • Compatibility: Supports TVs up to 55" from LG, Samsung, Sony, Hisense, Sharp, etc.; compatible with VESA patterns 75x75, 100x100, 200x100, 200x200, 300x300, 400x200, 400x400; includes spacers and M5/M6/M8 screws
  • Quick and Clean Installation: Ships pre-assembled; wall plate with mounting holes; includes installation template, bubble level, and hardware for wood studs and concrete walls
