StarTech USBC Multiport Adapter
- Portable design
- Multiport adapter
Product Specification
Box Content
Documents
Overview
This USB-C multiport adapter with DP 1.4 compatibility turns your iPad Pro, Surface Pro 7, Google Pixelbook and other USB-C™ tablets and laptops into a workstation, anywhere you go. The USB Type-C multiport adapter provides 4K 60Hz HDMI (HDR10) video output, a USB Type-C™ port (data/power), two USB 3.2 Gen 1 Type-A (5Gbps) ports, and a TRRS 4-channel audio port for headset and mic, all through a single connection to your laptop's USB-C or Thunderbolt 3™ port. It offers advanced charging through USB 100W Power Delivery 3.0 and eliminates the need for an attached cable with a direct/flush USB-C connection The portable docking station features DP 1.4 support from the host side and supports a single HDMI monitor resolution up to 4K 60Hz (4096 x 2160p), when connected to devices that support DP 1.4, to create a powerful workstation.
Technical Features
- Functionality: 5-in-1 USB-C multiport adapter with DP 1.4 Alt Mode; supports up to 4K 60Hz HDMI 2.0 (HDR) video, 2-Port USB-A hub (1x BC1.2 fast charge), TRRS audio for headset/mic, and 1x USB-C (Data + Power Delivery 3.0)

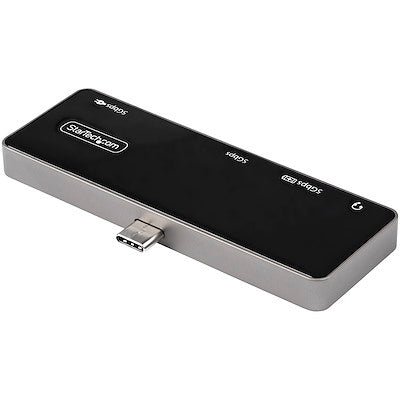

- Host Connection: Built-in, center-positioned USB-C connector for flush, cable-free connection to iPad Pro, Surface Pro 7, Google Pixelbook, and other USB-C tablets, Chromebooks, and laptops
- Performance: USB bus powered or via external USB-C power adapter; 100W PD 3.0 pass-through with 8W reserved for adapter; up to 92W for laptop charging
- Portability: Compact and portable design for transport or on-the-go use; can remain connected to laptop
- Operating System Compatibility: Automatic driver installation; supports Windows, macOS, iPadOS, Chrome OS
