StarTech USB to RS232 Serial Adapter

StarTech USB to RS232 Serial Adapter

Regular price £16.33 GBP
Sale price: £16.33 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Cost-effective
  • Connected directly
In stock, 3 units
EAN: 65030840453
SKU: V209033
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Operating Temperature: 0°C to 70°C (32°F to 158°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Humidity: 5~85% RH
  • Ports: 1
  • Interface: Serial
  • Bus Type: USB 2.0
  • Port Style: Cable Adapters
  • Chipset ID: Prolific - PL2303GC
  • 1 - 3ft USB to RS232 Cable
  • 1 - DB9 to DB25 Serial Adapter
  • 1 - Driver CD
  • 1 - Manual

Overview

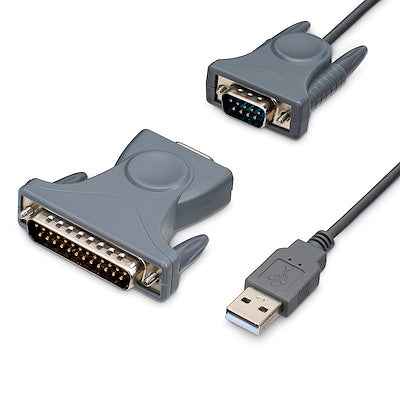

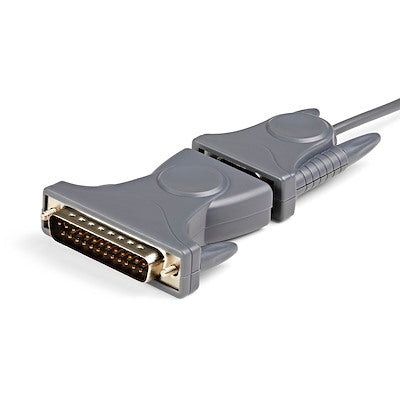

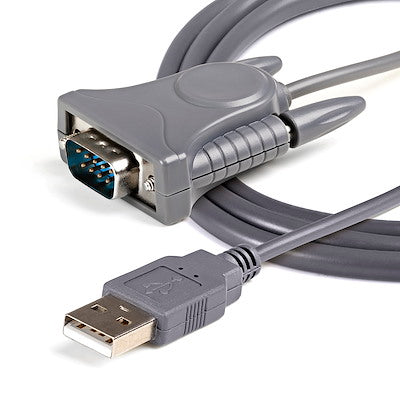

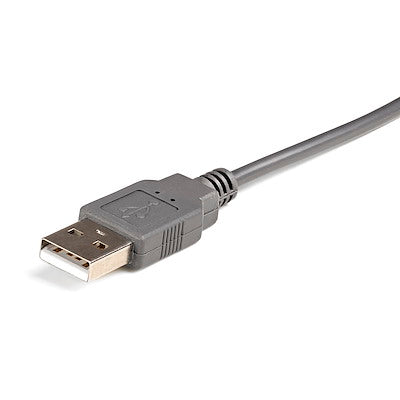

The ICUSB232DB25 USB to RS232 DB9/DB25 Serial Adapter Cable (M/M) lets you connect 9-pin (DB9) or 25-pin (DB25) RS232 serial devices to your laptop or desktop computer through a USB port, as though the computer offered an onboard serial port. The integrated 3-foot (0.9 meter) cable allows it to be connected directly from the serial device to the computer without requiring additional cables. A cost-effective solution that bridges the compatibility gap between modern computers and legacy serial peripherals, this high quality USB/RS232 Serial Adapter cable ships with a DB-9 to DB-25 adapter for connection to varied serial equipment.

Technical Features

  • USB to Serial: Connect RS232 (DB9 or DB25) devices to a computer; secure cable with screw-lock nuts on the male DB9/DB25 connector; 3ft (91cm) cable length
  • Device Compatibility: Works with barcode readers/scanners, network switches, receipt printers, PLCs, medical devices, oscilloscopes, scales, and more
  • Applications: Ideal for IT, server rooms, industrial control/automation, logistics, POS, AV installations, laboratories; allows legacy hardware to connect to modern systems
  • USB to Serial Adapter Specs: 3ft (91cm) cable; max baud 230.4 Kbps; 512 Byte FIFO; supports Windows, macOS, and Linux; Prolific PL2303GC Chipset; supports Odd/Even/Mark/Space/None parity modes; 4/5/6/7/8 data bits
