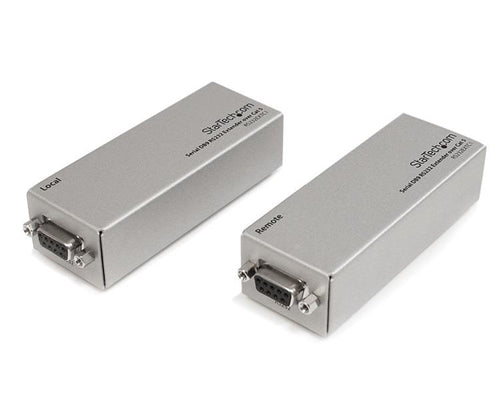

StarTech Serial Extender over Cat 5

StarTech Serial Extender over Cat 5

£106.99 GBP
Sale price: £106.99 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Full-duplex data communication
  • Compact design
Out of stock
EAN: 65030842396
SKU: V240011
Vendor: StarTech
Order within xx hours for delivery on
Quantity

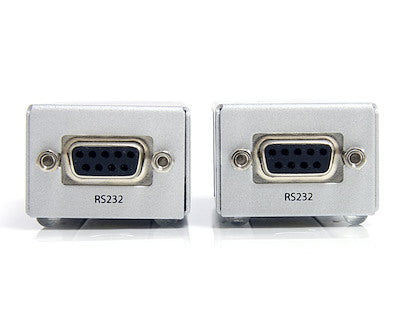

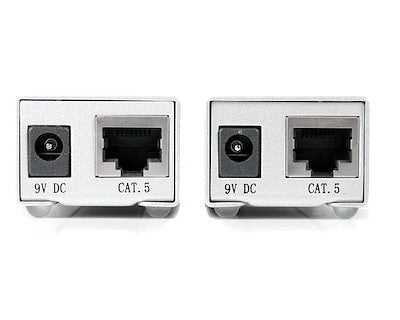

  • Local Unit Connectors: 1 x DB-9 (9 pin, D-Sub), 1 x RJ-45
  • Remote Unit Connectors: 1 x RJ-45, 1 x DB-9 (9 pin, D-Sub)
  • Operating Temperature: 0°C to 70°C (32°F to 158°F)
  • Storage Temperature: 0°C to 85°C (32°F to 185°F)
  • Humidity: 0% to 95%

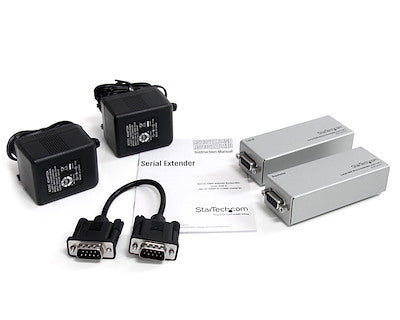

  • 1 - RS232 Extender Local Unit
  • 1 - RS232 Extender Remote Unit
  • 1 - 20cm Null Modem cable (DB-9 Male to Male)
  • 2 - Power Adapter
  • 1 - User Manual

Datasheet

Overview

The RS232EXTC1GB Serial over Cat 5 Extender allows you to increase the distance of your RS232 Serial connection by up to 1000 meters (3300 feet), giving you the ability to connect serial peripheral devices up to a kilometer away from your system - an incredible 65x greater than normal RS232 serial cable length restrictions would permit. The Extender is a cost-effective serial extension solution and completely hardware-based, eliminating the need to install additional software, allowing for a completely plug and play installation. The hardware can be setup in minutes, using existing or new Cat 5 or better Ethernet cabling.

Technical Features
  • RS232 Extension: Extend RS232 up to 1000m (3300ft)
  • Data Transfer Rate: Up to 230 Kbps
  • Compatibility: Works with all RS232 communications
  • Infrastructure: Uses existing Cat5, 5e, 6 or better Ethernet for remote serial connections
  • Full-Duplex Support: Enables full-duplex data communication
  • Design: Compact
  • Installation: No drivers required; Plug-and-Play
