StarTech.com SATA to IDE HD Adapter

StarTech.com SATA to IDE HD Adapter

£22.34 GBP
Sale price: £22.34 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Durable design
  • Metal construction
Out of stock
EAN: 65030843393
SKU: V209372
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Weight of Product: 3.7 oz [106.0 g]
  • Color: Black
  • Material: Steel
  • Product Length: 4.0 in [10.1 cm]
  • Product Width: 3.1 in [8.0 cm]
  • Product Height: 1.0 in [2.5 cm]

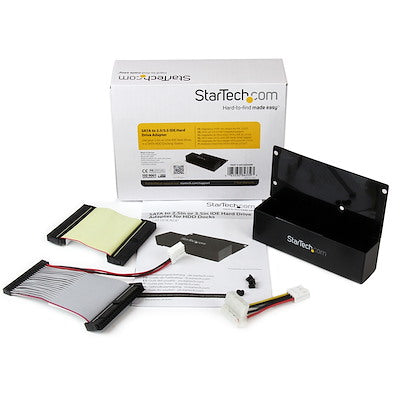

  • 1 - SATA to IDE adapter
  • 1 - 40-pin IDE cable
  • 1 - 40-pin to 44-pin IDE cable with power
  • 1 - SP4 to LP4 Power cable
  • 1 - Package of mounting screws
  • 1 - Instruction Manual

Datasheet

Overview

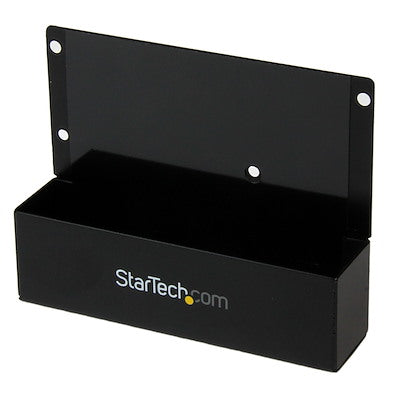

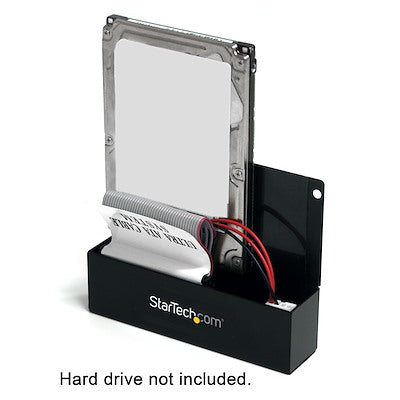

The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators. The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps). The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA. The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators.

Technical Features
  • Supports 40-pin (3.5in) and 44-pin (2.5in) IDE hard drives
  • Durable, metal construction
  • Compatible with most 3.5in StarTech.com SATA hard drive docking stations and duplicators
  • Large capacity hard drive support, with 48-bit LBA
  • Compliant with SATA revision 1.0
  • Compatible with PATA (IDE) 66/100/133 MBps hard drives
  • Mounting holes for both 2.5in and 3.5in form factor IDE hard drives
