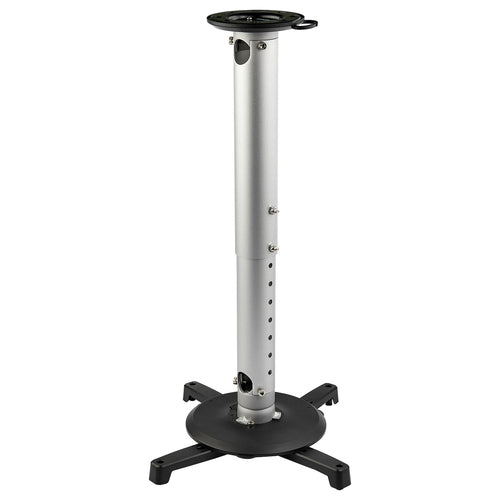

StarTech.com Projector Mount

StarTech.com Projector Mount

£107.39 GBP
Sale price: £107.39 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Heavy-duty Steel
  • Up to 22.7” Extension from Ceiling
In stock, 2 units
EAN: 65030884136
SKU: 10286343
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Minimum Arm Extension: 127.7 mm [5.0 in]
  • Maximum Arm Extension: 705 mm [27.8 in]
  • Product Height: 35.2 cm [13.9 in]
  • Product Length: 35.2 cm [13.9 in]
  • Weight of Product: 2.2 kg [4.9 lb]
  • Product Width: 57.8 cm [22.7 in]
  • Color: Black & Silver
  • Material: Steel
  • 1 - Ceiling Bracket
  • 1 - Projector Plate
  • 1 - Projector Plate Cover
  • 1 - Upper Pole
  • 1 - Lower Pole
  • 1 - Ball Joint Mechanism
  • 4 - Wall Anchors
  • 4 - Mounting Screws
  • 4 - Mounting Arms
  • 4 - Mounting Arm Covers
  • 1 - 5mm Hex Key
  • 4 - M3 x 24 mm Screws
  • 4 - M4 x 24 mm Screws
  • 4 - M5 x 24 mm Screws
  • 7 - M6 X 12 mm Screws
  • 4 - M6 x 24 Screws
  • 2 - M6 x 65 mm Screws
  • 4 - Washers
  • 6 - Nuts
  • 1 - User Manual

Datasheet

Overview

This projector ceiling mount kit lets you easily install a projector from 5" to 22.7" (127.7 to 577.7 mm) away from the ceiling. It’s ideal for classrooms, boardrooms, hospitality venues, and many other meeting spaces.Supporting a wide range of projector brands, the universal projector ceiling mount features a universal mounting pattern of 12.8" (325 mm) diameter.  After the projector ceiling mount is installed, you can fine-tune the angle for optimum viewing. The locking ball join on the projector mount provides 360-degree swivel, +/- 25 degree horizontal/vertical tilt.

Technical Features
  • Height Adjustable: Ceiling projector mount can be positioned at 5" from ceiling (low profile) or between 15.8" & 22.7" from ceiling (using extendable telescopic pole); Supports up to 33.3lb (15kg)
  • Optimum Viewing Angle: Projector ceiling mount with ball joint design offers 360° rotation & +/- 25° tilt in any direction; Accessible lock switch allows the user to single-handedly secure projector
  • Thoughtful Design: Projector plate/bracket has 4 arms with a universal mounting pattern of up to 12.8" (325mm) in dia. for projectors w/ 3 or 4 mounting holes; Heavy duty steel & aluminum construction
  • Universal Compatibility: Hanging projector mount compatible w/ projectors from brands like BenQ, Acer, Optoma, Eiki, Hitachi, Sanyo, NEC, Epson, Sony, LG & Dell among others (several screw sizes incl)
