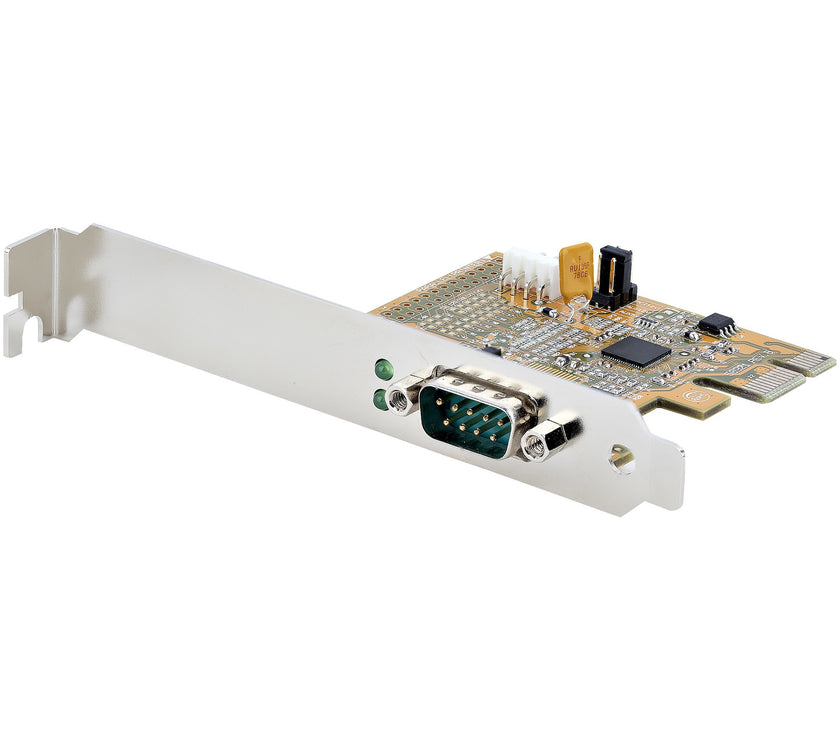

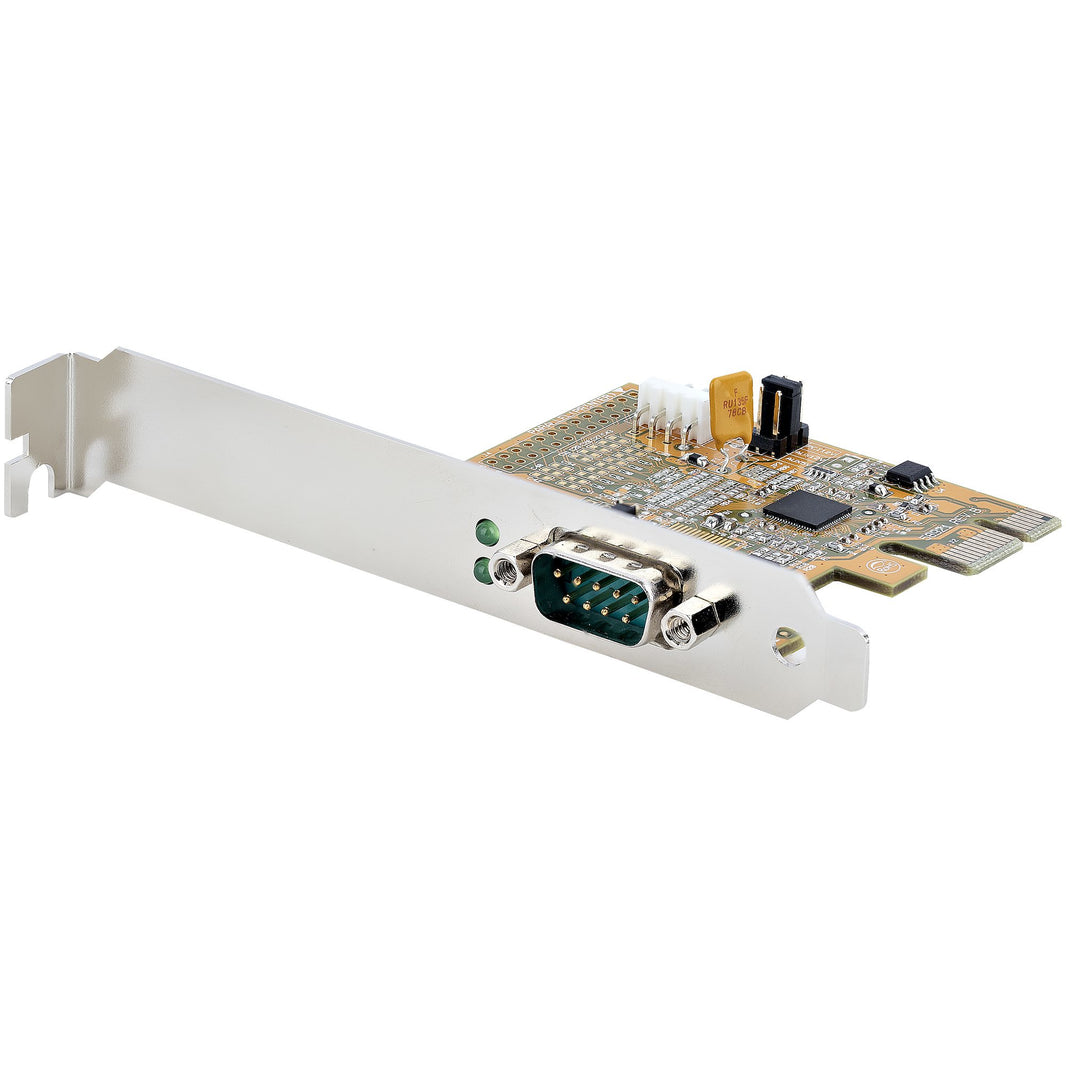

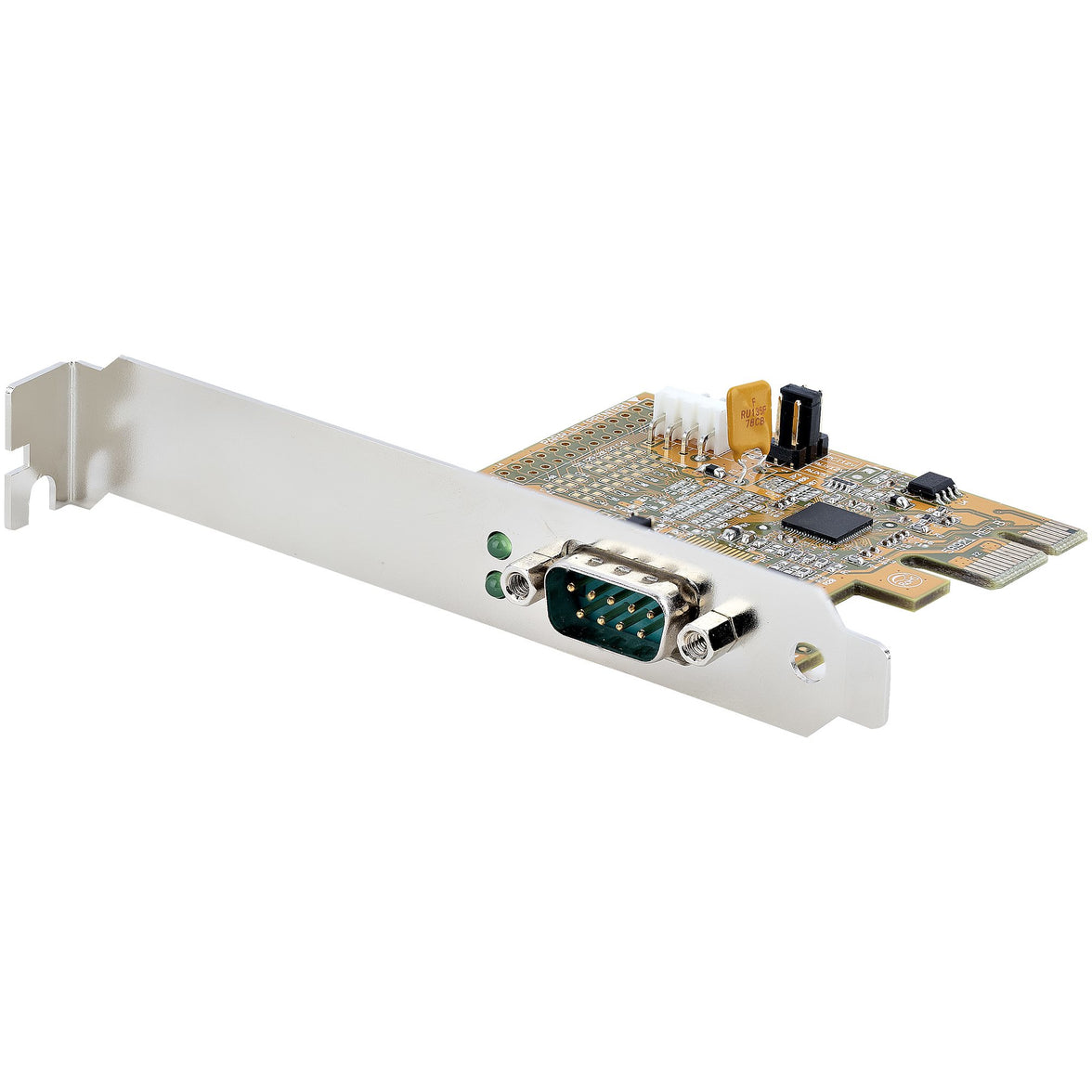

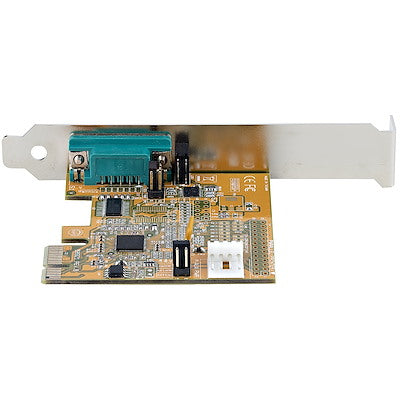

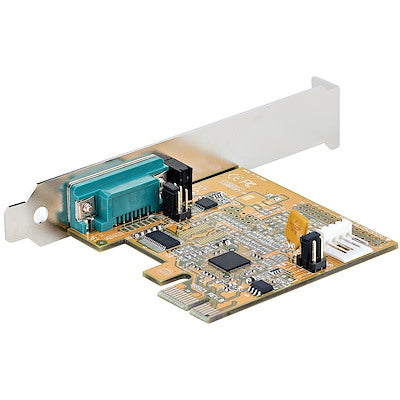

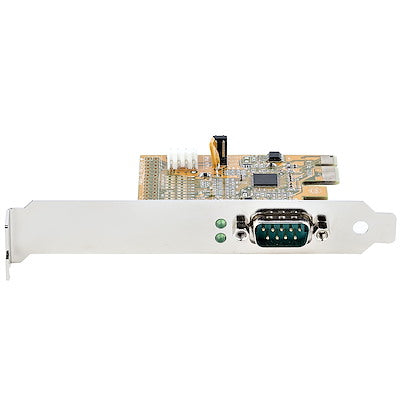

StarTech.com PCIe Serial Card

StarTech.com PCIe Serial Card

£45.68 GBP
Sale price: £45.68 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Low-profile Bracket
  • COM Retention
Out of stock
EAN: 65030894777
SKU: V295456
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Ports: 1
  • UART: 16C1050
  • Maximum Baud Rate: 921.6 Kbps
  • FIFO: 256 Byte
  • COM Retention: Yes
  • OS Support: Windows and Linux
  • Chipset: Asix AX99100
  • Parity Modes: Odd/Even/Mark/Space/None
  • Data Bits: 5/6/7/8/9
  • Interface: PCIe 2.0 x1
  • Bracket: Low-profile bracket included
  • 1 - PCIe Serial Card
  • 1 - Low-Profile Bracket
  • 1 - Quick-Start Guide

Datasheet

Overview

Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device. Install this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.

Technical Features
  • PCIe to Serial: Connect a serial RS232 (DB9) device to a computer; Features support for high performance 16C1050 UART; Built-in LED status lights for activity monitoring
  • Device Compatibility: Connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc.; Supplies 5V or 12V power over pin 9; Low-profile bracket included
  • Applications: Ideal for server rooms, industrial control/automation, logistics, and laboratories; Allows continued use of legacy hardware; DB9 port accepts screw locking serial cables
