StarTech PCI Express FireWire Card

StarTech PCI Express FireWire Card

£59.03 GBP
Sale price: £59.03 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Plug-and-Play
  • Hot-swap compatible
In stock, 18 units
EAN: 65030837897
SKU: V209603
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Connector Type: 1 - PCI Express x1
  • Internal Ports: 1 - LP4 (4 pin, Large Drive Power)
  • External Ports: 1 - FireWire 400 (6 pin, IEEE 1394a), 2 - FireWire 800 (9 pin, IEEE 1394b)
  • Operating Temperature: 0°C to 70°C (32°F to 158°F)
  • Storage Temperature: -20°C to 90°C (-4°F to 194°F)
  • Humidity: 0~90% RH
  • Ports: 3
  • Interface: FireWire 800 (1394b), FireWire 400 (1394a)

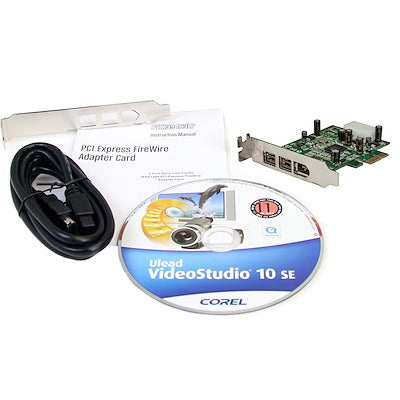

  • PCI Express FireWire Card
  • FireWire Cable
  • Full Profile Bracket
  • Software CD
  • Instruction Manual

Datasheet

Overview

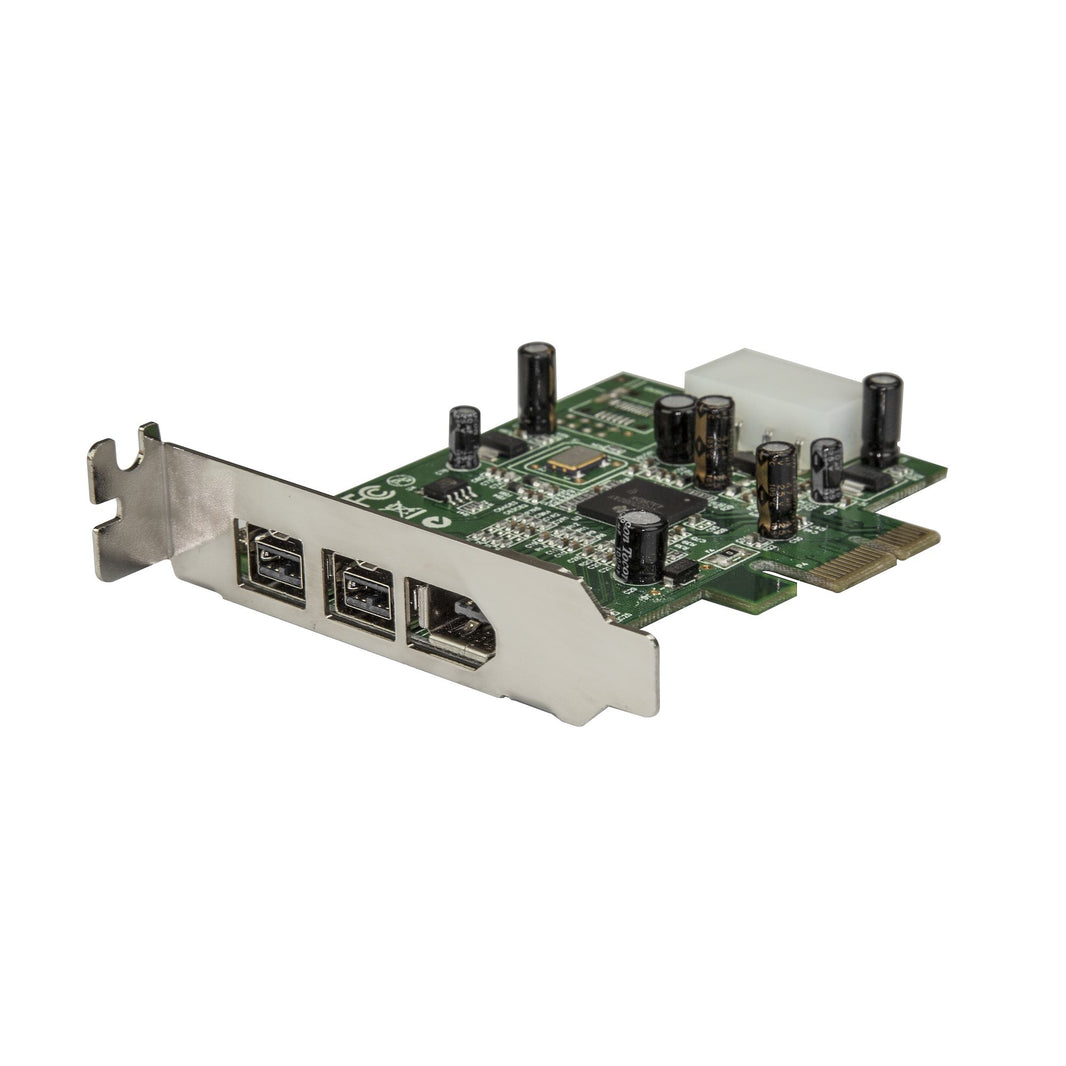

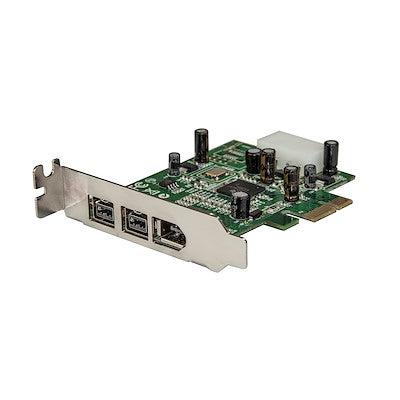

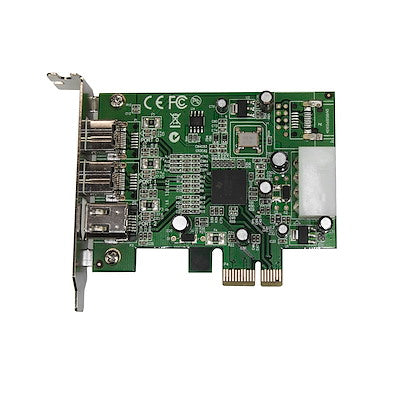

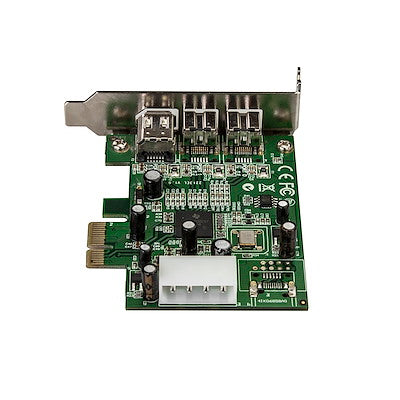

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case. The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.). The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.

Technical Features
  • FireWire 800 Ports: Two 9-pin ports with transfer rates up to 800 Mbps
  • FireWire 400 Port: One 6-pin port with transfer rates up to 400 Mbps
  • Installation: Includes full/standard profile bracket
  • Chipset: Native PCI Express chipset, no bridge chip
  • Power: Internal connector for high-powered FireWire devices
  • Standards Compliance: IEEE 1394b; backward compatible with IEEE 1394a-2000 and 1394-1995
  • Compatibility: Plug-and-play and hot-swap compatible
