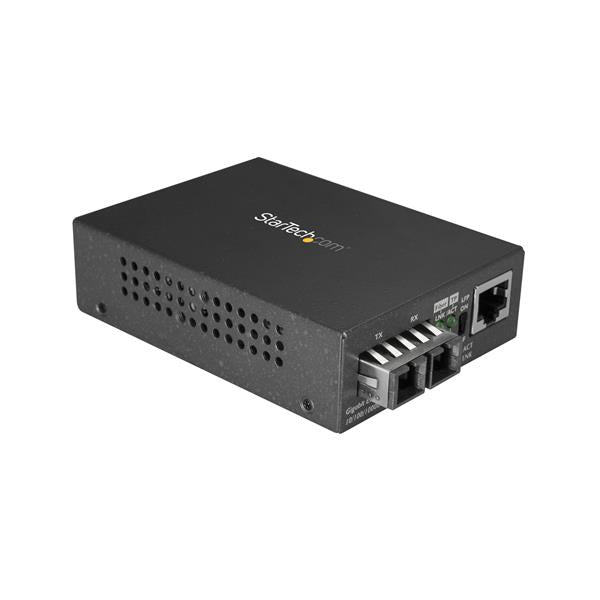

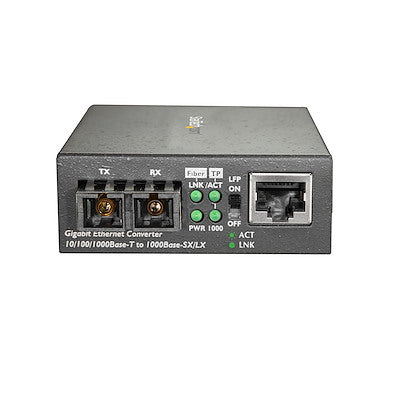

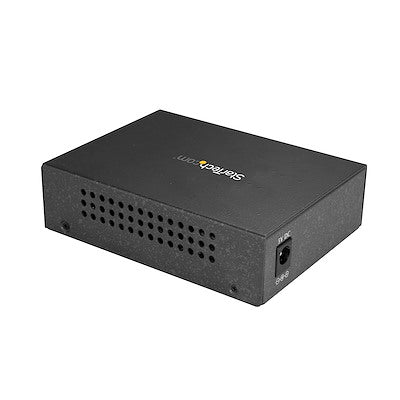

StarTech Fiber Media Converter - SM

StarTech Fiber Media Converter - SM

£78.64 GBP
Sale price: £78.64 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • LED Indicators
  • Single-mode fiber
In stock, 2 units
EAN: 65030878241
SKU: V209735
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Max Distance: 10 km (6.2 mi)
  • Local Unit Connector: 1 × RJ-45
  • Remote Unit Connector: 1 × Fiber Optic SC Duplex
  • Operating Temperature: 0°C to 50°C (32°F to 122°F)
  • Storage Temperature: -10°C to 70°C (14°F to 158°F)
  • Humidity: 5 ~ 90% RH
  • PoE: No
  • WDM: No

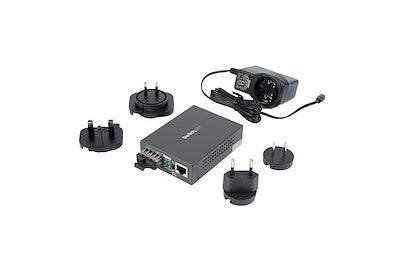

  • 1 - media converter
  • 1 - universal power adapter (NA/JP, UK, EU, ANZ)
  • 1 - quick-start guide

Datasheet

Overview

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks. The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Technical Features
  • Function: Converts and extends Gigabit Ethernet (1000 Mbps) up to 10 km over single-mode fiber (1000BASE-LX)
  • Cost-Effective Link: Ethernet to fiber / copper to fiber connectivity
  • Distance: Up to 10 km over single-mode duplex fiber (SC connection)
  • Design: Compact and wall-mountable
  • Performance: Non-blocking full wire-speed forwarding rate
  • Control: DIP switch supports Link Fault Pass-through
  • Monitoring: LED indicators for Ethernet/fiber link status
  • Wavelength: 1310 nm
  • VLAN Support: IEEE 802.1q Tag VLAN pass-through
