StarTech.com Composite S-Video to VGA

StarTech.com Composite S-Video to VGA

£154.72 GBP
Sale price: £154.72 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Plug & Play installation
  • On-Screen Display
Out of stock
EAN: 65030844345
SKU: 10013408
Vendor: StarTech
Order within xx hours for delivery on
Quantity

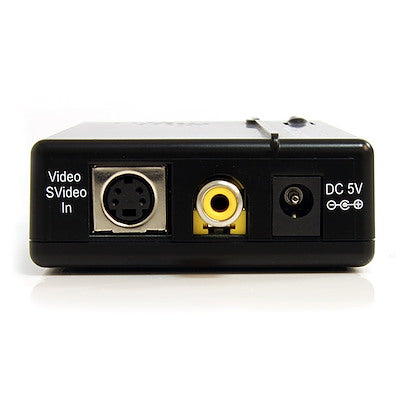

  • Connector A: 1 - Composite Video (1 x RCA), 1 - S-Video (4 pin, Mini-DIN)

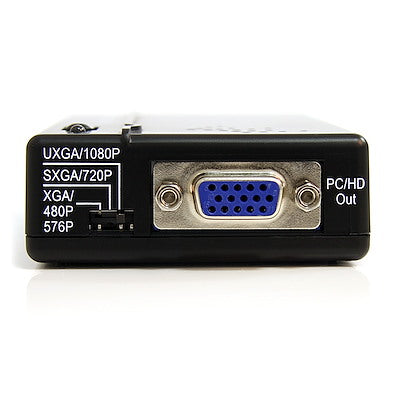

  • Connector B: 1 - VGA (15 pin, High Density D-Sub)
  • Operating temperature: 0°C to 40°C (32°F to 104°F)
  • Storage temperature: 0°C to 60°C (32°F to 140°F)
  • Humidity: 0~60% RH
  • 1 - Video Converter/Scaler
  • 1 - VGA to Component (RCA) breakout cable
  • 1 - Universal Power Adapter
  • 1 - Instruction Manual

Datasheet

Overview

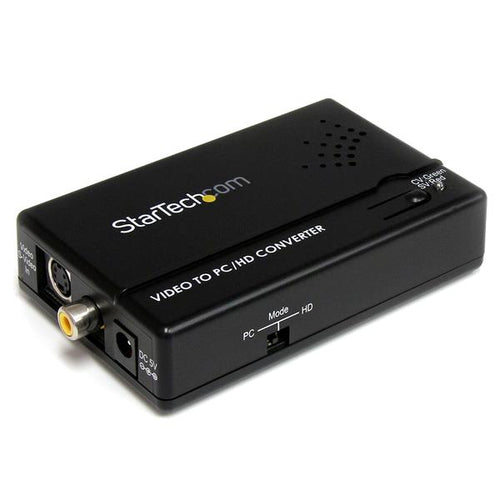

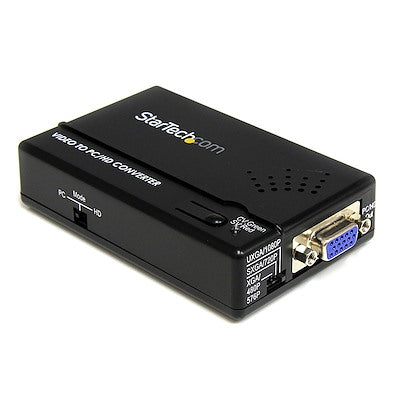

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector.

Technical Features
  • Function: Convert and scale Composite/S-Video input to VGA/Component output
  • Input formats: Accepts NTSC and PAL
  • On-Screen Display: Simple output setting selection
  • Included adapter: VGA to Component (YPbPr) RCA Adapter
  • Frame rate conversion: 50 Hz to 60 Hz
  • Installation: Plug & Play, no drivers or software required
