StarTech.com 4Port SATA PCIe Card

StarTech.com 4Port SATA PCIe Card

£44.44 GBP
Sale price: £44.44 GBP Regular price: £0.00 GBP
(VAT Incl.)
Shipping calculated at checkout.
  • Plug-and-play setup
  • Supports storage management
Out of stock
EAN: 65030893879
SKU: 10356183
Vendor: StarTech
Order within xx hours for delivery on
Quantity
  • Connector Type: 1 × PCI Express x2
  • Internal Ports: 4 × SATA (7 pin, Data)
  • Operating Temperature: 0°C to 85°C (32°F to 185°F)
  • Storage Temperature: -25°C to 85°C (-13°F to 185°F)
  • Humidity: 20~80% RH
  • Total Ports: 4
  • Interface: SATA
  • Bus Type: PCI Express
  • Card Type: Standard Profile (Low-profile bracket included)
  • 1 - PCIe SATA Card
  • 1 - Full-Profile Bracket (Installed)
  • 1 - Low-Profile Bracket
  • 1 - Quick-Start Guide

Datasheet

Overview

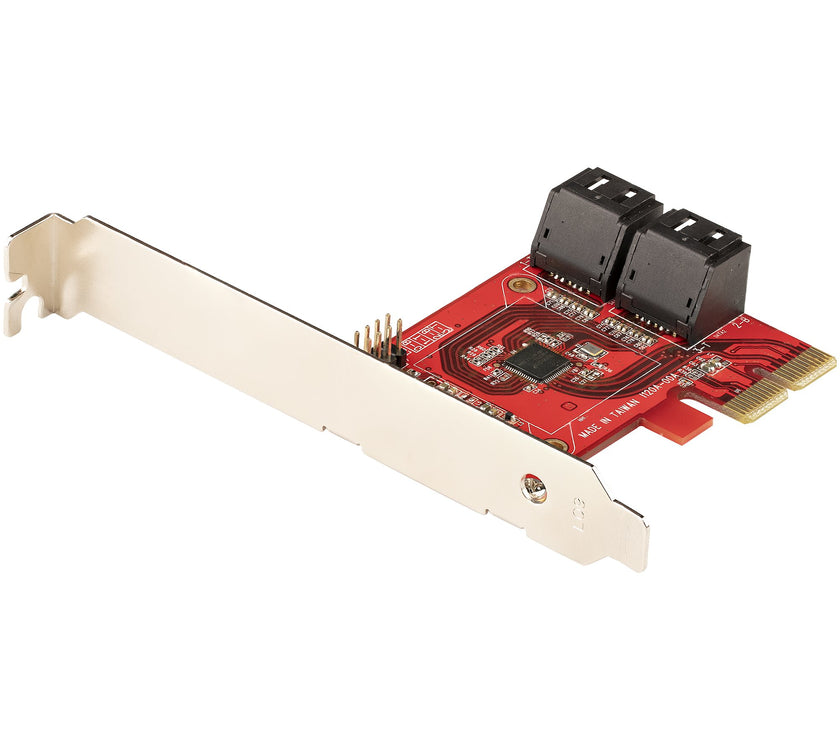

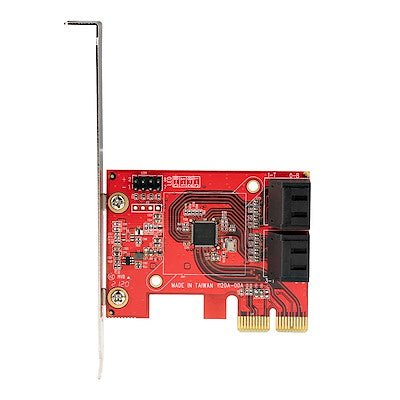

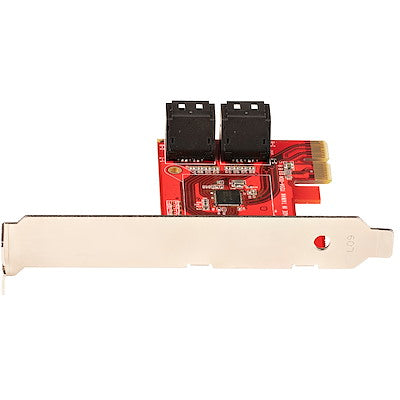

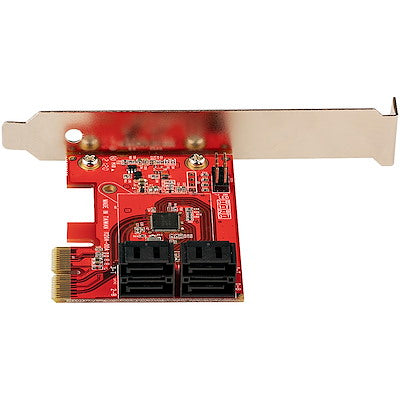

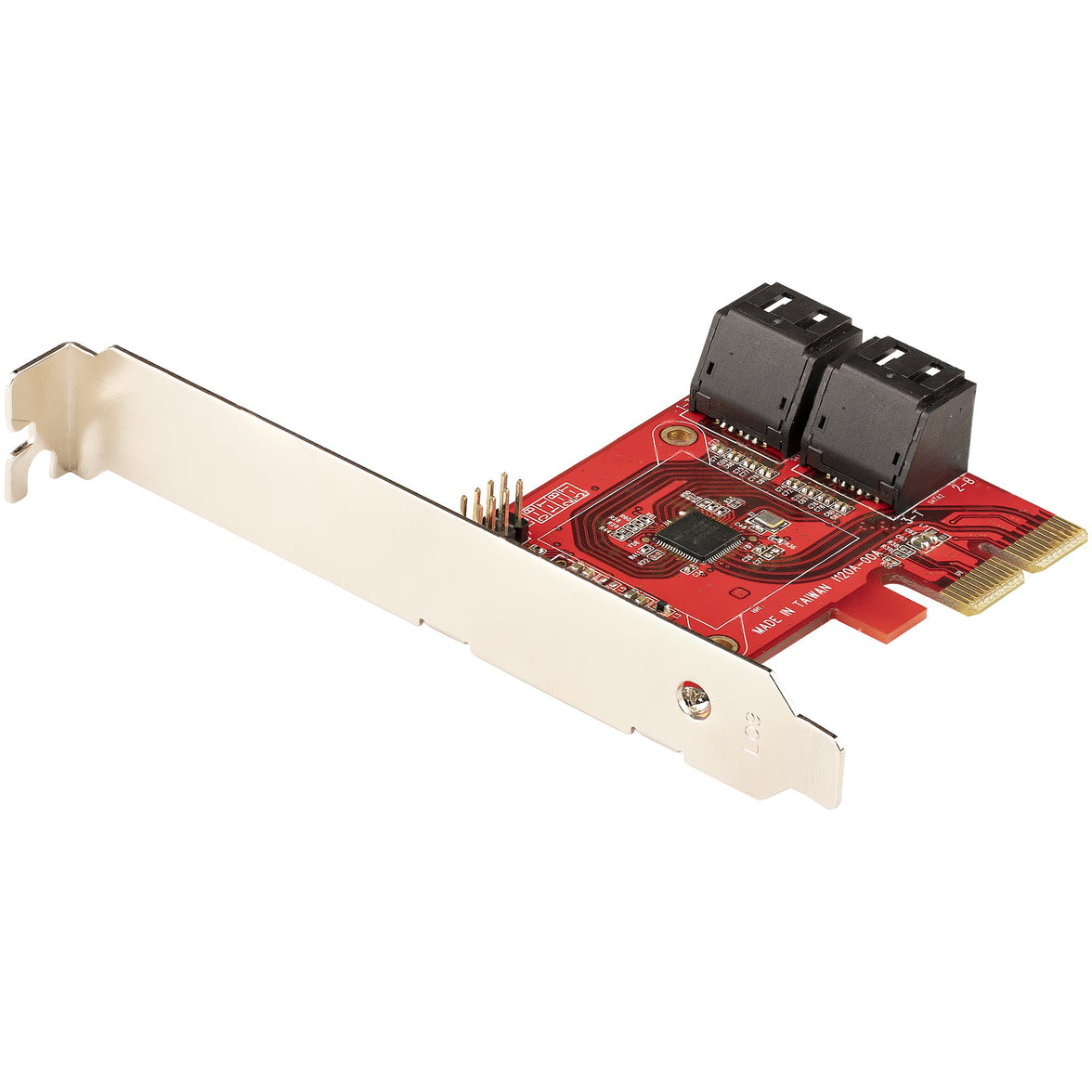

This 4-port SATA III (6Gbps) controller enables you to add four SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 3.0 Specifications. Featuring the ASM1164 controller, this SATA card enables the connection of four high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via four individual SATA ports located on the card (SATA cables sold separately).

Technical Features
  • High-Performance: Adds 4 SATA III 6Gbps ports via PCIe x2 slot for HDD/SSD drives (SATA cables sold separately)
  • ASM1164 Controller: Single-chip design supports 4 SATA 6Gbps ports, total bandwidth up to 16Gbps, supports Port Multiplier & NCQ
  • Compatibility: Supports PCIe 3.0, SATA 3.2, AHCI 1.4, Windows 7+, macOS 10.10+, Linux 2.6.32+, ATA & ATAPI drives
  • Easy Install: Plug-and-play in full or low-profile PCIe slot; includes full-profile bracket and low-profile bracket; supports Storage Spaces, RAID Assistant, mdraid/mdadm
